High Quality PE Series Jaw Stone Crusher Machine For Mining Quarry Plant
High Quality PE Series Jaw Stone Crusher Machine For Mining Quarry Plant
Specifications
Brand Name :
JINMA
Model Number :
Jaw Crusher
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Price :
US$ 2500-30000/piece
Payment Terms :
T/T
Delivery Time :
one month
Packaging Details :
Standard shipping packaging
type :
Jaw Crusher
name :
PE Series Jaw Stone Crusher Machine For Mining Quarry Plant
purpose :
Mine Processing
apply to :
Mining Quarry Plant
Model :
Stone Crusher Machine
Quality :
Professional Manufacture
Outlet Size :
40-100mm
Description

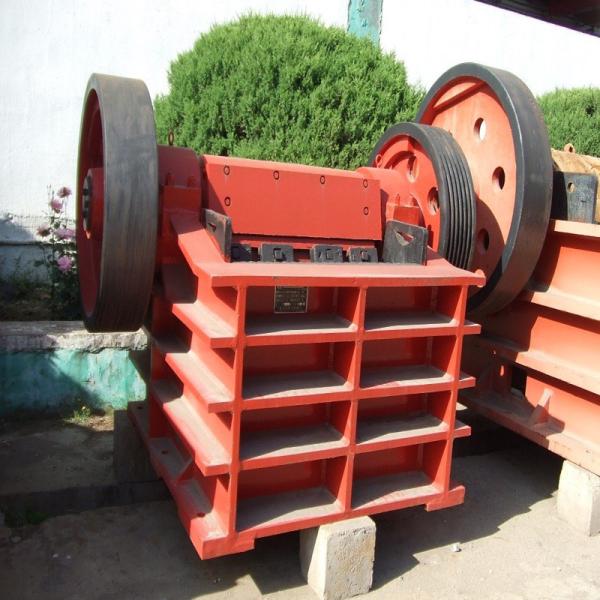

PE Series Stone Jaw Crusher Machine for Mining Quarry Plant

Characteristic And Uses
This machine adopts newest standard which optimized designed by the computer. And enjoys the advantages of simple structure, high yield, low energy convenient use, etc And it is the present domestic most advanced type suitable for various mineral and rock for rough and middle crush work with the compressive strength below 250 Mpa.

Name PE Series Jaw Stone Crusher Machine For Mining Quarry Plant
Attributes Stone Crusher Machine
Model Jaw Stone Crusher

High Quality PE Series Jaw Stone Crusher Machine For Mining Quarry Plant

Advantages

1. Low noise and less dust.

2. The crushing ratio is large and the product size is uniform.

3. Simple structure, reliable work and low operating cost.

4, The lubrication system is safe and reliable, easy to replace parts, simple equipment maintenance.

5. The crushing chamber is deep and no dead zone, which improves the feeding capacity and output.

6. Large adjustment range of discharge port can meet the requirements of different users

Technical Specifications and Performance

Basic parameters Inlet port width mm Inlet port length mm Maximum feeding size mm Discharge port adjustment range mm Production capacity t/h Motor Power kw Machine Weight t Dimensions mm
PE250x400 250 400 210 20-60 4-14 15 3 1450X1350X1400
PE250X500 250 500 210 20-60 5-16 18.5 4.1 1320x1400x1320
PE400X600 400 600 340 35-85 8-25 30 6.95 1700x1800x1650
PE500X750 500 750 425 50-100 30-70 55 10.5 2118x1962x1843
PE600X900 600 900 500 75-125 40-100 75 20 2600x2180x2325
PE750X1060 750 1060 630 80-140 80-180 95 25.5 2550x2322x3110
PE900X1200 900 1200 750 95-165 200-290 110 49.5 3110x3026x3280
PE1200x1500 1200 1500 950 160-280 300-500 200 88 4590x3272x4033
PEX150X750 150 750 120 15-45 5-14 15 3 1194x1531x1089
PEX250X750 250 750 210 25-60 8-15 30 4.98 1520x1750x1270
PEX250X1000 250 1000 210 25-60 10-25 30 6.34 1530x1992x1380
PEX250X1200 250 1200 210 20-60 30-52 45 9.5 2300x2120x1500


Note
Productivity affected by the granularity and hardness of the material to be broken. The greater the granularity and hardness are, the lower the output is. Or, on the contrary, The productivity index above is just for reference by users.

Company introduction

Tangshan Mine Machinery Factory is a specialized manufacturer that produces complete sets of equipment for metallurgy, mining, building materials, environmental protection, as well as the design and manufacture of complete sets of sand and gravel materials, and the design and manufacture of dry tailings discharge. The company was founded in 1971 and turned into a joint-stock enterprise in 1997.

Various processing and testing equipment: 8 meters, 5 meters, 4 meters vertical lathes, 8 meters, 5 meters, 3.15 meters gear hobbing machine, 6 meters planer, precision boring machine, medium frequency quenching and other larger processing equipment and automatic welding, ultrasonic welding More than 300 sets of flaw detectors, W15-23 material testing machines, aging vibration devices, etc.

High Quality PE Series Jaw Stone Crusher Machine For Mining Quarry PlantHigh Quality PE Series Jaw Stone Crusher Machine For Mining Quarry Plant

FAQ to save your precious time!

Q1: Hi, are you a mining machinery manufacturer?
Answer: Yes, we are a professional manufacturer of mining machine. Our company welcomes customers to visit our factory at any time.

Q2: How long is the warranty period of your equipment? Does your company provide spare parts?
Answer: The warranty period of our machine is one year. For those wearing parts, we guarantee to provide high-quality parts for a long time.

Q3: How long does it take to deliver?

Answer: Production usually starts after receiving the advance payment. Small machine is guaranteed to be delivered within one month. Large-scale machine is guaranteed to be delivered within 2-3 months.

Q4: Do you provide machine operation guidance?

Answer: Yes. We have professional engineers for installation, commissioning and operation guidance.
