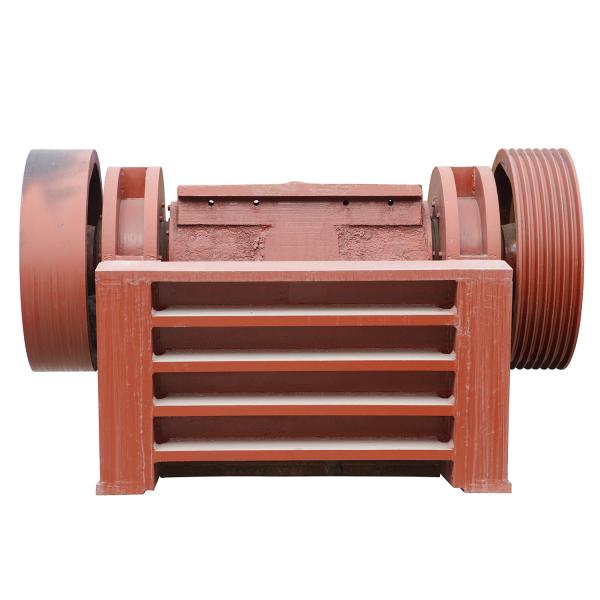

High Performance Pev Jaw Type Crusher for Stone Coarse Crushing
Characteristic And Uses
This machine adopts newest standard which optimized designed by the computer. And enjoys the advantages of simple structure, high yield, low energy convenient use, etc And it is the present domestic most advanced type suitable for various mineral and rock for rough and middle crush work with the compressive strength below 250 Mpa.
Working principle:
The belt and wheel of the machine are driven by the motor, and the moving jaw starts to move up and down from the eccentric shaft. When the moving jaw moves from top to bottom, the angle between the fixed jaw and the moving jaw becomes smaller, and the moving jaw plate deviates from the fixed jaw plate under the action of the pull rod and spring. At this time, the broken materials are discharged from the bottom outlet of the crushing chamber.
Name | High Performance Pev Jaw Crusher For Stone Coarse Crushing |
Purpose | Stone Coarse Crushing |
Keyword | High Performance Jaw Crusher |
Basic parameters | Inlet port width mm | Inlet port length mm | Maximum feeding size mm | Discharge port adjustment range mm | Production capacity t/h | Motor Power kw | Machine Weight t | Dimensions mm |
PE250x400 | 250 | 400 | 210 | 20-60 | 4-14 | 15 | 3 | 1450X1350X1400 |
PE250X500 | 250 | 500 | 210 | 20-60 | 5-16 | 18.5 | 4.1 | 1320x1400x1320 |
PE400X600 | 400 | 600 | 340 | 35-85 | 8-25 | 30 | 6.95 | 1700x1800x1650 |
PE500X750 | 500 | 750 | 425 | 50-100 | 30-70 | 55 | 10.5 | 2118x1962x1843 |
PE600X900 | 600 | 900 | 500 | 75-125 | 40-100 | 75 | 20 | 2600x2180x2325 |
PE750X1060 | 750 | 1060 | 630 | 80-140 | 80-180 | 95 | 25.5 | 2550x2322x3110 |
PE900X1200 | 900 | 1200 | 750 | 95-165 | 200-290 | 110 | 49.5 | 3110x3026x3280 |
PE1200x1500 | 1200 | 1500 | 950 | 160-280 | 300-500 | 200 | 88 | 4590x3272x4033 |
PEX150X750 | 150 | 750 | 120 | 15-45 | 5-14 | 15 | 3 | 1194x1531x1089 |
PEX250X750 | 250 | 750 | 210 | 25-60 | 8-15 | 30 | 4.98 | 1520x1750x1270 |
PEX250X1000 | 250 | 1000 | 210 | 25-60 | 10-25 | 30 | 6.34 | 1530x1992x1380 |
PEX250X1200 | 250 | 1200 | 210 | 20-60 | 30-52 | 45 | 9.5 | 2300x2120x1500 |
Company introduction
Tangshan Mine Machinery Factory is a specialized manufacturer that produces complete sets of equipment for metallurgy, mining, building materials, environmental protection, as well as the design and manufacture of complete sets of sand and gravel materials, and the design and manufacture of dry tailings discharge. The company was founded in 1971 and turned into a joint-stock enterprise in 1997.
Sincerely hope to reach friendly cooperation with you.
FAQ to save your precious time!
Q1: Hi, are you a mining machinery manufacturer?
Answer: Yes, we are a professional manufacturer of mining machine. Our company welcomes customers to visit our factory at any time.
Q2: How long is the warranty period of your equipment? Does your company provide spare parts?
Answer: The warranty period of our machine is one year. For those wearing parts, we guarantee to provide high-quality parts for a long time.
Q3: How long does it take to deliver?
Answer: Production usually starts after receiving the advance payment. Small machine is guaranteed to be delivered within one month. Large-scale machine is guaranteed to be delivered within 2-3 months.
Q4: Do you provide machine operation guidance?
Answer: Yes. We have professional engineers for installation, commissioning and operation guidance.
