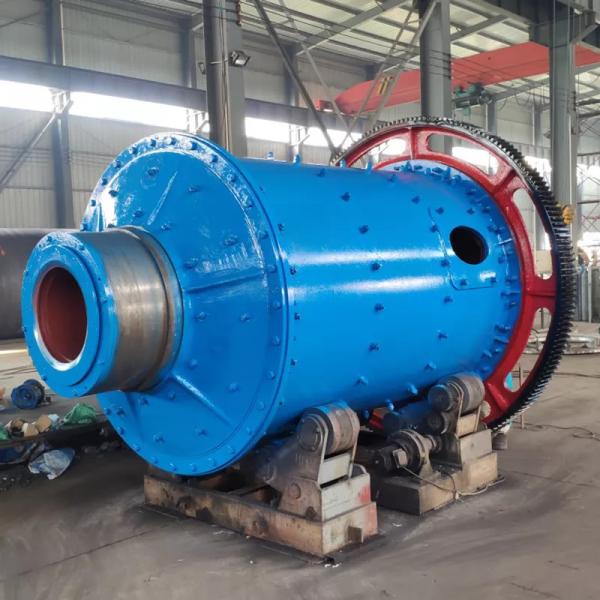

5t/H Mining Flotation Grinding Ball Mill Machine Wet And Dry
5t/H Mining Flotation Grinding Ball Mill Machine Wet And Dry
Specifications
Brand Name :
JINMA
Model Number :
cement mill
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Price :
US$ 2500-40000/piece
Payment Terms :
T/T
Delivery Time :
one month
Packaging Details :
Standard shipping packaging
type :
Wet and Dry Ball Mill
name :
Mining Flotation Machine Grinding Ball Mill / Wet and Dry Ball Mill
Model :
Wet and Dry
Attributes :
Mining Flotation Machine
Keyword :
Wet and Dry Ball Mill
Dimension(L*W*H): :
5300/1200/1100mm
Motor Type :
Motor
Description

Mining Flotation Machine Grinding Ball Mill / Wet and Dry Ball Mill

Application
Ball Mill is widely used for the dry or wet grinding of all kinds of ores and other grindable materials in the production industries of kaolin, quartz, feldspar, cement, silicate product, new building material, refractory, fertilizer, ferrous metal,non-ferrous metals and glass ceramic industry. etc.

Mill is essential and widely used equipment for raw material crushing. Its main component is a cylinder with bigger diameter and smaller length which is revolved by transmitting machinery. Materials are put in cylinder through the feed opening and then thoroughly grinded.

Name Mining Flotation Machine Grinding Ball Mill / Wet and Dry Ball Mill
Keyword Wet and Dry Ball Mill
Type Gold Mining Ball Mill

PARAMETER
Technical Specifications and Performance

Specification Production Capacityt/h Rotating speed
r/min		 Feed particle size Reducer Power
mm Models kw

MQ Φ 1.83x6.4 5-6 23.3 ≤ 20 ZD 60 210
MQ Φ 2.2x9.5 11-15 21.4 ≤ 20 ZD 80 475
x12 12-16 21.4 ≤ 20 ZD 80 570
MQ Φ 2.4x8 14-18 20.4 ≤ 20 ZD 110 475
x9 12-16 20.4 ≤ 20 ZD 110 570
x10 16-19 20.4 ≤ 20 ZD 110 630
x11 17-21 20.4 ≤ 20 ZD 110 630
x13 22-25 21.4 ≤ 20 ZD 110 800
MQ Φ 2.6x13 26-30 19.11 ≤ 20 ZD 110 1000
MQ Φ 3x13 33-37 19.36 ≤ 20 MBY 900 1400
MQ Φ 3.2x13 45-50 17.42 ≤ 20 MBY 1000 1600
MQ Φ 3.4x13 50-55 17.2 ≤ 20 JDX110 2000
MQ Φ 3.5x13 20-60 17 ≤ 20 JDX110 2000
MQ Φ 3.6x13 55-60 16.5 ≤ 20 JDX120 2240
MQ Φ 3.8x13 40-65 16 ≤ 20 JDX120 2500
MQ Φ 4.0x13 65-70 15.5 ≤ 20 DBS280 2800
MQ Φ 4.2x13 75-90 15 ≤ 20 MFY320 3150
MQ Φ 4.3x14 80-90 15 ≤ 20 MFYX360 3550

Delivery
We are based on the actual needs of customers, to carry out tailor-made sales. By senior engineer to design scheme, after receipt of customer deposits began production, regardless of the size of the equipment we can deliver the goods in two weeks, delivered the balance after delivery.
