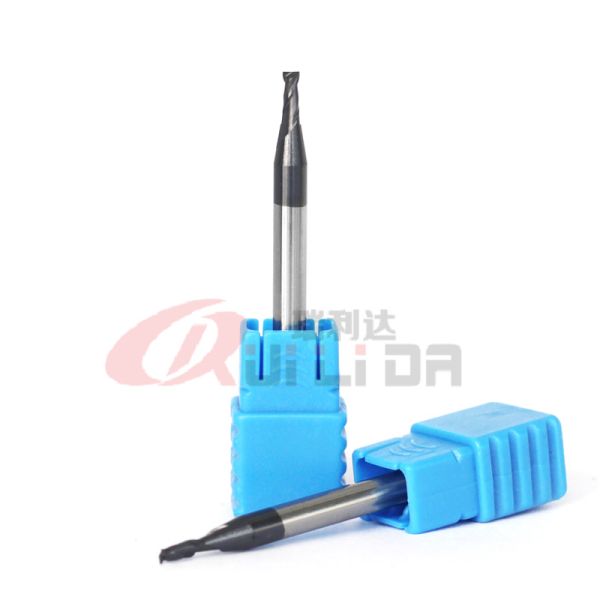

1mm 1/25 1/8 3/32 Solid Carbide End Mills For Cast Iron CNC Square Bottom
1mm 1/25 1/8 3/32 Solid Carbide End Mills For Cast Iron CNC Square Bottom
1mm 1/25 1/8 3/32 Solid Carbide End Mills For Cast Iron CNC Square Bottom
1mm 1/25 1/8 3/32 Solid Carbide End Mills For Cast Iron CNC Square Bottom
1mm 1/25 1/8 3/32 Solid Carbide End Mills For Cast Iron CNC Square Bottom
1mm 1/25 1/8 3/32 Solid Carbide End Mills For Cast Iron CNC Square Bottom
1mm 1/25 1/8 3/32 Solid Carbide End Mills For Cast Iron CNC Square Bottom
1mm 1/25 1/8 3/32 Solid Carbide End Mills For Cast Iron CNC Square Bottom
1mm 1/25 1/8 3/32 Solid Carbide End Mills For Cast Iron CNC Square Bottom
1mm 1/25 1/8 3/32 Solid Carbide End Mills For Cast Iron CNC Square Bottom
Specifications
Brand Name :
RLD Tools
Model Number :
HRC50-1
Place of Origin :
China
MOQ :
1
Price :
2USD/negotiable
Payment Terms :
T/T/PayPal/Credit Card
Supply Ability :
30000pcs/month
Delivery Time :
5-8 work days
Packaging Details :
One piece end mill in a plastic tube, ten pieces a bundle, then in carton.
Product :
HRC50 Carbide Square End Mill
Raw Material :
Carbide
Flutes :
4
Coating :
AlTiN
Helix :
35°
Diameter :
1mm
Flute length :
2.5mm
Overall length :
50
Shank dia :
4mm
Application :
Iron, cast iron, stainless steel, pre-hardended steel, etc
Description

Solid Carbide CNC Milling Cutter 1mm 4 Flutes Square End Mill For Steel With AlTiN Coating

Product name RLD HRC50 4 flutes square end mill
Feature Economic series
Suitable for Pre-hardened steel, stainless steel, iron, cast iron
Machine type CNC milling machine
Flutes 4
Coating AlTiN/Customized
Helix 35 degree
Co 10%
HRA 91.8
TRS Min(N/mm²) 4000
Tolerance Within 0/-0.02mm
Processing machine ANCA/

Carbide Raw Material Introduction

End mill grade Carbide rod Grain size HRA Application
HRC50 ZY10EF 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45
HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62

Coating Introduction

Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating also can be customized according to your requirement.

1mm 1/251mm 1/25

RLD HRC50 Square End Mill Standard Size
Flute Dia(mm) Overall Length(mm) Cutting Length(mm) Shank Dia(mm) Flutes
1 50 2.5 4 2/4
1.5 50 4 4 2/4
2 50 5 4 2/4
2.5 50 6.5 4 2/4
3 50 7.5 3 2/4
3 50 7.5 4 2/4
3.5 50 9 4 2/4
4 50 10 4 2/4
4 75 14 4 2/4
4 100 18 4 2/4
5 50 13 5 2/4
5 50 13 6 2/4
6 50 15 6 2/4
6 75 21 6 2/4
6 100 27 6 2/4
8 60 20 8 2/4
8 75 30 8 2/4
8 100 35 8 2/4
10 75 25 10 2/4
10 100 40 10 2/4
12 75 30 12 2/4
12 100 45 12 2/4
14 100 45 14 2/4
16 100 45 16 2/4
18 100 45 18 2/4
20 100 45 20 2/4
6 150 35 6 2/4
8 150 50 8 2/4
10 150 55 10 2/4
12 150 60 12 2/4
14 150 65 14 2/4
16 150 65 16 2/4
18 150 65 18 2/4
20 150 75 20 2/4

1mm 1/251mm 1/25

1mm 1/25

1mm 1/25

Feedback

1mm 1/25

1mm 1/25

1mm 1/25

FAQ

1. Are you a manufacturer or trading company?

We are a professional manufacturer of carbide tools which established in 2011.

2. Which CNC grinding machine do you use?

All of our carbide tools are produced by ANCA & machine.

3. Which shipping method do you usually use?

We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ETC.

For large amount, we can send by air or by sea.

We also can send products to your forwarder in China.

4. How about the delivery time?

For stock items, we can dispatch within 2 business days after receiving payment.

For the out-of-stock items, it depends on the quantity.

Usually is around 5-7 business days.

5. Which payment methods do you accept?

We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.

6. Do you attend international exhibitions?

Yes, we had attended exhibitions in Indonesia, India, Russia, Thailand, Vietnam,

Brazil, etc.

7. Can you produce special carbide tools?

Yes, we can produce special carbide tools according to your drawings or samples.

1mm 1/25
