4mm 3/8 4 Flute Carbide End Mill Bit 10mm Extra Long Series End Mill
4mm 3/8 4 Flute Carbide End Mill Bit 10mm Extra Long Series End Mill
4mm 3/8 4 Flute Carbide End Mill Bit 10mm Extra Long Series End Mill
4mm 3/8 4 Flute Carbide End Mill Bit 10mm Extra Long Series End Mill
Specifications
Brand Name :
RLD Tools
Model Number :
HRC55
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T/PayPal/Credit Card
Supply Ability :
100000pcs/month
Delivery Time :
5-8 business days
Packaging Details :
1pcs solid carbide end mill in a plastic tube, ten pieces a bundle, then put in carton.
Product Name :
HRC55 4 Flutes 10mm Solid Carbide End Mill
Flute Diameter :
10mm
Flute Length :
30mm
Overall Length :
75mm
Shank Dia :
10mm
Coating :
AlTiSiN
Material :
WF25
Origin :
Jiangsu, China
Description

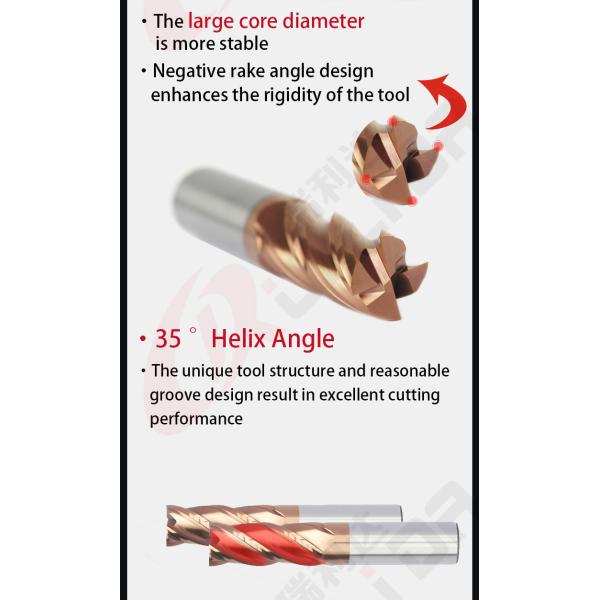

HRC55 4 Flute Solid Carbide End Mill Cutter for Steel 10mm Carbide End Mill

The advantages and properties of the aluminum-titanium-silicon-nitrite coating (AlTiSiN coating):

Aluminum-titanium-silicon-nitrite (AlTiSiN) is a combination of aluminum, titanium, silicon,and nitrogen.

This coating is intended for use when machining hard to very hard materials and therefore for

high machining temperatures. The AlTiSiN coating enables hardened, alloyed steels and cast iron

to be machined.

Product name RLD HRC55 8mm Carbide End Mill
Size 8*24*60*8D*4F
Suitable for Cast iron, alloy steel, hardened-steel under HRC50
Machine type CNC Side Milling
Flutes 4
Coating AlTiSiN
Helix angle 35°
Co 12%
HRA 92.2
TRS Min(N/mm²) 3800
Tolerance Within 0/-0.02mm
Processing machine ANCA or

Carbide Raw Material Introduction

End mill grade Carbide rod Grain size HRA Application
HRC50 YG10X 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45
HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62

Coating Introduction

Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating also can be customized

RLD HRC55 4F Square End Mill Standard Size
Flute Dia(mm) Overall Length(mm) Cutting Length(mm) Shank Dia(mm) Flutes
1 50 3 4 4
1.5 50 4.5 4 4
2 50 6 4 4
2.5 50 7.5 4 4
3 50 9 3 4
3 50 9 4 4
3.5 50 10.5 4 4
4 50 12 4 4
4 75 16 4 4
4 100 20 4 4
5 50 15 5 4
5 50 15 6 4
6 50 18 6 4
6 75 24 6 4
6 100 30 6 4
8 60 24 8 4
8 75 32 8 4
8 100 40 8 4
10 75 30 10 4
10 100 45 10 4
12 75 36 12 4
12 100 45 12 4
14 100 45 14 4
16 100 45 16 4
18 100 45 18 4
20 100 45 20 4
6 150 35 6 4
8 150 50 8 4
10 150 60 10 4
12 150 70 12 4
14 150 65 14 4
16 150 65 16 4
18 150 65 18 4
20 150 70 20 4

4mm 3/8

4mm 3/8

4mm 3/8

4mm 3/8

4mm 3/8

4mm 3/8

FAQ

1. Are you a manufacturer or trading company?

We are a professional manufacturer of carbide tools established in 2011.

2. Which CNC grinding machine do you use?

All of our carbide tools are produced by ANCA & machines.

3. Which shipping method do you usually use?

We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ARAMEX, ETC.

We also can dispatch the parcels to the forwarder in China.

4. How about the delivery time?

For stock items, we can dispatch within 2 business days after receiving payment.

For the out-of-stock items, it depends on the quantity.

Usually is around 5-7 business days.

5. Which payment methods do you accept?

We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.

6. Can you produce special carbide tools?

Yes, we can produce special carbide end mills according to your drawings or samples.

7. Do you have a discount for the large amount?
Yes, we have a discount for large quantities.


8. What kind of inspection facilities do you have.
We have PG1000 and Omega inspection facilities to check the precision of each tool.

9. Can you do OEM?
Yes, we can engrave your logo on the tool's shank and make customized stickers.
