3 Mm 12mm 6mm Tungsten Carbide End Mill Aluminum Milling Cutter CNC HRC50 3 Flute
3 Mm 12mm 6mm Tungsten Carbide End Mill Aluminum Milling Cutter CNC HRC50 3 Flute
3 Mm 12mm 6mm Tungsten Carbide End Mill Aluminum Milling Cutter CNC HRC50 3 Flute
3 Mm 12mm 6mm Tungsten Carbide End Mill Aluminum Milling Cutter CNC HRC50 3 Flute
3 Mm 12mm 6mm Tungsten Carbide End Mill Aluminum Milling Cutter CNC HRC50 3 Flute
3 Mm 12mm 6mm Tungsten Carbide End Mill Aluminum Milling Cutter CNC HRC50 3 Flute
3 Mm 12mm 6mm Tungsten Carbide End Mill Aluminum Milling Cutter CNC HRC50 3 Flute
3 Mm 12mm 6mm Tungsten Carbide End Mill Aluminum Milling Cutter CNC HRC50 3 Flute
3 Mm 12mm 6mm Tungsten Carbide End Mill Aluminum Milling Cutter CNC HRC50 3 Flute
3 Mm 12mm 6mm Tungsten Carbide End Mill Aluminum Milling Cutter CNC HRC50 3 Flute
Specifications
Brand Name :
RLD Tools
Model Number :
HRC50-12mm
Place of Origin :
China
MOQ :
1
Price :
13.0USD
Payment Terms :
T/T/PayPal/Credit Card
Supply Ability :
100000pcs/month
Delivery Time :
5-8 work days
Packaging Details :
1pcs piece of end mill in one plastic tube, 10pcs a bundle, then in a carton.
Product Name :
3 Flute 12mm Square End Mill for Aluminium
Flute Dia :
12mm
Flute Length :
36mm
Overall Length :
75mm
Shank Dia :
12mm
Flute Number :
3
Origin :
Jiangsu, China
Brand :
RLD
Description

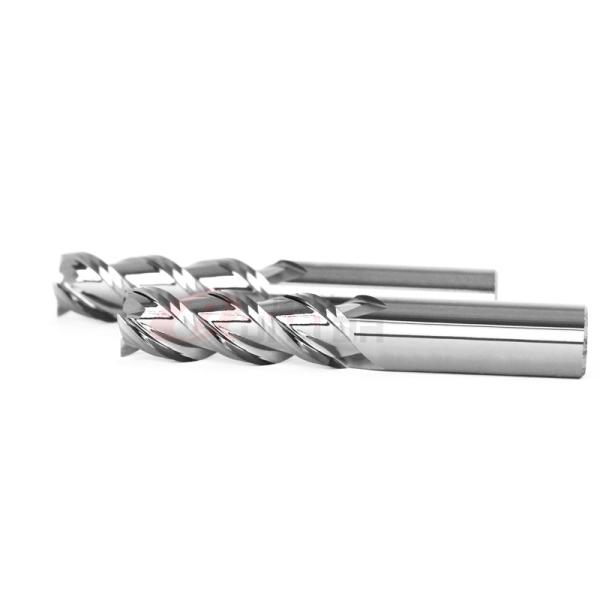

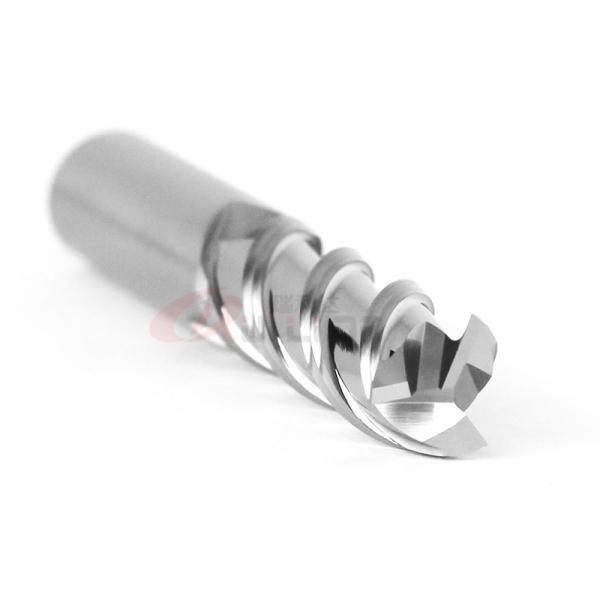

HRC50 CNC 3 Flute Solid Tungsten Carbide Endmills 12mm Milling Cutter for Alu

Product name RLD HRC50 3 flutes 12mm aluminum endmill
Size 12×36×75×12D×3F
Suitable for aluminum, brass, acrylic, wood, etc
Feature Polished
Flute Number 3
Coating Uncoated
Helix angle 45°
Co 10%
HRA 91.8
TRS Min(N/mm²) 4000
Tolerance Within 0/-0.02mm
Processing machine ANCA/

Carbide Raw Material Introduction

End mill grade Carbide rod Grain size HRA Application
HRC50 YG10X 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45
HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62

Coating Introduction

Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating also can be customized

RLD Square End Mill for Aluminium Standard Size
HRC50
Flute Dia(mm) Overall Length(mm) Cutting Length(mm) Shank Dia(mm) Flutes
1 50 3 4 2/3
2 50 6 4 2/3
3 50 9 4 2/3
4 50 12 4 2/3
4 75 16 4 2/3
4 100 20 4 2/3
6 50 18 6 2/3
6 75 24 6 2/3
6 100 30 6 2/3
8 60 24 8 2/3
8 75 32 8 2/3
8 100 40 8 2/3
10 75 30 10 2/3
10 100 40 10 2/3
12 75 36 12 2/3
14 100 45 14 2/3
16 100 45 16 2/3
18 100 45 18 2/3
20 100 45 20 2/3

3 Mm 12mm 6mm Tungsten Carbide End Mill Aluminum Milling Cutter CNC HRC50 3 Flute3 Mm 12mm 6mm Tungsten Carbide End Mill Aluminum Milling Cutter CNC HRC50 3 Flute

FAQ

1. Are you a manufacturer or trading company?

We are a professional manufacturer of carbide tools.

2. Which shipping method do you usually use?

We usually send goods by express like DHL, UPS, FedEx, etc.

3. How about the delivery time?

We can dispatch within 2 business days after receiving payment for stock items.

For the out-of-stock items, it depends on the quantity.

Usually is around 5-7 business days.

4. Which payment methods do you accept?

We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.

5. Can you produce special carbide tools?

Yes, we can produce customized carbide tools according to your drawings or samples.

6. Can you do OEM?
Yes, we can

7. Do you have any discounts?

Yes, more quantity will enjoy more discount.

Welcome to send inquiry to us.

8. Where is your factory.
Our factory is in Changzhou City, Jiangsu Province, China.
It’s around 1 hour from Shanghai by High-Speed Train.

9. How many grinding machines do you have now?
Our company has 13 sets of CNC grinding machines.

10. What kind of inspection facilities do you have.

Now we have PG100 and Omega to control the tolerance of cutters.

11. When was your company established?

Our company was established in 2011.
