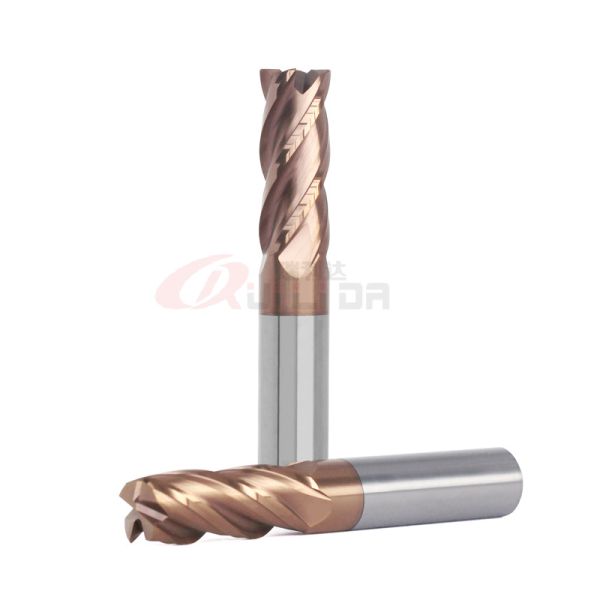

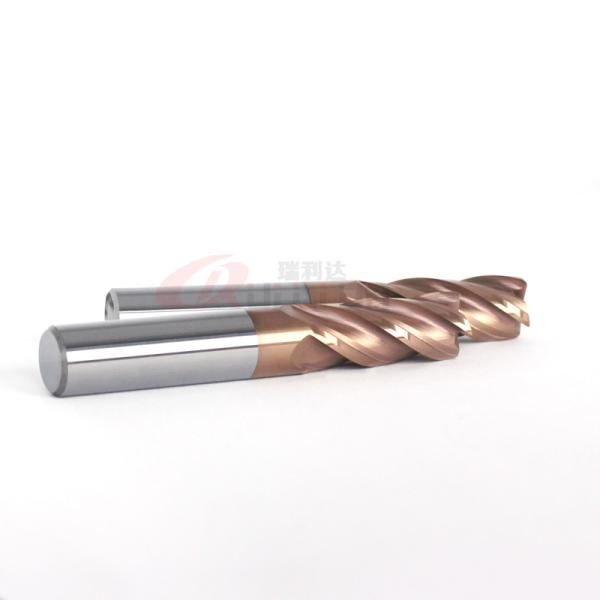

HRC55 4 Flutes 12R1 WF25 Solid Corner Radius Endmills
12R0.5 Carbide Cutting Tools for CNC Milling Machine
Product name | RLD HRC55 corner radius end mill 10R1 |
Size | 12R0.5*30*75*12D*4F |
Suitable for | P20, SC45, pre-hardened mold steel, alloy steel under HRC50 |
Machine type | CNC milling machine |
Flutes | 4 |
Coating | AlTiSiN |
Helix angle | 35° |
Co | 12% |
HRA | 92.2 |
TRS Min(N/mm²) | 3800 |
Tolerance | Within 0/-0.02mm |
Processing machine | ANCA/ |
Carbide Raw Material Introduction
End mill grade | Carbide rod | Grain size | HRA | Application |
HRC50 | YG10X | 0.6μm | 91.8 | Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
DLC | Black | 1-3 | 1800 | 0.1 | 350 |
Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
Coating also can be customized according to the requirement |
RLD Corner Radius End Mill Standard Size HRC50 | ||||
Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
2 (R0.2, 0.5) | 50 | 5 | 4 | 4 |
3 (R0.2, 0.5) | 50 | 8 | 4 | 4 |
4 (R0.2, 0.5) | 50 | 10 | 4 | 4 |
4 (R0.2, 0.5) | 75 | 12 | 4 | 4 |
4 (R0.2, 0.5) | 100 | 16 | 4 | 4 |
5 (R0.5,1) | 50 | 13 | 6 | 4 |
6 (R0.5,1) | 50 | 15 | 6 | 4 |
6 (R0.5,1) | 75 | 18 | 6 | 4 |
6 (R0.5,1) | 100 | 24 | 6 | 4 |
8 (R0.5,1) | 60 | 20 | 8 | 4 |
8 (R0.5,1) | 75 | 24 | 8 | 4 |
8(R0.5,1) | 100 | 32 | 8 | 4 |
10 (R0.5,1) | 75 | 25 | 10 | 4 |
10 (R0.5,1) | 100 | 30 | 10 | 4 |
12 (R0.5,1) | 75 | 30 | 12 | 4 |
12 (R0.5,1) | 100 | 36 | 12 | 4 |
Our package
Step1: The end mill has been finished producing and sent to the warehouse
Step2: 1pcs put in a plastic tube, 10pcs per group by a rubber band
Step3: Use the air bubble film to encase the plastic tube
Step4: Put the goods encased with air bubble film in small packing cartons
Step5: Put another air bubble paper on the cartons and packaging
Step6: Sent by logistics company or express according to customer's need
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer of carbide tools was established in 2011.
2. Which CNC grinding machine do you use?
All of our carbide tools are produced by ANCA & machines.
3. Which shipping method do you usually use?
We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ARAMEX, ETC.
For large quantities, we can send by air or by sea.
We also can send the goods to the shipping agent in China.
4. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
5. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
CNY (Chinese Yuan) is also acceptable.
6. Can you produce special carbide tools?
Yes, we can produce customized carbide end mills according to your drawings or samples.
7. Can you do OEM?
Yes, we can engrave your logo on the tool's shank for free.
We also can make customized labels.
8. What kind of inspection facilities do you have.
We have PG1000, Omega inspection facilities to check the tolerance of each tool.
