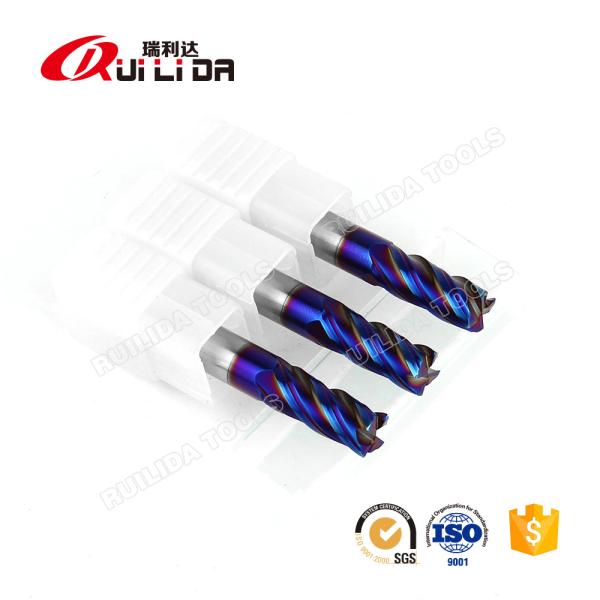

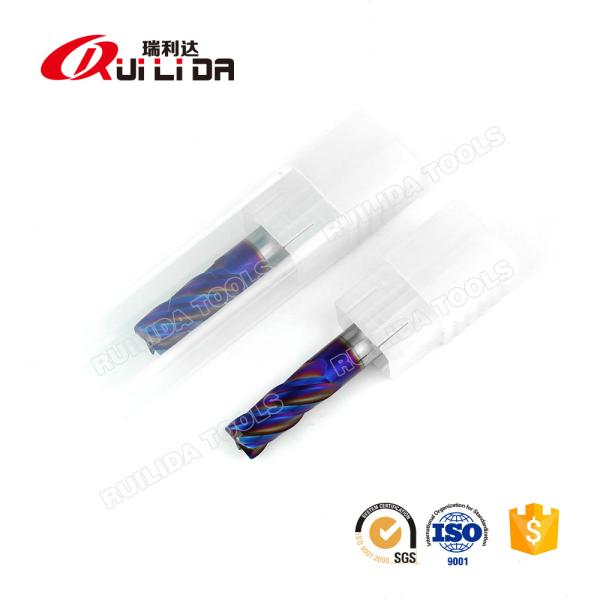

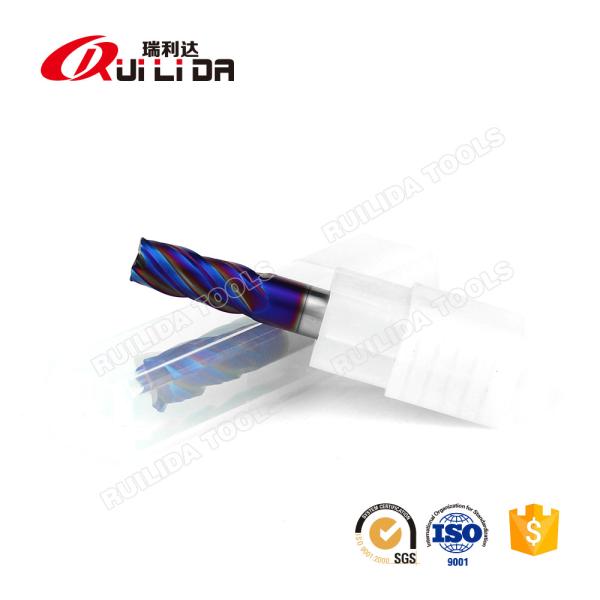

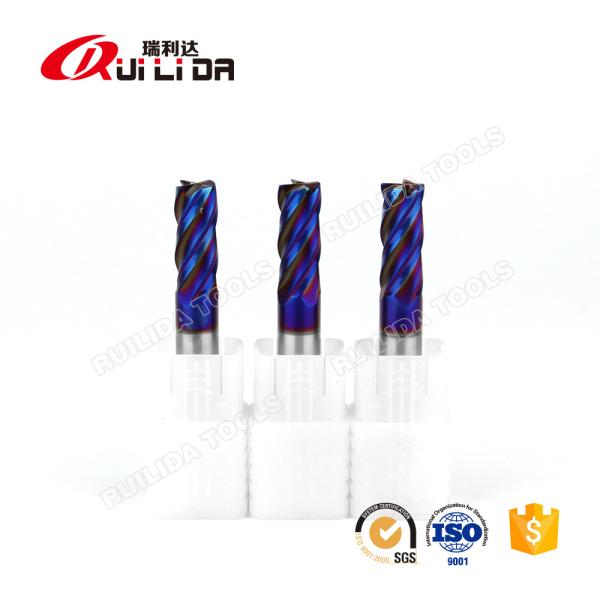

10mm 3/8 Carbide Corner Radius End Mills For Cutting Hardened Steel 4 Flute HRC65 .125 Radius
10mm 3/8 Carbide Corner Radius End Mills For Cutting Hardened Steel 4 Flute HRC65 .125 Radius
10mm 3/8 Carbide Corner Radius End Mills For Cutting Hardened Steel 4 Flute HRC65 .125 Radius
10mm 3/8 Carbide Corner Radius End Mills For Cutting Hardened Steel 4 Flute HRC65 .125 Radius
10mm 3/8 Carbide Corner Radius End Mills For Cutting Hardened Steel 4 Flute HRC65 .125 Radius
10mm 3/8 Carbide Corner Radius End Mills For Cutting Hardened Steel 4 Flute HRC65 .125 Radius
Specifications
Brand Name :
RLD Tools
Model Number :
HRC65
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T/PayPal/Credit Card
Supply Ability :
100000pcs/month
Delivery Time :
5-8 work days
Packaging Details :
1pcs end mill in a plastic tube, ten pieces a bundle, then put in carton.
Product :
HRC65 4 Flute Solid Carbide Corner Radius End Mill
Flute Diameter :
10R0.5
Flute Length :
25mm
Overall Length :
75mm
Shank Dia :
10mm
Material :
GU092
Coating :
Blue Nano Coating
Suitable for :
Hardened steel under hardness HRC65
Description

HRC65 4 Flute Solid Carbide Corner Radius End Mill For Hardened Steel Radius Cutter Mill

Product name RLD HRC65 corner radius end mill 10R0.5
Size 10R0.5*25*75*10D*4F
Suitable for Alloy steel, titanium, hardened steel, HRC65, etc.
Machine type CNC milling machine
Flutes 4
Coating Bule Nano
Helix angle 35°
Co 9%
HRA 93.5
TRS Min(N/mm²) 4100
Tolerance Within 0/-0.02mm
Processing machine ANCA/

Carbide Raw Material Introduction

End mill grade Carbide rod Grain size HRA Application
HRC50 YG10X 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45
HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62

Coating Introduction

Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
The coating also can be customized

RLD Corner Radius End Mill Standard Size
HRC65
Flute Dia(mm) Overall Length(mm) Cutting Length(mm) Shank Dia(mm) Flutes
2 (R0.2, 0.5) 50 5 4 4
3 (R0.2, 0.5) 50 8 4 4
4 (R0.2, 0.5) 50 10 4 4
4 (R0.2, 0.5) 75 12 4 4
4 (R0.2, 0.5) 100 16 4 4
5 (R0.5,1) 50 13 6 4
6 (R0.5,1) 50 15 6 4
6 (R0.5,1) 75 18 6 4
6 (R0.5,1) 100 24 6 4
8 (R0.5,1) 60 20 8 4
8 (R0.5,1) 75 24 8 4
8(R0.5,1) 100 32 8 4
10 (R0.5,1) 75 25 10 4
10 (R0.5,1) 100 30 10 4
12 (R0.5,1) 75 30 12 4
12 (R0.5,1) 100 36 12 4

10mm 3/8

FAQ

1. Can this end mill be used for cutting the hardened mold steel.

Yes, it can be used for cutting the heated mold steel under the hardness HRC65.

2. Are you a manufacturer or trading company?

We are a professional manufacturer of carbide tools which established in 2011.

3. Which CNC grinding machine do you use?

All of our carbide tools are produced by ANCA & machine.

4. Which shipping method do you usually use?

We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ETC.

5. How about the delivery time?

For stock items, we can dispatch within 2 business days after receiving payment.

For the out-of-stock items, it depends on the quantity.

Usually is around 5-7 business days.

6. Which payment methods do you accept?

We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.

7. Can you produce special carbide tools?

Yes, we can.
