Specifications
Brand Name :
RLD Tools
Model Number :
HRC50-3mm
Place of Origin :
Jiangsu, China
MOQ :
1
Price :
2USD/negotiable
Payment Terms :
T/T/PayPal/Credit Card
Supply Ability :
100000pcs/month
Delivery Time :
6-7 work days
Packaging Details :
One piece end mill in a plastic tube, ten pieces a bundle, then in carton.
Product :
HRC50 2 Flute 3mm Carbide Square Endmill
Raw Material :
ZY10EF
Flute Number :
2
Diameter :
3mm
Flute length :
7.5mm
Overall length :
50mm
Shank diameter :
4mm
Application :
Slot milling for Iron, Steel, Cast Iron, etc.
Helix :
35
Description

OEM RLD HRC50 2 Flute 3mm Tungsten Solid Carbide Square Endmills Changzhou Factory

Product name RLD HRC50 2 flutes 3mm square end mill
Specification 3*7.5*50*4D*2F
Suitable for Slot Milling
Machine type CNC milling machine
Flutes 2
Coating AlTiN/Others
Helix 35°
Co 10%
HRA 91.8
TRS Min(N/mm²) 4000
Tolerance Within 0/-0.02mm
Processing machine ANCA/

Carbide Raw Material Introduction

End mill grade Carbide rod Grain size HRA Application
HRC50 ZY10EF 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45
HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62

Coating Introduction

Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating also can be customized according to your requirement.

RLD HRC50 Square End Mill Standard Size
Flute Dia(mm) Overall Length(mm) Cutting Length(mm) Shank Dia(mm) Flutes
1 50 2.5 4 2/4
1.5 50 4 4 2/4
2 50 5 4 2/4
2.5 50 6.5 4 2/4
3 50 7.5 3 2/4
3 50 7.5 4 2/4
3.5 50 9 4 2/4
4 50 10 4 2/4
4 75 14 4 2/4
4 100 18 4 2/4
5 50 13 5 2/4
5 50 13 6 2/4
6 50 15 6 2/4
6 75 21 6 2/4
6 100 27 6 2/4
8 60 20 8 2/4
8 75 30 8 2/4
8 100 35 8 2/4
10 75 25 10 2/4
10 100 40 10 2/4
12 75 30 12 2/4
12 100 45 12 2/4
14 100 45 14 2/4
16 100 45 16 2/4
18 100 45 18 2/4
20 100 45 20 2/4
6 150 35 6 2/4
8 150 50 8 2/4
10 150 55 10 2/4
12 150 60 12 2/4
14 150 65 14 2/4
16 150 65 16 2/4
18 150 65 18 2/4
20 150 75 20 2/4

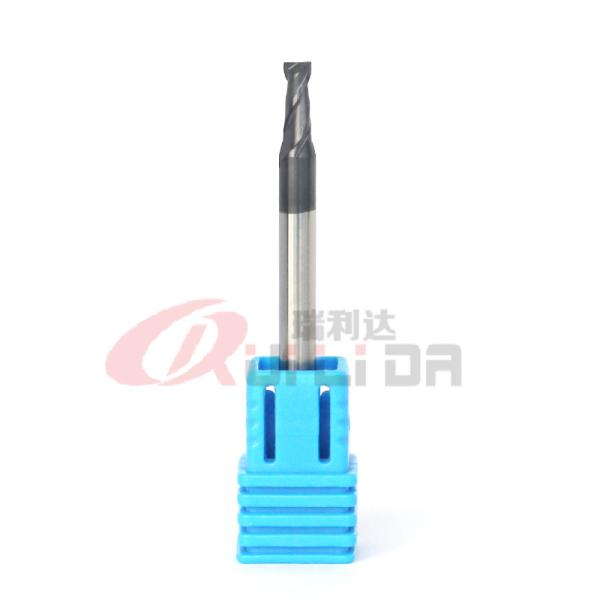

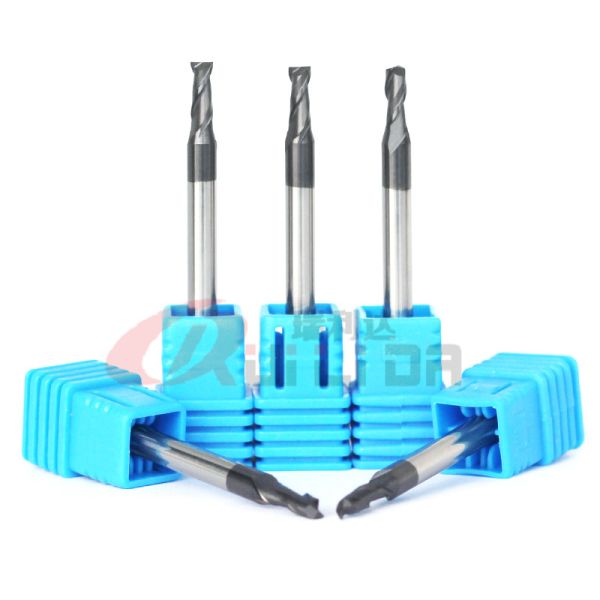

More pictures

9mm 3/89mm 3/8

FAQ

1. Are you a manufacturer or trading company?

We are a professional manufacturer of carbide tools which established in 2011.

2. Which CNC grinding machine do you use?

All of our carbide tools are produced by ANCA & machine.

3. Which shipping method do you usually use?

We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ETC.

For large quantities, we can send by air or by sea.

4. How about the delivery time?

For stock items, we can dispatch within 2 business days after receiving payment.

For the out-of-stock items, it depends on the quantity.

Usually is around 5-7 business days.

5. Which payment methods do you accept?

100% before shipment.
For customized tools, 30% in advance, the balance amount is paid before shipment.
T/T, Trade Assurance on Alibaba (credit card), etc.

6. Can you produce special carbide tools?

Yes, we can produce special carbide tools according to your drawings or samples.

7. Do you have any discounts?

Yes, more quantity will enjoy more discount.

Welcome to send inquiry to us.

8. Can you do OEM?

Yes, we can.
