AlTiN Coating 4mm Solid Carbide Ball Nose End Mill 8mm 2 Flutes 3D Milling
AlTiN Coating 4mm Solid Carbide Ball Nose End Mill 8mm 2 Flutes 3D Milling
AlTiN Coating 4mm Solid Carbide Ball Nose End Mill 8mm 2 Flutes 3D Milling
AlTiN Coating 4mm Solid Carbide Ball Nose End Mill 8mm 2 Flutes 3D Milling
AlTiN Coating 4mm Solid Carbide Ball Nose End Mill 8mm 2 Flutes 3D Milling
AlTiN Coating 4mm Solid Carbide Ball Nose End Mill 8mm 2 Flutes 3D Milling
AlTiN Coating 4mm Solid Carbide Ball Nose End Mill 8mm 2 Flutes 3D Milling
AlTiN Coating 4mm Solid Carbide Ball Nose End Mill 8mm 2 Flutes 3D Milling
AlTiN Coating 4mm Solid Carbide Ball Nose End Mill 8mm 2 Flutes 3D Milling
AlTiN Coating 4mm Solid Carbide Ball Nose End Mill 8mm 2 Flutes 3D Milling
Specifications
Brand Name :
RLD Tools
Model Number :
HRC50-R2
Place of Origin :
China
MOQ :
1
Price :
EXW 2.1USD/negotiable
Payment Terms :
T/T/PayPal/Credit Card
Supply Ability :
100000pcs/month
Delivery Time :
5-8 work days
Packaging Details :
One piece end mill in a plastic pipe, ten pieces a bundle, then in carton.
Product name :
HRC50 2 Flutes 4mm Ball Nose End Mill
Diameter :
4R2
Flute Length :
8mm
Overall length :
50mm
Shank diameter :
4mm
Helix :
30°
Flutes :
2
Suitable for :
Low-alloy steel, iron, cast iron, etc.
Description

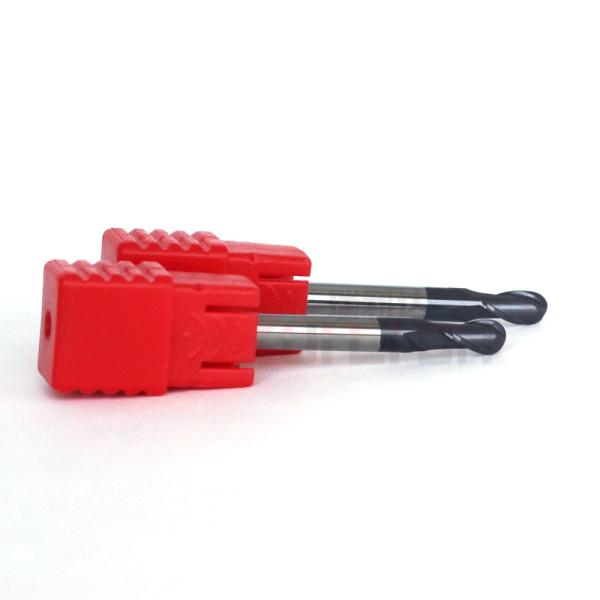

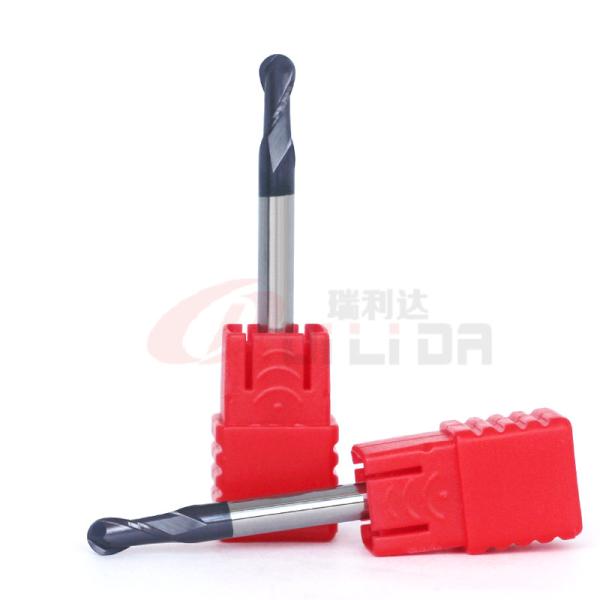

HRC50 2 Flutes 4mm Diameter Carbide Ball Nose Endmill For 3D Milling with AlTiN Coating

Superior Ball R Precision


Excellent heat & Wear Resistance

Bigger Corner Radius


Lower cutting resistance

Product name RLD HRC50 2 flutes 4mm ball nose end mill
Specification R2*8*50*4D*2F
Suitable for General steel under hardness HRC45, stainless steel, iron, cast iron, etc.
Machine type CNC Milling
Flutes 2
Coating AlTiN
Helix 30°
Co 10%
HRA 91.8
TRS Min(N/mm²) 4000
Tolerance Within 0/-0.02mm
Processing machine ANCA/

Carbide Raw Material Introduction

End mill grade Carbide rod Grain size HRA Application
HRC50 YG10X 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45
HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62

Coating Introduction

Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating can be customized according to requirement

RLD HRC50 2F Ball Nose End Mill Standard Size
Flute Dia(mm) Overall Length(mm) Cutting Length(mm) Shank Dia(mm) Flutes
1 50 2 4 2
1.5 50 3 4 2
2 50 4 4 2
2.5 50 5 4 2
3 50 6 3 2
3 50 7.5 4 2
3.5 50 9 4 2
4 50 10 4 2
4 75 14 4 2
4 100 18 4 2
5 50 13 5 2
5 50 13 6 2
6 50 15 6 2
6 75 21 6 2
6 100 27 6 2
8 60 20 8 2
8 75 30 8 2
8 100 35 8 2
10 75 20 10 2
10 100 20 10 2
12 75 24 12 2
12 100 24 12 2
14 100 28 14 2
16 100 32 16 2
18 100 36 18 2
20 100 40 20 2
6 150 12 6 2
8 150 16 8 2
10 150 20 10 2
12 150 24 12 2
14 150 28 14 2
16 150 32 16 2
18 150 36 18 2
20 150 40 20 2

AlTiN Coating 4mm Solid Carbide Ball Nose End Mill 8mm 2 Flutes 3D MillingAlTiN Coating 4mm Solid Carbide Ball Nose End Mill 8mm 2 Flutes 3D Milling

FAQ

1. Are you a manufacturer or trading company?

We are a professional manufacturer of carbide tools which established in 2011.

2. Which CNC grinding machines do you use?

All of our carbide end mills are produced by ANCA & machines.

They are imported from Australia and Germany.

3. Which shipping method do you usually use?

We usually send goods by express like FedEx, UPS, DHL, EMS, ARAMEX, ETC.

For large amount, we can send by air or by sea.

We also can send products to your forwarder in China.

4. How about the delivery time?

For stock items, we can dispatch within 2 business days after receiving payment.

For the out-of-stock items, it depends on the quantity.

Usually is around 5-7 business days.

5. Which payment methods do you accept?

We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.

We also can accept CNY (Chinese Yuan)

6. Can you produce special carbide tools?

Yes, we can produce special carbide tools according to your drawings or samples.

7. Do you attend international exhibitions?

Yes, we had attended exhibitions in Indonesia, India, Russia, Thailand, Vietnam,

Brazil, etc.
