Specifications
Brand Name :
RLD Tools
Model Number :
HRC50-R6
Place of Origin :
China
MOQ :
1
Price :
EXW 14SD/negotiable
Payment Terms :
T/T/PayPal/Credit Card
Supply Ability :
600000pcs/month
Delivery Time :
6-7 work days
Packaging Details :
1pcs endmill in a plastic pipe, ten pieces a bundle, then in a carton.
Product name :
HRC50 2 Flutes 12mm Ball Nose End Mill
Diameter :
12R5
Flute Length :
24mm
Overall length :
75mm
Shank diameter :
12mm
Helix :
30°
Flutes :
2
Suitable for :
Iron, cast iron, common steel, etc
Coating :
AlTiN
Raw Material :
ZY10EF Carbide
Description

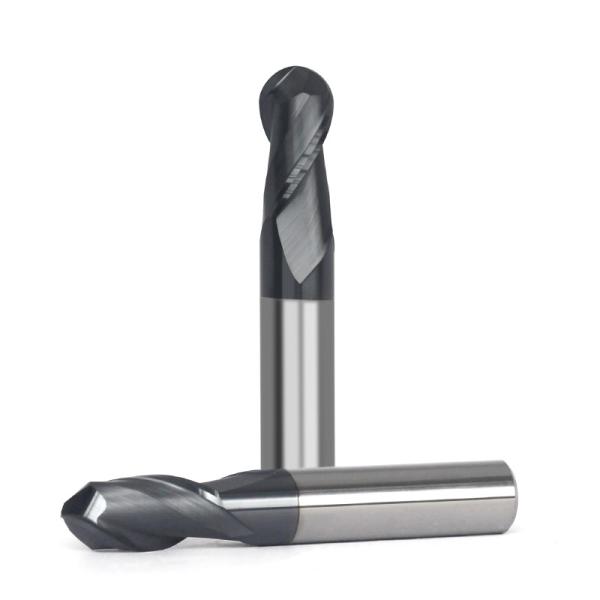

HRC50 Carbide Spherical Ball End Mill Manufacturers 12mm R6 Ball Nose Milling Cutter Price

Economic & Wide application
Suitable for cutting iron, cast iron, stainless steel, low alloy steel, general steel under hardness HRC45

Stable quality

Our company only cooperates with big reliable carbide rod suppliers.
Only sells the carbide tools produced by ourselves.

So for the same grade, our quality is always the same.

Product name RLD HRC50 2 flutes 12mm ball nose end mill
Specification R6*24*75*12D*2F
Suitable for Steel, iron, cast iron, Stainless Steel, etc.
Machine type CNC Milling Machine
Flutes 2
Coating AlTiN/Customized
Helix 30°
Co 10%
HRA 91.8
TRS Min(N/mm²) 4000
Tolerance Within 0/-0.02mm
Processing machine ANCA/

Carbide Raw Material Introduction

End mill grade Carbide rod Grain size HRA Application
HRC50 ZY10EF 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45

HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62

Coating Introduction

Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating can be customized according to requirements

RLD HRC50 2F Ball Nose End Mill Standard Size
Flute Dia(mm) Overall Length(mm) Cutting Length(mm) Shank Dia(mm) Flutes
1 50 2 4 2
1.5 50 3 4 2
2 50 4 4 2
2.5 50 5 4 2
3 50 6 3 2
3 50 7.5 4 2
3.5 50 9 4 2
4 50 10 4 2
4 75 14 4 2
4 100 18 4 2
5 50 13 5 2
5 50 13 6 2
6 50 15 6 2
6 75 21 6 2
6 100 27 6 2
8 60 20 8 2
8 75 30 8 2
8 100 35 8 2
10 75 20 10 2
10 100 20 10 2
12 75 24 12 2
12 100 24 12 2
14 100 28 14 2
16 100 32 16 2
18 100 36 18 2
20 100 40 20 2
6 150 12 6 2
8 150 16 8 2
10 150 20 10 2
12 150 24 12 2
14 150 28 14 2
16 150 32 16 2
18 150 36 18 2
20 150 40 20 2

12mm Spherical Ball Nose End Mills For Steel Two Flutes 24mm12mm Spherical Ball Nose End Mills For Steel Two Flutes 24mm

FAQ

1. Are you a manufacturer or trading company?

We are a professional manufacturer of carbide tools which established in 2011.

2. Which CNC grinding machines do you use?

All of our carbide end mills are produced by ANCA & machines.

3. How many CNC grinding machines do you have?

Now we have 6 sets of machines, 2 sets of ANCA machines.

4. Which shipping method do you usually use?

We usually send goods by express like FedEx, UPS, DHL, EMS, ARAMEX, CHINA POST, ETC.

For large amount, we can send by air or by sea.

5. How about the delivery time?

For stock items, we can dispatch within 2 business days after receiving payment.

For the out-of-stock items, it depends on the quantity.

Usually is around 5-7 business days.

6. Which payment methods do you accept?

We accept T/T/Credit Card/PayPal, etc.

7. Can you produce special carbide tools?

Yes, we can produce customized carbide tools according to your drawings or samples.

8. Do you attend international exhibitions?

Yes, we had attended exhibitions in Indonesia, India, Russia, Thailand, Vietnam, Brazil, etc.

9. Do you have any discounts?

Yes, we have discounts for large quantities.

10. Can you do OEM?

Yes, our company can engrave your logo on the tool's shank for free.
