Specifications
Brand Name :
RLD Tools
Model Number :
HRC50-R5
Place of Origin :
China
MOQ :
1
Price :
EXW 6.6USD/negotiable
Payment Terms :
T/T/PayPal/Credit Card
Supply Ability :
600000pcs/month
Delivery Time :
5-8 work days
Packaging Details :
1pcs end mill in a plastic tube, ten pieces a rubber bundle, then in a carton.
Product name :
HRC50 2 Flutes 10mm Ball Nose End Mill
Diameter :
10R5
Flute Length :
20mm
Overall length :
75mm
Shank diameter :
10mm
Helix :
30°
Flutes :
2
Suitable for :
Iron, cast iron, common steel, etc
Description

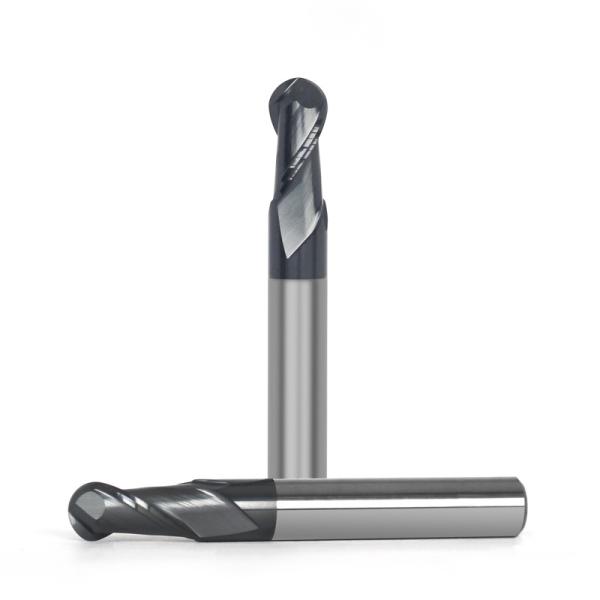

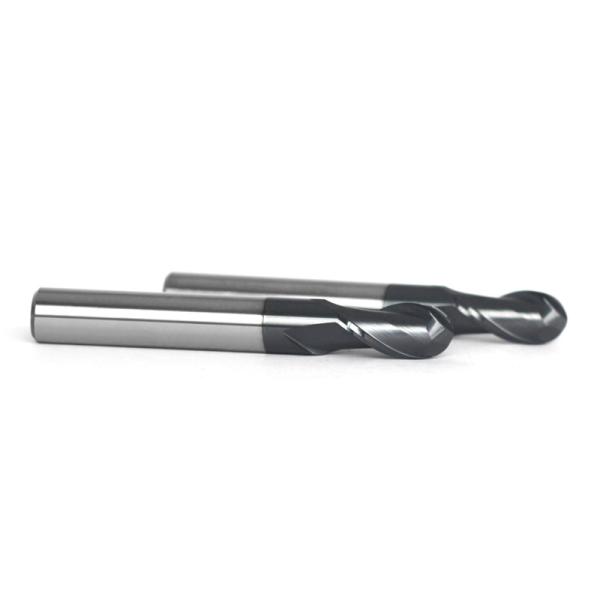

HRC50 Ball Nose milling Cutter 10mm Solid Carbide End Mill Cutter with AlTiN coating 35 Degree Helix

We have PG1000, Omega inspection facilities to ensure the precision of each tool

Our company exported to more than 42 countries around the world.

Product name RLD HRC50 2 flutes 10mm ball nose end mill
Specification R5*20*75*10D*2F
Suitable for Steel, iron, cast iron, Stainless Steel,etc.
Machine type CNC Milling Machine
Flutes 2
Coating AlTiN
Helix 30°
Co 10%
HRA 91.8
TRS Min(N/mm²) 4000
Tolerance Within 0/-0.02mm
Processing machine ANCA/

Carbide Raw Material Introduction

End mill grade Carbide rod Grain size HRA Application
HRC50 ZY10EF 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45
HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62

Coating Introduction

Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating can be customized according to the workpiece

RLD HRC50 2F Ball Nose End Mill Standard Size
Flute Dia(mm) Overall Length(mm) Cutting Length(mm) Shank Dia(mm) Flutes
1 50 2 4 2
1.5 50 3 4 2
2 50 4 4 2
2.5 50 5 4 2
3 50 6 3 2
3 50 7.5 4 2
3.5 50 9 4 2
4 50 10 4 2
4 75 14 4 2
4 100 18 4 2
5 50 13 5 2
5 50 13 6 2
6 50 15 6 2
6 75 21 6 2
6 100 27 6 2
8 60 20 8 2
8 75 30 8 2
8 100 35 8 2
10 75 20 10 2
10 100 20 10 2
12 75 24 12 2
12 100 24 12 2
14 100 28 14 2
16 100 32 16 2
18 100 36 18 2
20 100 40 20 2
6 150 12 6 2
8 150 16 8 2
10 150 20 10 2
12 150 24 12 2
14 150 28 14 2
16 150 32 16 2
18 150 36 18 2
20 150 40 20 2

6mm 8mm 10 Mm Ball Nose End Mill Hss For General Use 2fl 35 Degree Helix6mm 8mm 10 Mm Ball Nose End Mill Hss For General Use 2fl 35 Degree Helix

FAQ

1. Are you a manufacturer or trading company?

We are a professional manufacturer of carbide tools which established in 2011.

2. Which CNC grinding machines do you use?

All of our carbide end mills are produced by ANCA & machines.

ANCA is from Australia

is from Germany

3. Which shipping method do you usually use?

We usually send goods by express like FedEx, UPS, DHL, EMS, TNT, ARAMEX, ETC.

For large amount, we can send by air or by sea.

We also can send products to your shipping agent in China.

4. How about the delivery time?

For stock items, we can dispatch within 2 business days after receiving payment.

For the out-of-stock items, it depends on the quantity.

Usually is around 5-7 business days.

5. Which payment methods do you accept?

We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.

6. Can you produce special carbide tools?

Yes, we can produce special carbide tools according to your drawings or samples.

7. Do you attend international exhibitions?

Yes, we had attended exhibitions in Indonesia, India, Russia, Thailand, Vietnam, Brazil, etc.

8. Do you have any discounts?

Yes, we have discounts for large quantities.

9. Can you do OEM?

Yes, our company can engrave your logo on the tool's shank for free.
