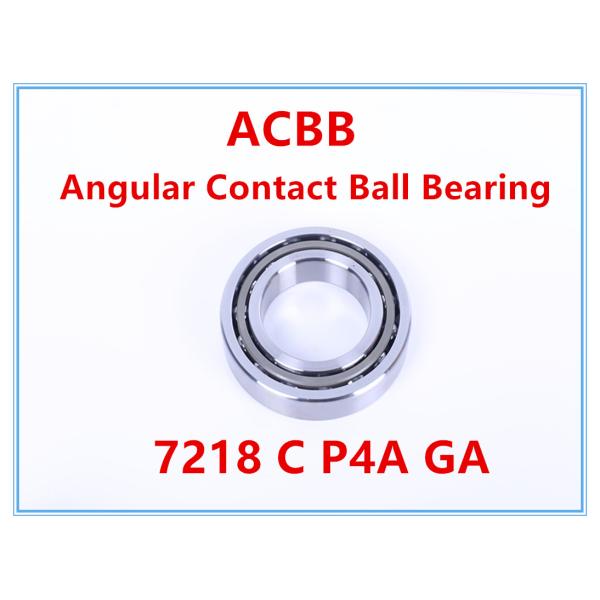

7218 C P4A GA Angular Contact Bearing High Rigidity
7218 C P4A GA Angular Contact Bearing High Rigidity
7218 C P4A GA Angular Contact Bearing High Rigidity
7218 C P4A GA Angular Contact Bearing High Rigidity
7218 C P4A GA Angular Contact Bearing High Rigidity
7218 C P4A GA Angular Contact Bearing High Rigidity
7218 C P4A GA Angular Contact Bearing High Rigidity
7218 C P4A GA Angular Contact Bearing High Rigidity
7218 C P4A GA Angular Contact Bearing High Rigidity
7218 C P4A GA Angular Contact Bearing High Rigidity
7218 C P4A GA Angular Contact Bearing High Rigidity
7218 C P4A GA Angular Contact Bearing High Rigidity
Specifications
Brand Name :
ACBB
Model Number :
7218 C P4A GA
Certification :
ISO9001 IATF16949
Place of Origin :
China
MOQ :
50 PCS
Packaging Details :
Company brand packaging.
Product name :
Angular Contact Ball Bearing
Product model :
7218 C P4A GA
Characteristic :
High speed and high rigidity
Rotational speed :
7500RPM-8500RPM
Angle :
C/CD/AC/A5/ACD/A5/E
Preload :
Light preload
Rolling Body :
Steel Ball
Holder :
Nylon holder
Description

Angular contact ball bearing 7218 C P4A GA (in addition, DB, DT, TBT, QBC and other matching methods); The angles include C angle, ACD angle, A5 angle, E angle, etc. It is mainly used in CNC machine tool spindles, high-speed motors and high-speed electric spindles. The operating speed reaches 7500 to 8500 rpm. Imported materials, imported G5 grade steel balls, and Kluberspeed NBU15 grease are used, which have the advantages of high rigidity, high precision, high speed, etc.

72 Series Angular Contact Ball Bearing
Bearing No Dimensions(mm) (KN) BasicRatedload (RPM)
Ball speed limit		 (RPM) Ceramic Ball limit speed (N) Preload
d D B Cr Cor Grease Lubrication Oil Lubrication Grease Lubrication Oil Lubrication A B C
7216C 80 140 26 73.50 68.00 10000 17000 12000 19000 424 1354 2701
7216AC 80 140 26 71.00 64.00 9000 15000 11000 18000 662 2249 4899
7217C 85 150 28 96.50 85.00 9000 15000 11000 18000 573 1825 3734
7217AC 85 150 28 91.50 80.00 8000 13000 10000 17000 869 2889 5972
7218C 90 160 30 122.00 104.00 8500 14000 11000 18000 738 2332 4746
7218AC 90 160 30 116.00 100.00 7500 12000 9000 15000 1136 3717 7651
