Advanced PLC Controlled KR-QFT-A Adhesive Wound Dressing Machine for Wound Dressing Patch
Advanced PLC Controlled KR-QFT-A Adhesive Wound Dressing Machine for Wound Dressing Patch
Advanced PLC Controlled KR-QFT-A Adhesive Wound Dressing Machine for Wound Dressing Patch
Advanced PLC Controlled KR-QFT-A Adhesive Wound Dressing Machine for Wound Dressing Patch
Advanced PLC Controlled KR-QFT-A Adhesive Wound Dressing Machine for Wound Dressing Patch
Advanced PLC Controlled KR-QFT-A Adhesive Wound Dressing Machine for Wound Dressing Patch
Advanced PLC Controlled KR-QFT-A Adhesive Wound Dressing Machine for Wound Dressing Patch
Advanced PLC Controlled KR-QFT-A Adhesive Wound Dressing Machine for Wound Dressing Patch
Advanced PLC Controlled KR-QFT-A Adhesive Wound Dressing Machine for Wound Dressing Patch
Advanced PLC Controlled KR-QFT-A Adhesive Wound Dressing Machine for Wound Dressing Patch
Advanced PLC Controlled KR-QFT-A Adhesive Wound Dressing Machine for Wound Dressing Patch
Advanced PLC Controlled KR-QFT-A Adhesive Wound Dressing Machine for Wound Dressing Patch
Specifications
Warranty :
1 Year
Type :
Other, Roller cutting molds
Applicable Industries :
Medical
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Motor
Condition :
New
Packaging Type :
Film/paper
Packaging Material :
Paper
Automatic Grade :
Automatic
Driven Type :
Electric
Voltage :
220V/380V
Power :
3.5KW
Place of Origin :
Shandong, China
Brand Name :
RuiKang
Weight :
1200 KG
Dimension(L*W*H) :
2440X1050X1800mm
Key Selling Points :
Multifunctional
Raw Material :
PE/PU/Non-woven fabric, release paper ,pad ect .
Size can be made by this machine :

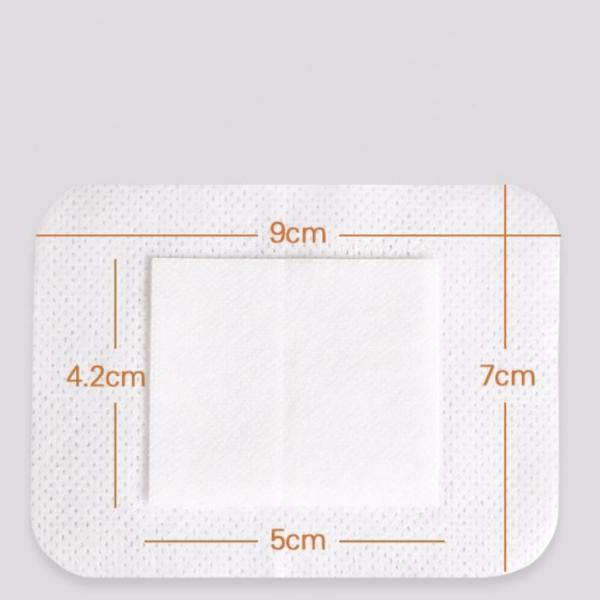

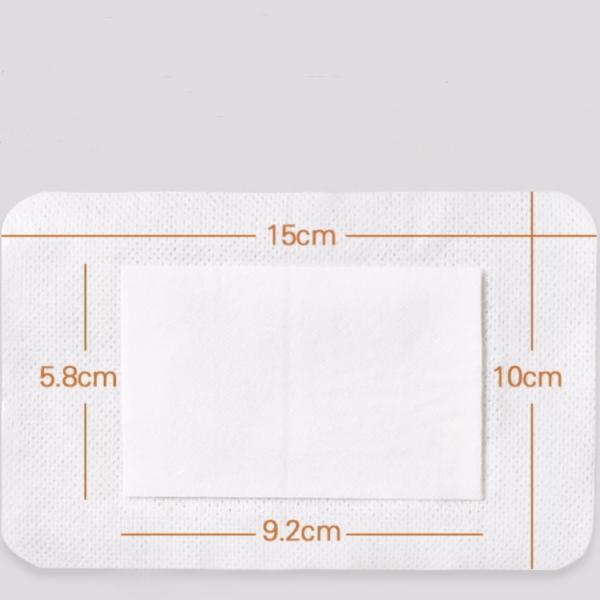

60x80mm, 100x100mm, 100x200mm, 200x200mm, 100x300mm ect.
Packaging Details :
Standard exporting wooden cases packing or according to buyer's requirement
Port :
QingDao Port,CHINA or as buyer's request
Supply Ability :
100 Set/Sets per Month
Price :
$20,000.00 - $28,000.00/sets
MOQ :
1
Description

We are machine factory ,export machines more than 14 years till 2023.

Application

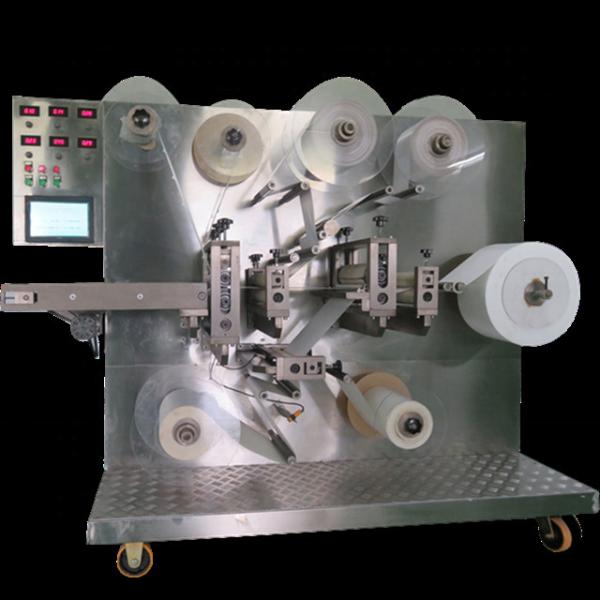

The machine is a new computer control system, automatical high speed wound dressing making machine.Using advanced technology at home and abroad.In the operation of the equipment, computer monitor all the way.Raw materials as followings:PU/PE/PVC/non-woven fabric, absorbent pad, release paper.

Features:

1.High production speed: To replace the present wound dressing equipment low production efficiency and hiring huge volume of employees greatly. Only needs one operator.

2. Euipment configuration: The machine uses of Shenzhen Adtech servo motor, Taiwan yonghong PLC control system, 10 inch touch screen connection. Other appliances are Delixi, software programming;Technology uses the overseas advanced technique, and the theory of our long-term practical experience in scheduling software programs.

Combined with automatic phase in the operation of the equipment.Adjust the position of absorbent pad automatically.Powder metallurgy high speed steel hobbing cutter.Stainless outer packing.

3.Change the mould only needs 30minutes, after cutter installed, input the size which needed on computer touch screen, and then continue production as usual.

4. Uses of magnetic powder brake, and magnetic powder clutch automatic constant tension control system, ensure the equipment running at the high speed stability.

Main technical parameters:

Model

KR-QFT-A

The length of the slice

Can be adjusted according to the product

The width of the slice

50mm-200mm or 250mm-350mm

Production speed

20m/min (200pcs/min)

Total power

3.5KW

Machine Dimension

 2440X1050X1800mm

Machine Weight

1200kg
