800 KG KC-5-A Infusion Plaster Injection Packing Machine Automatic Grade
800 KG KC-5-A Infusion Plaster Injection Packing Machine Automatic Grade
800 KG KC-5-A Infusion Plaster Injection Packing Machine Automatic Grade
800 KG KC-5-A Infusion Plaster Injection Packing Machine Automatic Grade
800 KG KC-5-A Infusion Plaster Injection Packing Machine Automatic Grade
800 KG KC-5-A Infusion Plaster Injection Packing Machine Automatic Grade
800 KG KC-5-A Infusion Plaster Injection Packing Machine Automatic Grade
800 KG KC-5-A Infusion Plaster Injection Packing Machine Automatic Grade
800 KG KC-5-A Infusion Plaster Injection Packing Machine Automatic Grade
800 KG KC-5-A Infusion Plaster Injection Packing Machine Automatic Grade
800 KG KC-5-A Infusion Plaster Injection Packing Machine Automatic Grade
800 KG KC-5-A Infusion Plaster Injection Packing Machine Automatic Grade
Specifications
Place of Origin :
Shandong, China
Brand Name :
RUIKANG
Packaging Details :
Standard Exporting Wooden Cases
Supply Ability :
100 Set/Sets per Month
Price :
$18,000.00 - $21,800.00/sets
MOQ :
1
Warranty :
1 Year
Type :
Other
Applicable Industries :
Medical
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Motor
Condition :
New
Application :
Medical
Packaging Material :
Paper, Film
Automatic Grade :
Automatic
Driven Type :
Electric
Voltage :
380V/220V
Power :
2.5KW
Weight :
800 KG
Dimension(L*W*H) :
3 x 0.8x 1.8 meter
Key Selling Points :
Easy to Operate
Marketing Type :
New Product 2020
Port :
Qingdao port ,CHINA or as buyer's request

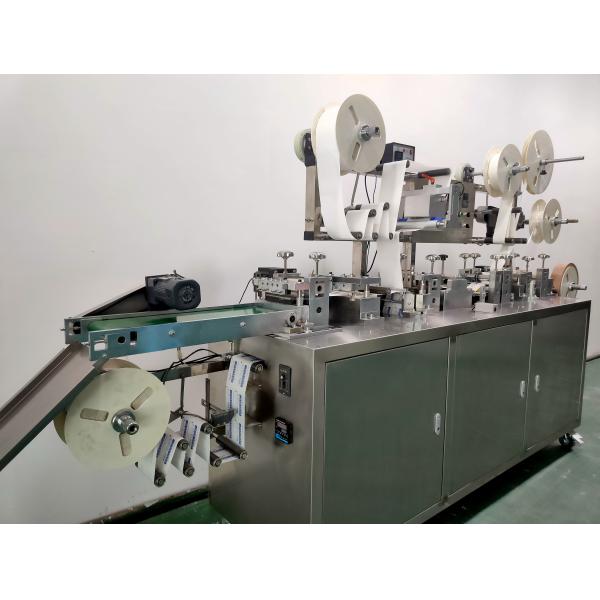

Description

We are manufactuer which located in heze city,shandong province of China

Summary:

This machine adopts: PLC Programmable Controllor, Computer touch screen, Human-machine interface automatic control system, Color code tracking positioning system. Color tracking positioning system adopts frenquency Converter to regulate speed, thus it’s easy to adjust the production speed.With making and packing part.fully automatically.

1-Making and packing all in one machine, reduced the manual packaging of workers difficulties greatly. 1-5 pieces of packaging can be adjusted on the touch screen

2-Uses Multi-floating roller buffer device, so that the anti-adhesive paper and the tape are steady while towing - stripping - compounding at high speed , reducing the deformation fight wrinkles and the damage to the tape.When raw material used out, machine shutdown automatically.

3-This machine is a double - strip system, two products at a time. It is twice the speed of traditional infusion stick packaging machine.

4-It is suitable for opp film, candlelight film, paper - plastic film.

5-Can easily adjust the working condition of tape, pinhole, medicine belt and wrapping paper to the correct location. Drug pad feeding and tape walking are in the same direction.

6-Machine drive adopts timing belt wheel drive mode. The equipment is smoothly when it is in high-speed operation and stopped, while eliminating the phenomenon of machine-inch movement and noise.

7-The outer casing of the equipment using stainless steel packaging, easy cleaning and maintenance , in line with national health standard.

Main Technical parameters:

Model number

KC-5-A

Power

2.5KW

Voltage

380V

Production speed

0—260pieces/minute

Machine weight

800KG

Machine demension

3.0*0.8*1.8m(L x W x H)

800 KG KC-5-A Infusion Plaster Injection Packing Machine Automatic Grade800 KG KC-5-A Infusion Plaster Injection Packing Machine Automatic Grade

800 KG KC-5-A Infusion Plaster Injection Packing Machine Automatic Grade

800 KG KC-5-A Infusion Plaster Injection Packing Machine Automatic Grade800 KG KC-5-A Infusion Plaster Injection Packing Machine Automatic Grade800 KG KC-5-A Infusion Plaster Injection Packing Machine Automatic Grade800 KG KC-5-A Infusion Plaster Injection Packing Machine Automatic Grade

800 KG KC-5-A Infusion Plaster Injection Packing Machine Automatic Grade800 KG KC-5-A Infusion Plaster Injection Packing Machine Automatic Grade

800 KG KC-5-A Infusion Plaster Injection Packing Machine Automatic Grade
