Fully Automatic Medical Adhesive Band-aid Making Machine KC-360N-D for First Aid Plaster
Fully Automatic Medical Adhesive Band-aid Making Machine KC-360N-D for First Aid Plaster
Fully Automatic Medical Adhesive Band-aid Making Machine KC-360N-D for First Aid Plaster
Fully Automatic Medical Adhesive Band-aid Making Machine KC-360N-D for First Aid Plaster
Fully Automatic Medical Adhesive Band-aid Making Machine KC-360N-D for First Aid Plaster
Fully Automatic Medical Adhesive Band-aid Making Machine KC-360N-D for First Aid Plaster
Fully Automatic Medical Adhesive Band-aid Making Machine KC-360N-D for First Aid Plaster
Fully Automatic Medical Adhesive Band-aid Making Machine KC-360N-D for First Aid Plaster
Fully Automatic Medical Adhesive Band-aid Making Machine KC-360N-D for First Aid Plaster
Fully Automatic Medical Adhesive Band-aid Making Machine KC-360N-D for First Aid Plaster
Fully Automatic Medical Adhesive Band-aid Making Machine KC-360N-D for First Aid Plaster
Fully Automatic Medical Adhesive Band-aid Making Machine KC-360N-D for First Aid Plaster
Specifications
Warranty :
1 Year
Type :
Other, Making and Packing Machine
Applicable Industries :
Medical
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Motor
Condition :
New
Application :
Medical
Packaging Type :
Cold/hot sealing packing paper
Packaging Material :
Paper, Film
Automatic Grade :
Automatic
Driven Type :
Electric
Voltage :
220V/380V
Power :
1.5kw
Place of Origin :
Shandong, China
Brand Name :
Ruikang
Weight :
600 KG
Dimension(L*W*H) :
3.3*0.8*1.8m
Key Selling Points :
Easy to Operate
After-sales Service Provided :
Engineers available to service machinery overseas
Shell :
Stainless steel
Packing speed :
0-360pieces/minute
Plaster size :
72*19mm/60*19mm/65*19mm/76*19mm/70*18mm/76*25mm/22mm ect.
Packaging Details :
Standard exporting wooden cases
Port :
Qingdao,China or as buyer's request
Supply Ability :
150 Set/Sets per Month
Price :
$10,000.00 - $18,000.00/sets
MOQ :
1
Description
Product Description

We are manufacturer in China

Useage
Mainly suitable for the cartoon and with beautiful pattern band-aid production packaging.

Characteristics
1.This machine adopts: PLC Programmable Controller,Computer touch screen, Human-machine interface automatic control system,Color
code tracking positioning system. Color tracking positioning system adopts frequency Converter to regulate speed,thus it's easy to
adjust the production speed.
2.KC-360N-D model uses Multi-floating roller buffer device,so that the anti-adhesive paper and the tape are steady while
towing-striping-compounding at high speed,reducing the deformation fight wrinkles and the damage to the tape.
3.The machine using light -control switch to control solenoid,so it can change the number of products to cut off automatically.
4.KC-360N-D model can easily adjust the working condition of tape,pinhole,medicine belt and wrapping paper to the correct
location.
5.KC-360N-D model's drug pad feeding and tape walking are in the same direction
6.Machine drive adopts timing belt wheel drive mode.The equipment is smoothly when it is in high-speed operation and stopped,while
eliminating the phenomenon of machine-inch movement and noise.
7.The outer casing of the eqipment using stainless steel packaging easy cleaning and maintenance,in line with national health standards.
Specification
Model
KC-360N-D
Production capacity
0-360 pieces/minute
Size
72*19mm/60*19mm/65*19mm/76*19mm/70*18mm/76*25mm/22mm ect.
Total power
1.7KW
Machine dimension
3.3*0.8*1.8m(L*W*H)
Machine weight
600kg

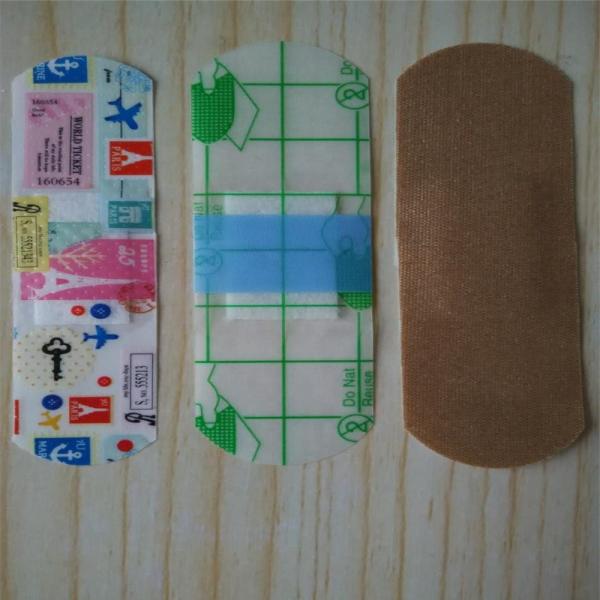

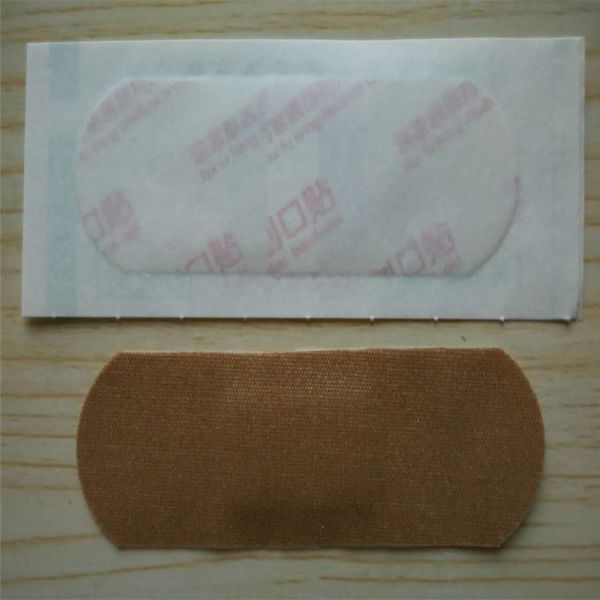

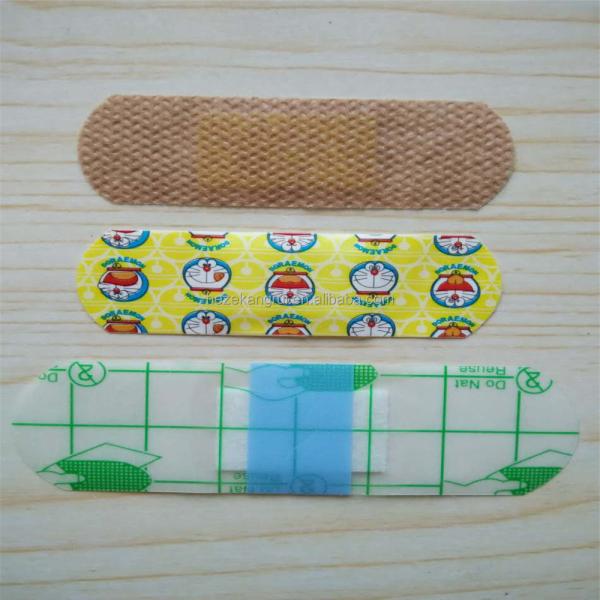

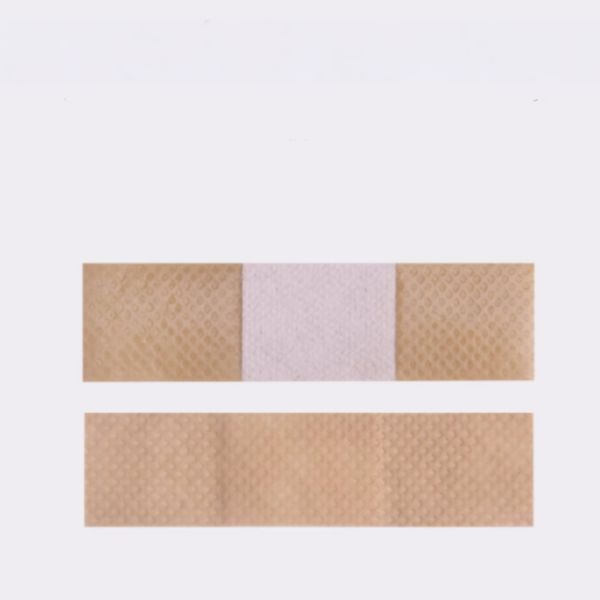

Product can be made
Fully Automatic Medical Adhesive Band-aid Making Machine KC-360N-D for First Aid Plaster
Fully Automatic Medical Adhesive Band-aid Making Machine KC-360N-D for First Aid Plaster
Fully Automatic Medical Adhesive Band-aid Making Machine KC-360N-D for First Aid Plaster
Fully Automatic Medical Adhesive Band-aid Making Machine KC-360N-D for First Aid Plaster
Customer Photos
Fully Automatic Medical Adhesive Band-aid Making Machine KC-360N-D for First Aid Plaster
Fully Automatic Medical Adhesive Band-aid Making Machine KC-360N-D for First Aid Plaster
Fully Automatic Medical Adhesive Band-aid Making Machine KC-360N-D for First Aid Plaster
Fully Automatic Medical Adhesive Band-aid Making Machine KC-360N-D for First Aid Plaster

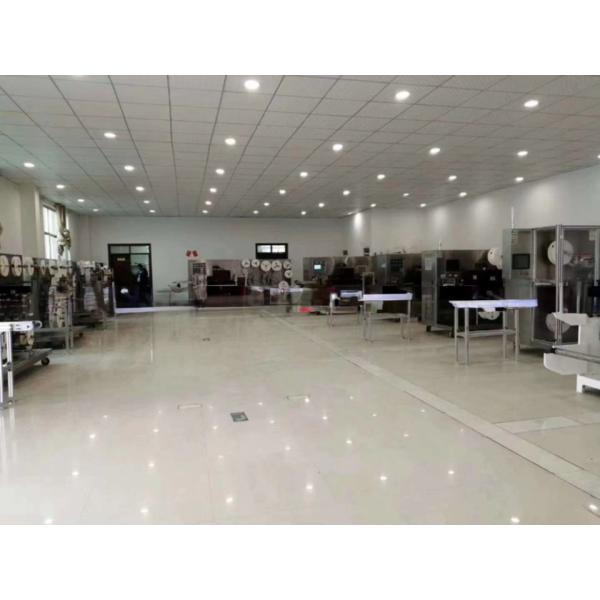

Company Photos
Fully Automatic Medical Adhesive Band-aid Making Machine KC-360N-D for First Aid Plaster
Fully Automatic Medical Adhesive Band-aid Making Machine KC-360N-D for First Aid Plaster
Fully Automatic Medical Adhesive Band-aid Making Machine KC-360N-D for First Aid Plaster
Fully Automatic Medical Adhesive Band-aid Making Machine KC-360N-D for First Aid Plaster
Fully Automatic Medical Adhesive Band-aid Making Machine KC-360N-D for First Aid Plaster
Fully Automatic Medical Adhesive Band-aid Making Machine KC-360N-D for First Aid Plaster
FAQ
1-We are machine factory, export machines more than 14 years.
2-Our machine can make different sizes and shape by change molds.
Different size, different molds,different shape, different molds.
