We are manufactuer which located in heze city,shandong province of China.Welcome to visit our factory.

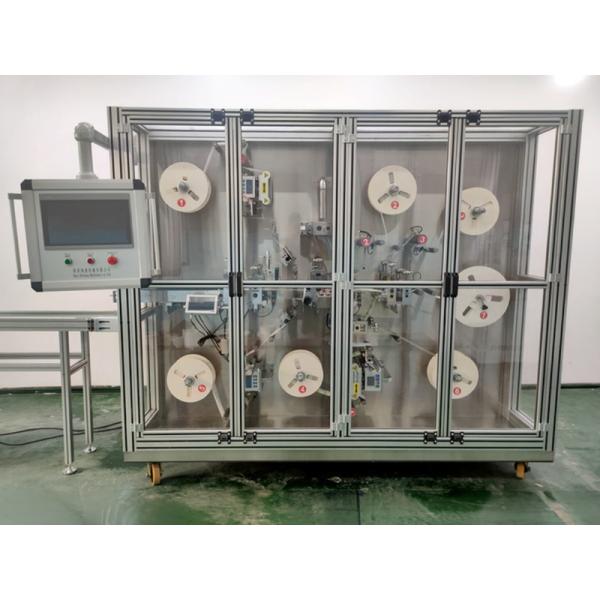

High speed band-aid packaging machine,Introduce and use domestic and international advanced technology, union market produces demand to undertake improving.Man - machine interface PLC control system is adopted.Full servo drive, high-speed continuous packaging production can be realized,it is making and packing all in one machine.

1. Raw material unwinding, using constant tension control system, adjust the tension automatically

2. Waste collection, using winding motor and suction air for automatic collection.

3. In the high-speed operation of the equipment, the base material and the upper and lower wrapping paper are controlled by automatic deviation correction, the material receiving is stable,can save raw material.

4. High - speed steel mold processing, long life, easy to replace the die, input the corresponding parameters can be produced.

5. Each feeding section and cutting section uses the motion control system of well-known brands at home and abroad, Electrical software programming, Automatic phase adjustment during operation.Touch screen visualization.

6. Taiwan KONTEC photoelectric is used to track the double color code, Automatic tracking and positioning base raw materials and packing paper.The slice size is stable and evenly.

7. It is suitable for the production of different packing materials, and can be used for cold sealing paper ,hot sealing paper and latex free paper.

8. The equipment is equipped with automatic stop when missing materials, raw material joints and automatic removal of foreign bodies.

9. The equipment has the function of counting the output of products and counting the delivery of finished products.

10. This machine is not only suitable for 72x19mm, 72x25mm ,but also can produce island type, full-pad and special-type band-aid production.

Main Technical Parameters:
