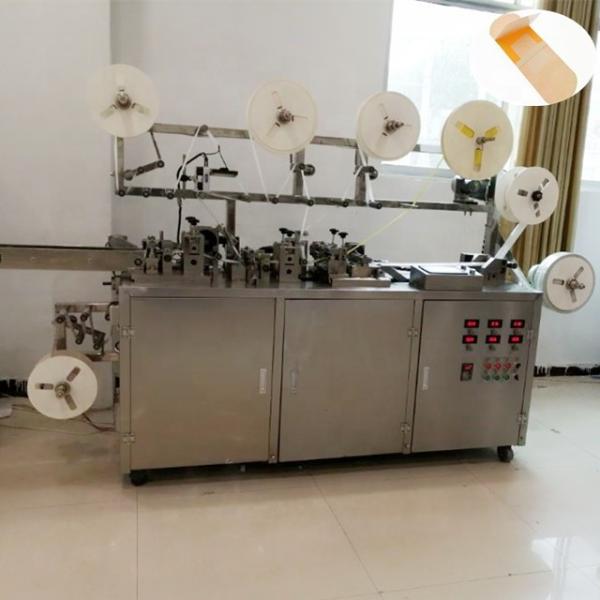

First Aid Pad Wooden Packaging Fully Automatic KC-360N-D Wound Plaster Making Machine
First Aid Pad Wooden Packaging Fully Automatic KC-360N-D Wound Plaster Making Machine
First Aid Pad Wooden Packaging Fully Automatic KC-360N-D Wound Plaster Making Machine
First Aid Pad Wooden Packaging Fully Automatic KC-360N-D Wound Plaster Making Machine
First Aid Pad Wooden Packaging Fully Automatic KC-360N-D Wound Plaster Making Machine
First Aid Pad Wooden Packaging Fully Automatic KC-360N-D Wound Plaster Making Machine
First Aid Pad Wooden Packaging Fully Automatic KC-360N-D Wound Plaster Making Machine
First Aid Pad Wooden Packaging Fully Automatic KC-360N-D Wound Plaster Making Machine
First Aid Pad Wooden Packaging Fully Automatic KC-360N-D Wound Plaster Making Machine
First Aid Pad Wooden Packaging Fully Automatic KC-360N-D Wound Plaster Making Machine
First Aid Pad Wooden Packaging Fully Automatic KC-360N-D Wound Plaster Making Machine
First Aid Pad Wooden Packaging Fully Automatic KC-360N-D Wound Plaster Making Machine
Specifications
Warranty :
1 Year
Type :
Other
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Motor
Condition :
New
Application :
Medical
Packaging Type :
case
Packaging Material :
Wood
Automatic Grade :
Automatic
Driven Type :
Electric
Voltage :
220V/380V
Power :
1.7KW
Place of Origin :
Shandong, China
Brand Name :
RuiKang
Weight :
600kg
Dimension(L*W*H) :
3.3*0.8*1.8m
Key Selling Points :
Easy to Operate
After-sales Service Provided :
Engineers available to service machinery overseas
Shell :
Stainless steel
Operator :
Only one
Plaster size can be made by this model :
32x72 mm,38x100 mm, 45x63 mm, 22 mm, 19x38 mm, 10x38 mm, 59x85 mm ect.
Material :
PE/PU/Non-woven farbic, pad, release paper, packing paper
After Warranty Service :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location :
None
Marketing Type :
Ordinary Product
Packaging Details :
Standard exporting wooden packing or as customer's requirements.
Port :
QingDao port,China or as buyer's request
Supply Ability :
100 Set/Sets per Month
Price :
$15,000.00 - $18,000.00/sets
MOQ :
1
Description

We are manufactuer which located in heze city,shandong province of China.Welcome to visit our factory.

Useage

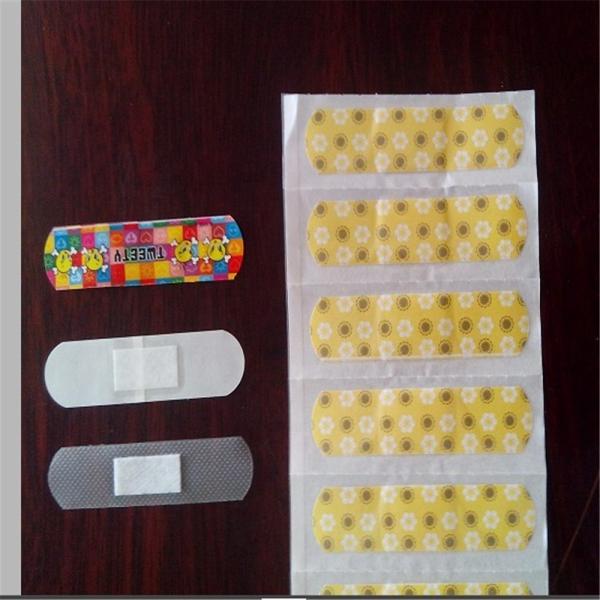

Mainly suitable for the cartoon and with beautiful pattern band-aid production packaging.

Characteristics

1.This machine adopts: PLC Programmable Controller,Computer touch screen, Human-machine interface automatic control system,Color code tracking positioning system. Color tracking positioning system adopts frequency Converter to regulate speed,thus it's easy to adjust the production speed.

2.KR-360N-D model uses Multi-floating roller buffer device,so that the anti-adhesive paper and the tape are steady while towing-striping-compounding at high speed,reducing the deformation fight wrinkles and the damage to the tape.

3.The machine using light -control switch to control solenoid,so it can change the number of products to cut off automatically.

4.KR-360N-D model can easily adjust the working condition of tape,pinhole,medicine belt and wrapping paper to the correct location.

5.KR-360N-D model's drug pad feeding and tape walking are in the same direction

6.Machine drive adopts timing belt wheel drive mode.The equipment is smoothly when it is in high-speed operation and stopped,while eliminating the phenomenon of machine-inch movement and noise.

7.The outer casing of the eqipment using stainless steel packaging easy cleaning and maintenance,in line with national health standards.

Main Technical Paramerers

Model KC-360N-D
Production capacity 0-360 pcs/min
Total power 1.7KW
Machine dimension 3.3*0.8*1.8m(L*W*H)
Machine weight 600kgs

Mainly specification can be made by KC-360N-D
