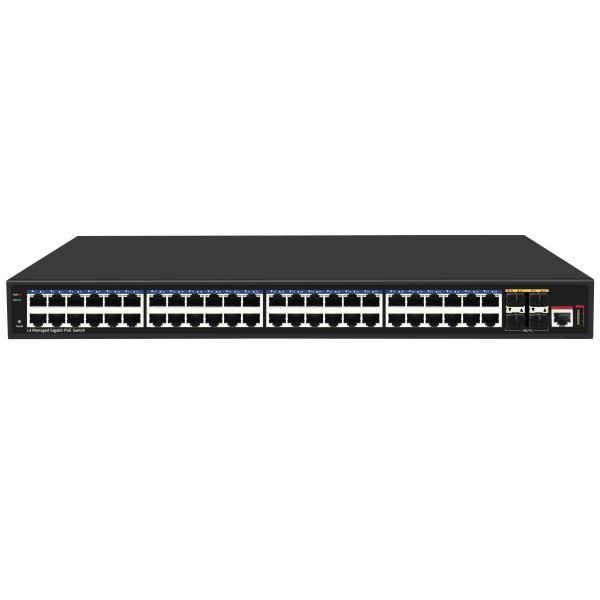

10 Gigabit PoE Industrial Ethernet Switch 400W Layer 3 52 Port
10 Gigabit PoE Industrial Ethernet Switch 400W Layer 3 52 Port
10 Gigabit PoE Industrial Ethernet Switch 400W Layer 3 52 Port
10 Gigabit PoE Industrial Ethernet Switch 400W Layer 3 52 Port
10 Gigabit PoE Industrial Ethernet Switch 400W Layer 3 52 Port
10 Gigabit PoE Industrial Ethernet Switch 400W Layer 3 52 Port
10 Gigabit PoE Industrial Ethernet Switch 400W Layer 3 52 Port
10 Gigabit PoE Industrial Ethernet Switch 400W Layer 3 52 Port
10 Gigabit PoE Industrial Ethernet Switch 400W Layer 3 52 Port
10 Gigabit PoE Industrial Ethernet Switch 400W Layer 3 52 Port
Specifications
Brand Name :
QUIC
Model Number :
ZX-AFGM-SWTG3448S-400
Certification :
CE、FCC、RoHS、3C
Place of Origin :
China
MOQ :
50
Price :
USD 550（Negotiable）
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Month
Delivery Time :
5-8 work days
Packaging Details :
Product size:440*336*45mm Packing size: 563*407*90mm
Switching Capacity :
56Gbps
Throughput :
Throughput
Packet Buffer :
4Mb
Flash Memory :
16MB
DDR SDRAM :
128MB
MAC Address :
8K
Power Voltage :
Input Voltage ：AC 100-240 V Power supply：52V7.69A
Support :
OEM,ODM and Customize
Description

Enterprise 52-port 10 Gigabit Uplink 400W Layer 3 Managed PoE Console USB Switch

48 Gigabit PoE ethernet ports + 4 10 Gigabit uplink SFP optical ports + 1 USB serial port + 1 Console port, of which 1-48 ports comply with IEEE 802.3af/at international standards, single port maximum power supply power 30W, total machine power 400W, backplane bandwidth 176Gbps, layer 3 network management function, support routing, DHCP, VLAN, MAC address, ACL access control, QOS, multicast, storm suppression, IPV4/ IPV6 and other service functions, support ring network, extreme speed detection and self-healing function, support 802.1X authentication, ARP intrusion detection, IP source protection, DoS protection and other security control policies, support STP/RSTP/MSTP spanning tree protocol, dynamic/static link aggregation and other network protection functions, support Web/Telnet/CLI/SSH management and maintenance mode, adapt to -10°C~50°C wide temperature environment work, power input AC100-240V 50/60Hz, 1U rackmount.

I/O Interface
Power Input: AC 100-240V, 50/60Hz
Ethernet

24* 10/100/1000Mbps PoE Port

4* 1000M RJ45 Port(Combo)

4*1000M SFP Port (Combo)

1 * RJ45 Console Port
Performance
Switching Capacity 56Gbps
Throughput 41.66Mpps
Packet Buffer 4Mb
Flash Memory 16MB
DDR SDRAM 128MB
MAC Address 8K
Jumbo Frame 9.6Kbytes
Transfer Mode Store and forward
MTBF 100000 hour
Standard
Network protocol

IEEE 802.3:Ethernet MAC Protocol

IEEE 802.3i:10BASE-T Ethernet

IEEE 802.3u:100BASE-TX Fast Ethernet

IEEE 802.3ab:1000BASE-T Gigabit Ethernet

IEEE 802.3z:1000BASE-X Gigabit Ethernet (optical fiber)

IEEE 802.3az:Energy Efficient Ethernet

IEEE 802.3ad:Standard method for performing link aggregation

IEEE 802.3x:Flow control

IEEE 802.1ab: LLDP/LLDP-MED (Link Layer Discovery Protocol)

IEEE 802.1p:LAN Layer QoS/CoS Protocol Traffic Prioritization(Multicast filtering function)

IEEE 802.1q:VLAN Bridge Operation

IEEE 802.1x:Client/Server Access Control and Authentication Protocol

IEEE 802.1d:STP

IEEE 802.1s:MSTP

IEEE 802.1w:RSTP

PoE Protocol

IEEE802.3af (15.4W)

IEEE802.3at (30W)
Industry Standard

EMI: FCC Part 15 CISPR (EN55032) class A

EMS: EN61000-4-2 (ESD),

EN61000-4-4 (EFT),

EN61000-4-5 (Surge)

Network Medium

10Base-T : Cat3,4,5 or above UTP(≤100m)

100Base-TX : Cat5 or above UTP(≤100m)

1000Base-TX : Cat5 or above UTP(≤100m)

Multi-mode Fiber: 50/125,62.5/125,100/140um

Single-mode Fiber: 8/125,8.7/125,9/125,10/125um
