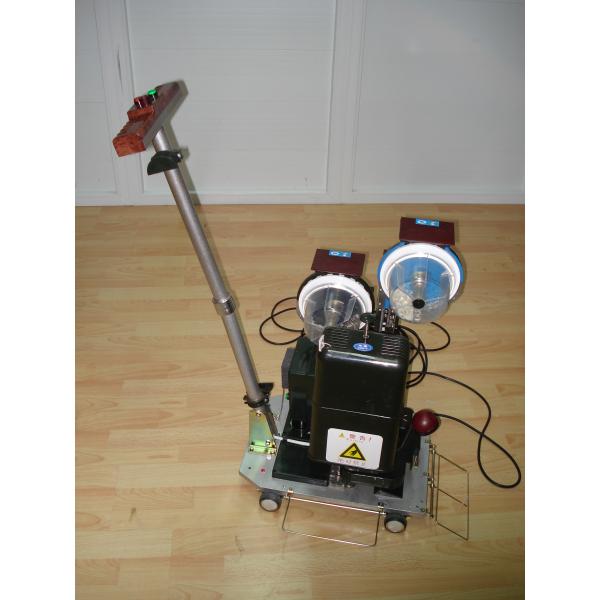

30 Watt Automatic Eyelet Punching Machine For Flex Banner 13.5mm All Metal Grommets
30 Watt Automatic Eyelet Punching Machine For Flex Banner 13.5mm All Metal Grommets
Specifications
Brand Name :
MY
Model Number :
AU-G
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
Hidden
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
8000 sets / month
Delivery Time :
3-5 working days after payment
Packaging Details :
weight : 65kg , size is : 60*42*48 cm , package : wooden case
Machine name :
Automatic eyelet punching machine
grommet size :
13.5mm/10.5mm
grommet material :
part metal + part plastic / all metal
work type :
Automatic work
MOQ :
one set of machine
machine color :
grey / red
machine warranty :
one year
automatic work speed :
1800 pcs/h
work Power :
30W
Voltage :
110/220V
Description

30W Automatic Work Flex Banner Metal / Part Metal Part Plastic

Eyelet Punching Machine


Properties & function :


Nowadays people still manually rivet the grommet of large poster cloth. This operation has many disadvantages:

more punctures and easy cut ropes off

iron sheeting is easily rusted

unsolid joint between grommets and cloth

Meanwhile, manually punching is slow, laborious, unefficient and low quality.

But , Mingyang automatic grommet machine is designed for solving the above problems.


Details as below :

Machine nameAutomatic Grommet Machine
Grommet Size13.5 mm/10.5mm
Eyelet MaterialPart metal + part plastic grommt / all metal grommet
Work Power30W
Work Voltage110V/220V
Automatic Work Speed1800 pcs/h
QualityHigh
G/W 65 kg
N/W41 kg
Pack Size60*42*48cm
Packagewooden Case
Machine ColorRed or grey



Machine type :

The machine has 3 different model, because use different grommets :

► Machine for 10.5mm part metal part plastic grommets

► Machine for 13.5mm part metal part plastic grommets

► Machine for 13.5mm all metal grommets

Function introduction :


Mingyang automatic grommet machine is controlled by microcomputer. It has ligh efficiency and saves labor. The dimension is 920*680*398(H*L*W) and net weight is 41.1KG. There are four wheels under the machine so it is very convenient to move. It also can be fixed on worktable after take off the wheels. Different types of machines can be offered according to different power supply and voltage in different countries and areas.


This machine is environmental protection and energy saving .It adopts electromagnetic force directly punching and finish the task. It only uses electricity in 1% second per punching. The average consumption of electricity is less than 3 watt during wait for another order. While ordinary punching press needs at least several hundreds watt to keep operate.


There are two groups of dictate button with same functions: one is on the handle; the other is on the shell of microcomputer. Every group is composed of red button, yellow button and green button. Green button is for sending grommets, red button is for operating, while yellow one is resetting. The laser light will turn on when power is on, two hoppers will operate and send to the feed canal. It will automatically stop sending until the canal is full.


F A Q :


1. Q : What kinds of Grommrt can it use ?

A : It just can use 10.5mm/13.5 part metal part plastic/all metal grommet .


2. Q : What's the MOQ ?

A : The MOQ is one set of grommet machine .


3. Q : What's it automatic work speed ?

A : It automatic work speed is 1800 pcs/h .


4. Q : How long will delivery goods after payment ?

A : Within 3-5 working days after payment .


5. Q : How can i pay ?

A : Our company accept : T/T,Western Union ,Paypal .


Any Questions Or Demand Please Send Your Inquiry Details At The Below , Thank You :-)
