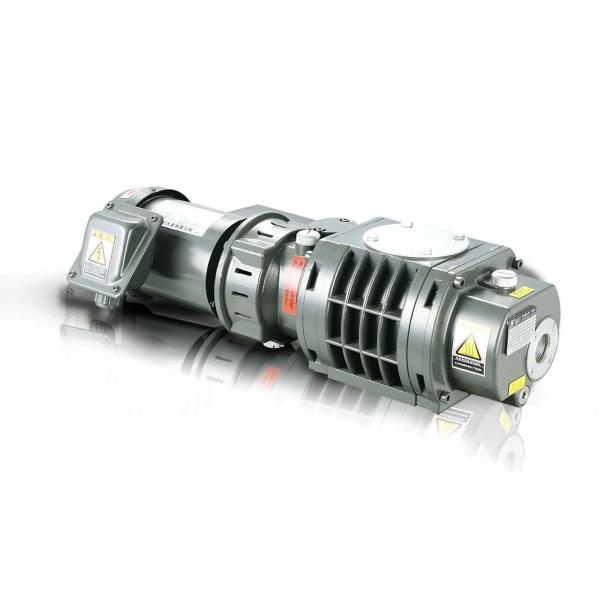

BSJ30L 0.4KW Mechanical Roots Vacuum Pump, Industrial Roots Blower CE Certificated
BSJ30L 0.4KW Mechanical Roots Vacuum Pump, Industrial Roots Blower CE Certificated
BSJ30L 0.4KW Mechanical Roots Vacuum Pump, Industrial Roots Blower CE Certificated
BSJ30L 0.4KW Mechanical Roots Vacuum Pump, Industrial Roots Blower CE Certificated
BSJ30L 0.4KW Mechanical Roots Vacuum Pump, Industrial Roots Blower CE Certificated
BSJ30L 0.4KW Mechanical Roots Vacuum Pump, Industrial Roots Blower CE Certificated
Specifications
Brand Name :
BSC
Model Number :
BSJ30L
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD 1920 per set
Payment Terms :
T/T
Supply Ability :
1000 sets per month
Delivery Time :
5-30 days
Packaging Details :
Carton
Surface :
Painting
Color :
Army Green
Pumping Rate :
100 m3/h(1667L/min)
Material :
Aluminium alloy
Features :
Corrosion resistance
G.W. :
30kgs
N.W. :
29kgs
Meas. :
65*34*24cm
Description

30L/s (100m³/h) 0.4kW Mechanical Army Green Booster Pump,Roots Pump BSJ30L

Description :

Roots vacuum pumps ,which are also called Roots blowers,are rotary plunger type pumps where two symmetrically shaped impellors rotate in opposite directions inside the pump housing.

Characteristics:

  • The use of oil-free intermediat seal,multiple sealed way to ensure the hight clean vacuum environment in the rotor chamber .
  • Advanced proceesing to ensure the good geometrical symmetry of the rotors,as well as low noise and long service life.
  • The whole rotors is made of aluminium alloy which has the charateristics of fast corrosion resistance and energy-efficient.

​Technical Parameter :

Model Units BSJ30L
Pumping Rate 50 Hz m³h-1 / Lmin-1 100/1667
60 Hz 120/2000
Max Inlet Pressure 50Hz Pa 1.2x103
60Hz Pa 9.2x103

Ultimate Vacuum

 Pa

4×10-2
Motor Power kW(hp) 0.4(0.55)
Inlet -- VG50
Outlet -- VF50
Cooling Method Water cooled
Oil Need L 0.4
Ambient Temp. ℃ 5~40
Vacuum Pump Oil -- BSO-46

Note: The value of 'Ultimate Pressure' in this sheet is measured by Pirani gauge when the Baosi special pump oil is used,and the value should be 4x10-3 if the Mcleod gauge is used.

Performance Curve:

BSJ30L 0.4KW Mechanical Roots Vacuum Pump, Industrial Roots Blower CE Certificated

Dimensions:

BSJ30L 0.4KW Mechanical Roots Vacuum Pump, Industrial Roots Blower CE Certificated

BSJ30L 0.4KW Mechanical Roots Vacuum Pump, Industrial Roots Blower CE Certificated

Applications

  • Vacuum distillation
  • Vacuum packaging
  • Thin film coating
  • Freez drying
  • Electrical engineering
  • Printing
  • Surface treatment technique
  • Wind Energy
  • Ceramics and glasses

We provide you with individual support,we train you and we offer 24/7 service worldwide.
