12 m³/h air cooled performance 28kgs Oil free vacuumpump, dry scroll pump
12 m³/h air cooled performance 28kgs Oil free vacuumpump, dry scroll pump
12 m³/h air cooled performance 28kgs Oil free vacuumpump, dry scroll pump
12 m³/h air cooled performance 28kgs Oil free vacuumpump, dry scroll pump
Specifications
Brand Name :
BSC
Model Number :
GSP3
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
500 sets per month
Delivery Time :
5-30 days
Packaging Details :
wooden box
Ultimate Vacuum :
0.01mbar
Color :
Blue
Speed :
12 m³/h
Material :
Cast Iron
Operating Temp. :
10~40℃
Dimensions :
367*270*250mm
Surface :
Painting
Weight :
28kg
Description

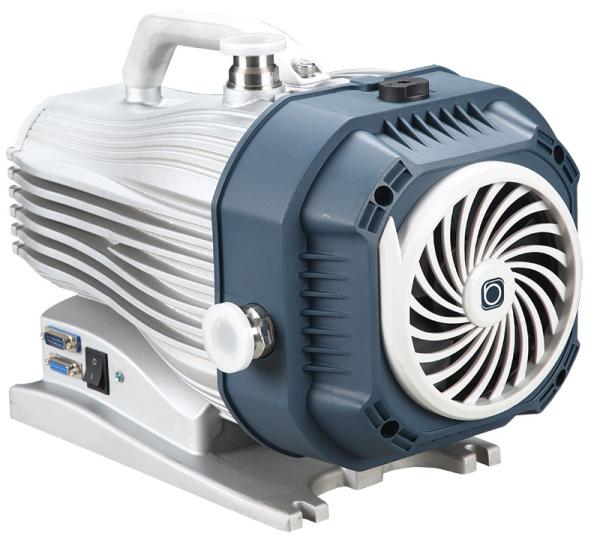

12 m³/h Vacuum Pump, Sky Blue Oil-Free Dry Scroll Pump GSP3

Description

Scroll pump is a new kind of oil-free mechanical pump with features of simple construction, good sealing, high vacuum, etc. As a high technology product, it has a highly technical requirement in design and manufacture. With the benefits of low consumption, long working life, high reliability, and low noise, it has the incomparable advantage in the application of clean process and has popular use in the market. In order to meet the featured application requirement of domestic and overseas customers, Baosi Vacuum developed the GVD and GSP series dry scroll pump with excellent performance and high-cost efficiency.

​Technical Data

Model GSP3
Nominal rotational speed rpm 1800
Displacement m³h-1 12
Motor power W

400
Ultimate Vacuum mbar 0.008
Voltage input V 1-ph, 100-240
Noise level dB (A) 54
Inlet flange - NW25
Exhaust flange - NW25
Max water vapour pumping rate gh-1 100
Leak tightness mbar ls-1 ＜1×10-6
Weight kg 25
Cooling Method - Air cooled

Performance Curve

12 m³/h air cooled performance 28kgs Oil free vacuumpump, dry scroll pump

Dimensions

12 m³/h air cooled performance 28kgs Oil free vacuumpump, dry scroll pump

Application

  • Electron microscopy
  • High energy physics
  • Mass spectrometry
  • Glove box
  • Beam welding/laser welding
  • Space simulation
  • Coating(PVD/CVD)

12 m³/h air cooled performance 28kgs Oil free vacuumpump, dry scroll pump
