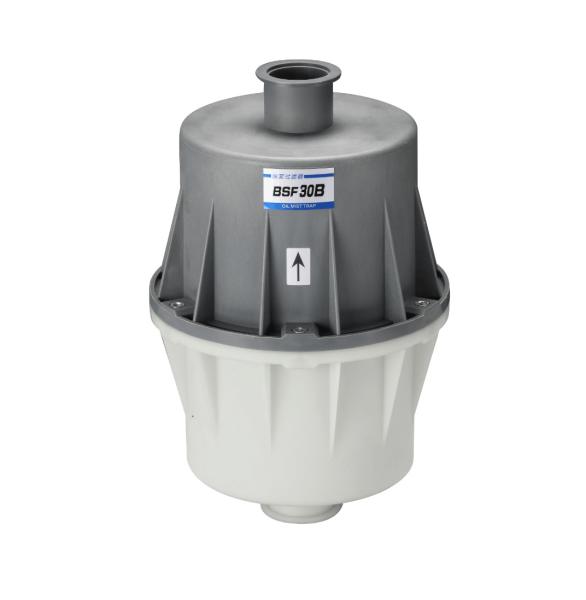

Steel 30 L/s Oil Mist Filter for Vacuum Pump / Vacuum System Protection
Steel 30 L/s Oil Mist Filter for Vacuum Pump / Vacuum System Protection
Specifications
Brand Name :
BAOSI
Model Number :
BSF30
Certification :
ISO9001,ISO14001,CE,OHSAS18001
Place of Origin :
CHINA
MOQ :
1
Price :
$
Payment Terms :
T/T
Packaging Details :
Carton
Model :
BSF 30
Filter Specification :
30L
Baosi Pump :
BSV30/BSV40/BSV60/BSV90
Max processing flow :
30L/s
Filter Element :
Fiberglass
Shell Material :
Steel
Color :
silver
N.W. :
7kg
Description

30L/s oil mist trap to protect the equipment from oil mist pollution

Advantage to the user

  • Filter of the exhaust gas by removal of entrained lubricant particles
  • Emptying via drain screw or exhaust filter drain tap
  • Filter elements(made of glass fiber) are exchangeable

Description:

When the oil rotary vacuum pump is operated at atmospheirc pressure or under low vacuum,the oil will be discharged together with the gas which has been pumped.

This kind of exhaust gas is composed of many tiny oil droplets and exhausted in the form of smoke through the pump outlet.

The oil mist filter is used to ensure a clean environment to protect the equipment from oil mist pollution.

Application :

Used with oil rotary vacuum pump or vacuum system.

Parameter:

Model BSF30
Filter Specification 30L
Maximum Processing Flow L/s(m³/h) 30(108)
Inlet KF40
Outlet M50*1.5
Pump

BSV30/BSV40(high load)

BSV60/BSV90(underload)
Weight(kg) 7.4

Outline Drawing:

Steel 30 L/s Oil Mist Filter for Vacuum Pump / Vacuum System ProtectionSteel 30 L/s Oil Mist Filter for Vacuum Pump / Vacuum System Protection

Application :

Used with oil rotary vacuum pump or vacuum system.
