SRV300B Oil Lubricated Single Stage Rotary Vane Vacuum Pump 300m3/H
SRV300B Oil Lubricated Single Stage Rotary Vane Vacuum Pump 300m3/H
SRV300B Oil Lubricated Single Stage Rotary Vane Vacuum Pump 300m3/H
SRV300B Oil Lubricated Single Stage Rotary Vane Vacuum Pump 300m3/H
SRV300B Oil Lubricated Single Stage Rotary Vane Vacuum Pump 300m3/H
SRV300B Oil Lubricated Single Stage Rotary Vane Vacuum Pump 300m3/H
Specifications
Brand Name :
BSC
Model Number :
SRV300B
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
1000 sets per month
Delivery Time :
5-30 days
Packaging Details :
wooden box
Surface :
Painting
Color :
RAL 7047, Black
Pumping Rate :
240m3/h 50hz
Oil need :
9~12L
Noise level :
74
Motor power :
5.5kW
Normal rotational speed :
1450 50Hz
Description

300m3/h High Pumping Speed Single-Stage Oil Sealed Rotary Vane Vacuum Pump SRV300B

High pumping speed to maximize your productivity and performance

​Technical Data

Units SRV300B
Pumping Rate 50 Hz m³h-1 / Lmin-1 240/4000
60 Hz 290/4833
Inlet VG80
Outlet VG50
Oil Needs liter 23~28
Noise Level dB 75
Ultimate Vacuum Without gas ballast Pa/ mbar 8/8×10-2

Application

Vacuum metallurgy process

Thin-film coating technologies

Pharmaceutical freeze-drying

Optical coating

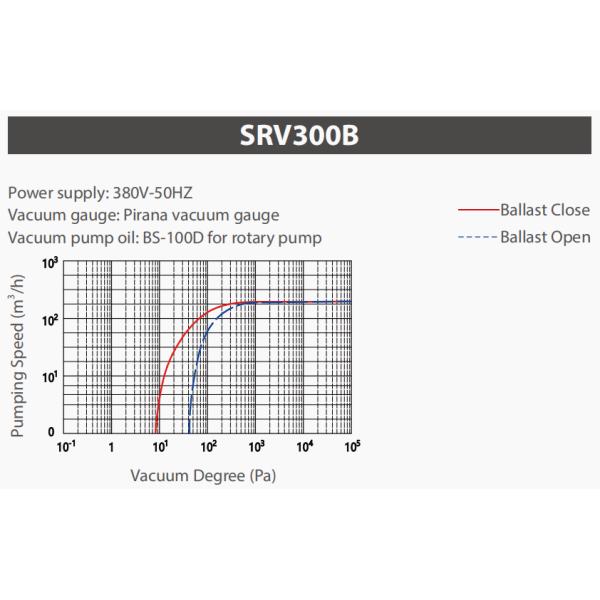

Performance Curve

SRV300B Oil Lubricated Single Stage Rotary Vane Vacuum Pump 300m3/H

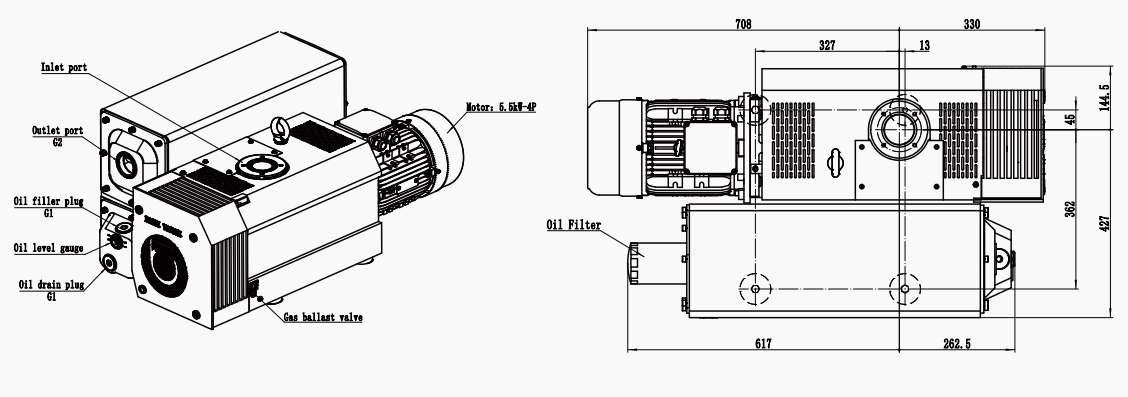

Dimensions

SRV300B

SRV300B Oil Lubricated Single Stage Rotary Vane Vacuum Pump 300m3/H

SRV300B Oil Lubricated Single Stage Rotary Vane Vacuum Pump 300m3/H
