Painting Dry Scroll Vacuum Pump 45m3/H Air Cooled Oil Free Vacuum Pump
Painting Dry Scroll Vacuum Pump 45m3/H Air Cooled Oil Free Vacuum Pump
Painting Dry Scroll Vacuum Pump 45m3/H Air Cooled Oil Free Vacuum Pump
Painting Dry Scroll Vacuum Pump 45m3/H Air Cooled Oil Free Vacuum Pump
Painting Dry Scroll Vacuum Pump 45m3/H Air Cooled Oil Free Vacuum Pump
Painting Dry Scroll Vacuum Pump 45m3/H Air Cooled Oil Free Vacuum Pump
Specifications
Brand Name :
BSC
Model Number :
IDSP45
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
200 sets per month
Delivery Time :
5-30 days
Packaging Details :
wooden box
Ultimate Vacuum :
0.05mbar (5Pa)
Color :
Sky Blue/Grey
Speed :
45m3/h (12.5L/s)
Operating Temp. :
10~40℃
Dimensions :
574*335*368mm
Surface :
Painting
Weight :
56kg
Cooling method :
air cooling
Input Voltage :
1-phase 100-120/200-240
Description

45 m³/h Dry Scroll Vacuum Pump IDSP45, Sky Blue Air-Cooled Oil-Free

Description

Scroll pump is a new kind of oil-free mechanical pump with features of compact construction, hermetically sealing, high vacuum, etc. Improved performance, exceptional pumping capability, quiet operation make IDSP the ultimate dry choice. As a high technology product, it has a highly technical requirement in design and manufacture. With the benefits of low consumption, long working life, high reliability, and low noise, it has the incomparable advantage in the application of clean process and has popular use in the market. In order to meet the featured application requirement of domestic and overseas customers, Baosi Vacuum developed the IDSP series dry scroll pump with excellent performance and high-cost efficiency.

​Technical Data

Model IDSP45
Nominal rotational speed rpm 1800
Nominal puming speed m³h-1 45
Motor power W

1100
Ultimate Vacuum mbar 0.05
Voltage input V 1-ph, 100-120/200-240
Noise level dB (A) 56
Inlet flange - KF40
Exhaust flange - KF25
Max water vapour pumping rate gh-1 200
Leak tightness mbar ls-1 ＜1×10-6
Weight kg 56
Cooling Method - Air-cooled

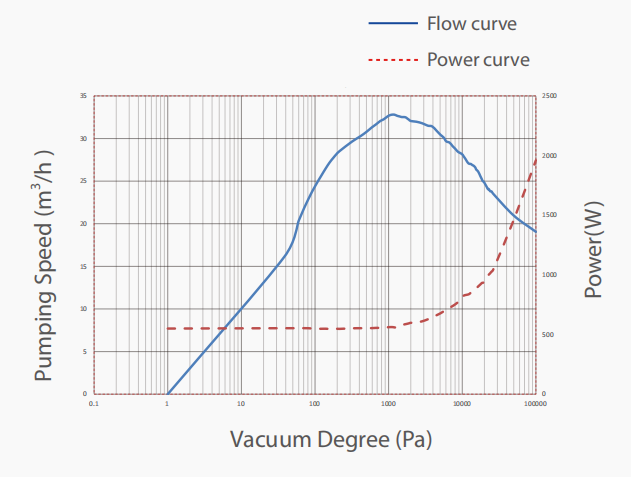

Performance Curve

Painting Dry Scroll Vacuum Pump 45m3/H Air Cooled Oil Free Vacuum Pump

Dimensions

Painting Dry Scroll Vacuum Pump 45m3/H Air Cooled Oil Free Vacuum Pump

Application

  • Electron microscopy
  • High energy physics
  • Mass spectrometry
  • Glove box
  • Beam welding/laser welding
  • Space simulation
  • Coating(PVD/CVD)

Painting Dry Scroll Vacuum Pump 45m3/H Air Cooled Oil Free Vacuum Pump
