60m3/h Two-stage Oil Rotary Vane Vacuum Pump DRV60 For Refrigeration System
60m3/h Two-stage Oil Rotary Vane Vacuum Pump DRV60 For Refrigeration System
Specifications
Brand Name :
BSC
Model Number :
DRV60
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
500 sets per month
Delivery Time :
5-10 days
Packaging Details :
wooden box
Product Name :
Two stage oil rotary vane vacuum pump
Color :
RAL 7047
Speed :
60 m³/h
Ultimate pressure :
0.5 Pa
Noise level :
65dB(A)
Power :
380V/400V 50hz/60hz
Surface :
Powder coating
Weight :
~87
Description

DRV60 60m3/h Two-Stage Oil Sealed Rotary Vane Vacuum Pump

Our wide range of oil-sealed vacuum pump are designed to suit the requirements of customer carefully looking to process resuits.

Features&Benefits

*The ues of non-spring rotary vane to achieve low noise, low vibration and long service life.

*Built-in oil check valve is ued to avoid the oil return phenomenon.

*Built-in forced fed oil pump is uesd toensure the long-term continues operation of the pump at atmospheric pressure.

*The ues of air cooling, oil cooling, water cooling and other cooling methods to ensure the good cooling effect, and make the long-term stable rumming of the pump as well as the stable puming performance.

*Reasonable structure has the advantages of easy assembly and disassembly, as well as the fast and easy maintenance.

When the ambient temperature range is under 40℃, the air inlet pressure is less than 1300Pa, it's allowed long-term continuous operation. However, when pumped gas relative humidity is above 90%, it should open the gas ballast valve.

​Technical Data

Units DRV60
Pumping Rate 50 Hz m³h-1 / Lmin-1 60/1000
60 Hz 70/1200
Ultimate Vacuum Gas ballast closed Pa/ mbar ≤0.5/5×10-3
Gas ballast opened ≤4/4×10-2
Inlet KF40
Outlet KF40
Oil Needs Liter 5
Noise Level dB 65

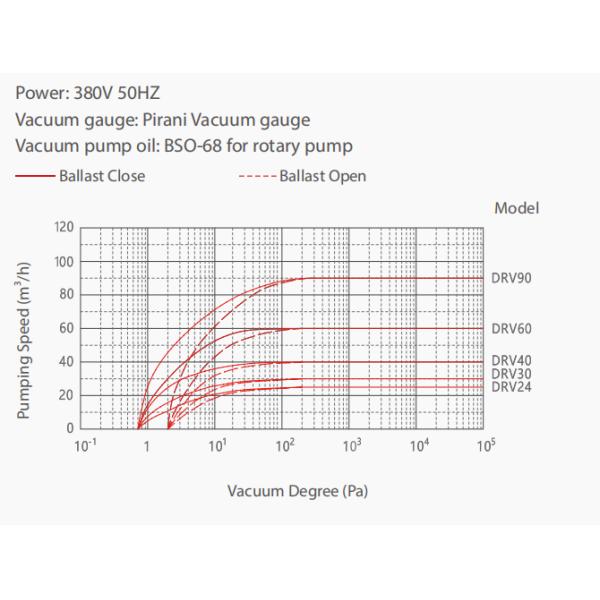

Performance Curve

60m3/h Two-stage Oil Rotary Vane Vacuum Pump DRV60 For Refrigeration System

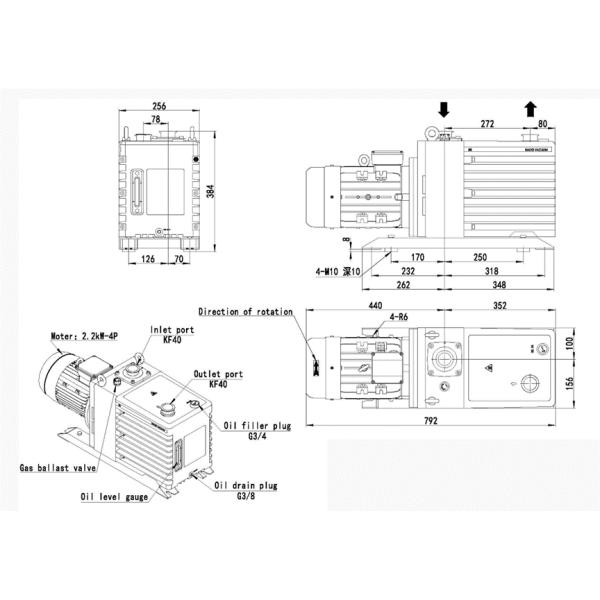

Dimensions

DRV60[90]

60m3/h Two-stage Oil Rotary Vane Vacuum Pump DRV60 For Refrigeration System

Application

Vacuum metallurgy

Thin film coating

Freeze drying
