2590m³/h boost pump, Painting Surface 7.5kW Roots Vacuum Pump Oil Free Low Noise Long Service Life
2590m³/h boost pump, Painting Surface 7.5kW Roots Vacuum Pump Oil Free Low Noise Long Service Life
Specifications
Brand Name :
BSC
Model Number :
BSJ600LC
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
1000 sets per month
Delivery Time :
30 days
Packaging Details :
wooden box
Surface :
Painting
Color :
Army Green
Pumping Rate :
2590 m3/h(43175L/min)
Material :
cast iron
Features :
Corrosion resistance
G.W. :
420kgs
N.W. :
368kgs
Meas. :
151*67*71cm
Description

600L/s (2000m³/min) 7.5kW Mechanical Army Green Booster Pump, Roots Pump BSJ600LC

Description :

Roots vacuum pumps, which are also called Roots blowers, are rotary plunger-type pumps where two symmetrically shaped impellors rotate in opposite directions inside the pump housing.

Characteristics:

  • The use of an oil-free intermediate seal, multiple sealed ways to ensure a high clean vacuum environment in the rotor chamber.
  • Advanced processing to ensure the good geometrical symmetry of the rotors, as well as low noise and long service life.

​Technical Parameter :

Model Units BSJ600LC
Pumping Rate 50 Hz m³h-1 / Lmin-1 2590/43175
60 Hz 3110/51844
Max Inlet Pressure 50Hz Pa 8.0x103
60Hz Pa 6.7x103

Ultimate Vacuum

 Pa/ mbar

0.04/4×10-4
Motor Power kW(hp) 7.5 (10.0)
Inlet -- ISO160
Outlet -- ISO100
Cooling Method Water-cooled
Lubricating oil specification BSO46
Gear Cover L 3.5
Hydraulic L 6.5
Shaft seal reservoir L 1.5
Ambient Temp. ℃ 5~35
Inlet - ISO160
Outlet - ISO100

Note: The value of 'Ultimate Pressure' in this sheet is measured by Pirani gauge when the Baosi special pump oil is used,and the value should be 4x10-3 if the Mcleod gauge is used.

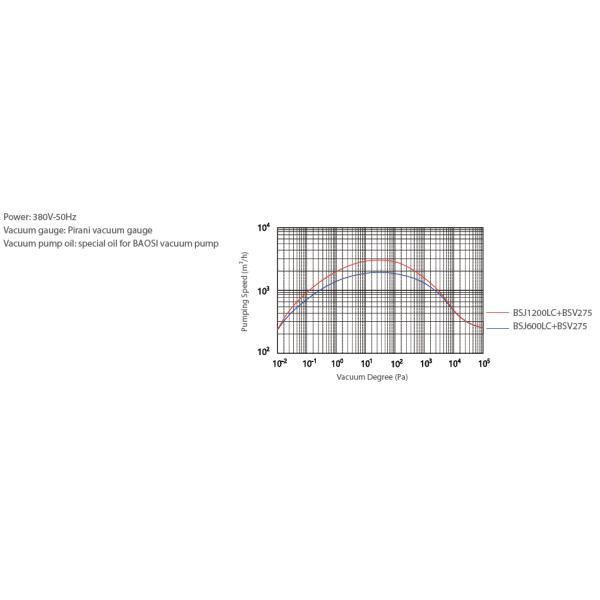

Performance Curve:

2590m³/h boost pump, Painting Surface 7.5kW Roots Vacuum Pump Oil Free Low Noise Long Service Life

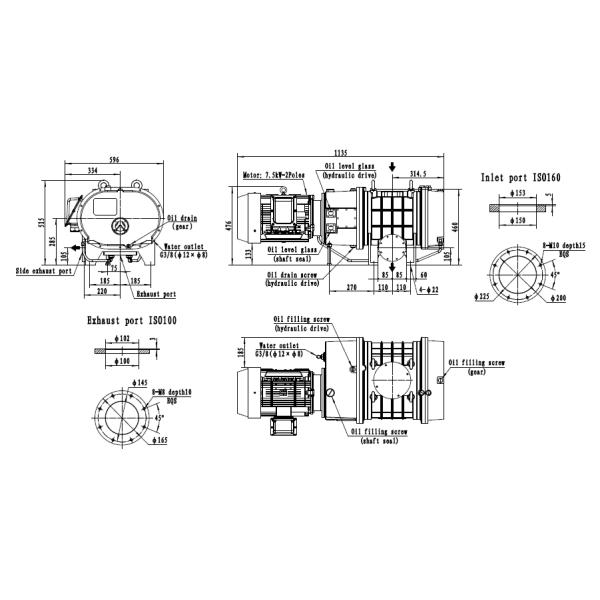

Dimensions:

2590m³/h boost pump, Painting Surface 7.5kW Roots Vacuum Pump Oil Free Low Noise Long Service Life

2590m³/h boost pump, Painting Surface 7.5kW Roots Vacuum Pump Oil Free Low Noise Long Service Life

Applications

We provide you with individual support,we train you and we offer 24/7 service worldwide.

  • Vacuum distillation
  • Vacuum packaging
  • Thin film coating
  • Freez drying
  • Electrical engineering
  • Printing
  • Surface treatment technique
  • Wind Energy
  • Ceramics and glasses
