BSJ600L 7.5KW Roots Vacuum Pump Oil Free Intermediat Seal Aluminium Alloy Material
BSJ600L 7.5KW Roots Vacuum Pump Oil Free Intermediat Seal Aluminium Alloy Material
Specifications
Brand Name :
BSC
Model Number :
BSJ600L
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
1000 sets per month
Delivery Time :
5-30 days
Packaging Details :
wooden box
Surface :
Painting
Color :
Army Green
Pumping Rate :
2000 m3/h(33330L/min)
Material :
Aluminium alloy
Features :
Corrosion resistance
G.W. :
248kgs
N.W. :
227kgs
Meas. :
127*66*72cm
Description

600L/s (2000m³/min) 7.5kW Mechanical Army Green Booster Pump, Roots Pump BSJ600L

Description :

Roots vacuum pumps ,which are also called Roots blowers,are rotary plunger type pumps where two symmetrically shaped impellors rotate in opposite directions inside the pump housing.

Characteristics:

  • The use of oil-free intermediat seal,multiple sealed way to ensure the high clean vacuum environment in the rotor chamber .
  • Advanced proceesing to ensure the good geometrical symmetry of the rotors,as well as low noise and long service life.
  • The whole rotors is made of aluminium alloy which has the charateristics of fast corrosion resistance and energy-efficient.

​Technical Parameter :

Model Units BSJ600L
Pumping Rate 50 Hz m³h-1 / Lmin-1 2000/33330
60 Hz 2400/40000
Max Inlet Pressure 50Hz Pa 8.0x103
60Hz Pa 6.7x103

Ultimate Vacuum

 Pa/ mbar

0.04/4×10-4
Motor Power kW(hp) 7.5 (10.0)
Inlet -- VG200
Outlet -- VF200
Cooling Method Water cooled
Oil Need L 2.0
Ambient Temp. ℃ 5~40
Vacuum Pump Oil -- BSO-46

Note: The value of 'Ultimate Pressure' in this sheet is measured by Pirani gauge when the Baosi special pump oil is used,and the value should be 4x10-3 if the Mcleod gauge is used.

Performance Curve:

BSJ600L 7.5KW Roots Vacuum Pump Oil Free Intermediat Seal Aluminium Alloy Material

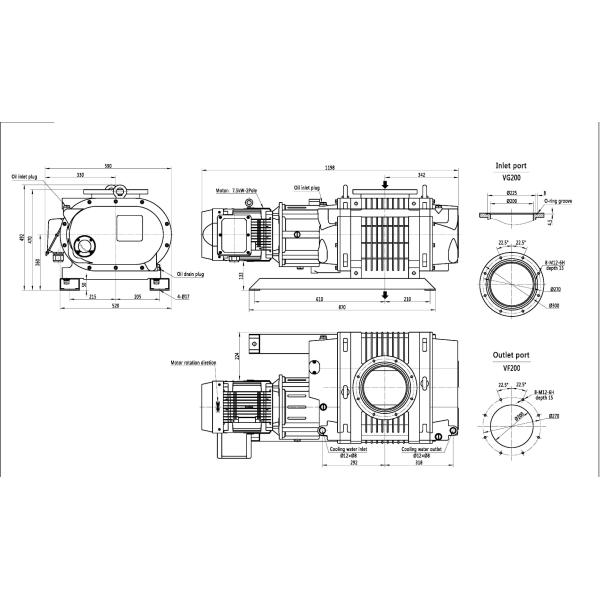

Dimensions:

BSJ600L 7.5KW Roots Vacuum Pump Oil Free Intermediat Seal Aluminium Alloy Material

BSJ600L 7.5KW Roots Vacuum Pump Oil Free Intermediat Seal Aluminium Alloy Material

Applications

We provide you with individual support,we train you and we offer 24/7 service worldwide.

  • Vacuum distillation
  • Vacuum packaging
  • Thin film coating
  • Freez drying
  • Electrical engineering
  • Printing
  • Surface treatment technique
  • Wind Energy
  • Ceramics and glasses
