Corrosion Resistance Mechanical Booster Vacuum Pump Low Noise 65 * 34 * 24cm
Corrosion Resistance Mechanical Booster Vacuum Pump Low Noise 65 * 34 * 24cm
Specifications
Brand Name :
BSC
Model Number :
BSJ30L
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD 1920 per set
Payment Terms :
T/T
Supply Ability :
1000 sets per month
Delivery Time :
5-30 days
Packaging Details :
Carton
Surface :
Painting
Color :
Army Green
Pumping Rate :
100 m3/h(1667L/min)
Material :
Aluminium alloy
Features :
Corrosion resistance
G.W. :
30kgs
N.W. :
29kgs
Meas. :
65*34*24cm
Description

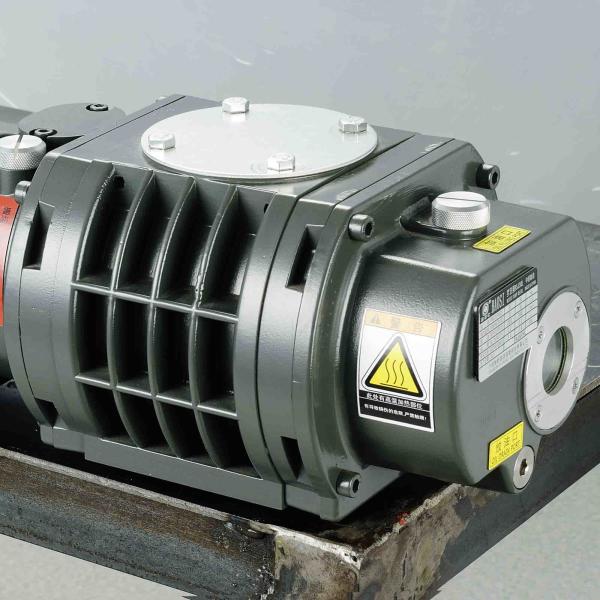

30L/s (100m³/h) 0.4kW Mechanical Army Green Booster Pump,Roots Pump BSJ30L

Description :

Roots vacuum pumps ,which are also called Roots blowers,are rotary plunger type pumps where two symmetrically shaped impellors rotate in opposite directions inside the pump housing.

Characteristics:

  • The use of oil-free intermediat seal,multiple sealed way to ensure the hight clean vacuum environment in the rotor chamber .
  • Advanced proceesing to ensure the good geometrical symmetry of the rotors,as well as low noise and long service life.
  • The whole rotors is made of aluminium alloy which has the charateristics of fast corrosion resistance and energy-efficient.

​Technical Parameter :

Model Units BSJ30L
Pumping Rate 50 Hz m³h-1 / Lmin-1 100/1667
60 Hz 120/2000
Max Inlet Pressure 50Hz Pa 1.2x103
60Hz Pa 9.2x103

Ultimate Vacuum

 Pa

4×10-2
Motor Power kW(hp) 0.4(0.55)
Inlet -- VG50
Outlet -- VF50
Cooling Method Water cooled
Oil Need L 0.4
Ambient Temp. ℃ 5~40
Vacuum Pump Oil -- BSO-46

Note: The value of 'Ultimate Pressure' in this sheet is measured by Pirani gauge when the Baosi special pump oil is used,and the value should be 4x10-3 if the Mcleod gauge is used.

Performance Curve:

Corrosion Resistance Mechanical Booster Vacuum Pump Low Noise 65 * 34 * 24cm

Dimensions:

Corrosion Resistance Mechanical Booster Vacuum Pump Low Noise 65 * 34 * 24cm

Corrosion Resistance Mechanical Booster Vacuum Pump Low Noise 65 * 34 * 24cm

Applications

  • Vacuum distillation
  • Vacuum packaging
  • Thin film coating
  • Freez drying
  • Electrical engineering
  • Printing
  • Surface treatment technique
  • Wind Energy
  • Ceramics and glasses

We provide you with individual support,we train you and we offer 24/7 service worldwide.
