Stainless Steel 430 Concertina Razor Barbed Wire
Stainless Steel 430 Concertina Razor Barbed Wire
Stainless Steel 430 Concertina Razor Barbed Wire
Stainless Steel 430 Concertina Razor Barbed Wire
Specifications
Brand Name :
TAIYE
Model Number :
TZ115
Certification :
ISO9000
Place of Origin :
China
MOQ :
200 rolls
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
50 Tons per week
Delivery Time :
Within 15 days or as your need
Packaging Details :
Waterproof Paper +Woven Bags or carton packing
Name :
Concertina Razor Wire Razor Barbed Wire
Material :
galvanized or stainless steel 430,304,316
Type :
Cross or single
Blade shape :
BTO-22,30, CBT-60,65
Application :
security fence
place of original :
China
Description

The Production Process of Concertina Razor Wire Razor Barbed Wire

The Production Process of Concertina Razor Wire Razor Barbed Wire Razor barbed wire also called blade barbed wire. It is a new type of protective net, widely used in industrial and mining enterprises, garden apartments, border guard posts, military fields,prisons, detention centers,etc.
The Production Process of Concertina Razor Wire Razor Barbed Wire Specification:
Outside diameter
No. of loofs
Standard Length per coil
Type
Notes
450mm
33
8M
CBT-65
single coil
500mm
41
10M
CBT-65
single coil
700mm
4
10M
CBT-65
single coil
960mm
53
13M
CBT-65
single coil
500mm
102
16M
BTO- 15 22 30
Cross type
600mm
86
14M
BTO- 15 22 30
Cross type
700mm
72
12M
BTO- 15 22 30
Cross type
800mm
54
10M
BTO- 15 22 30
Cross type
960mm
52
9M
BTO- 15 22 30
Cross type

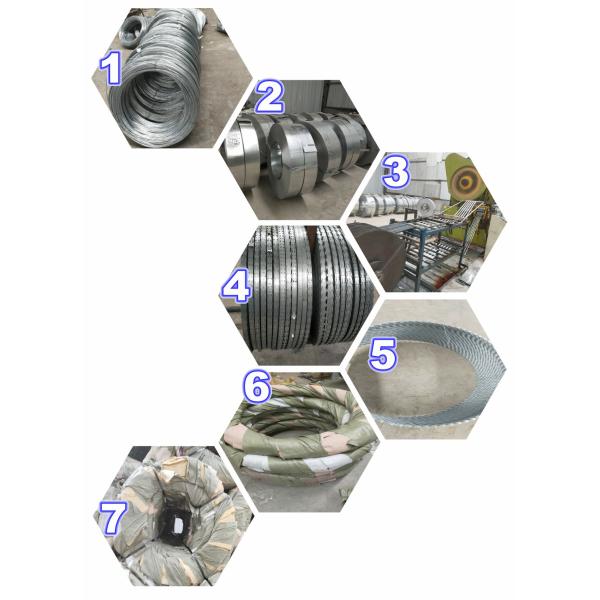

The Production Process of Concertina Razor Wire Razor Barbed Wire
1. Mterials:hot dipped galvanized wire and hot dipped galvanized sheet
2.Using machine to punch the sheet into mutiply blade sheets
3.Using machine to mix the galvanized wire with blade sheets together
4.If with,clips,then make clips on the razor wire coils.
5.Wrap with inner waterproof paper,outer woven bags.
6.Using the iron steel sheet to bundle 100 or more coils to a big bundle,like picture 7.
