Specifications
Brand Name :
Taiye
Model Number :
415
Certification :
Test Report
Place of Origin :
ANPING COUNTY HEBEI CHINA
MOQ :
1ton
Price :
Price negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Cash
Supply Ability :
5tons per day
Delivery Time :
15-25 work days
Packaging Details :
Inner waterproof paper with woven bag outside
Called :
Factory Price of Concertina Double Circle BTO30 BTO22 Razor Wire Barrier
Razor Wire Type :
Concertina Double Circles
Feature :
Easier to use
Package :
Inner waterproof paper with woven bag outside
Material :
304 Stainless Steel
Razor Blade Type :
BTO30 BTO22
Description

Anping Taiye Factory Price of Concertina Double Circle Stainless Steel BTO30 BTO22 BTO11 Razor Wire Barrier

Anping County Taiye Metal Wire Mesh Products Co.,Ltd is a factory which specialized in Razor Wire, Barbed Wire, Wall Spikes, Mesh Fencing more than 9 years. Razor Wire Barrier can be supply directly from our factory, so will save middle trading company fee, and make sure the good quality. Any requirements of the products can be meet.

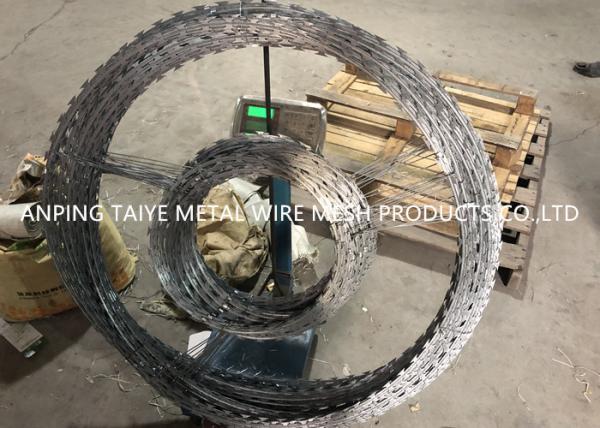

Concertina Double Circle Stainless Steel BTO30 BTO22 BTO11 Razor Wire Barrier is made up of small circle and larger circle razor wire.

One is Used 304 Stainless Steel Wire Linked together by small circles and large circles. Common Size is 450mm+980mm

Another is used Clips linked together at the bottom of small circles and large circles and common size is 450mm+730mm.

Outside Diametar

No. of Loops

Standard Length per Coil

Type

Notes

450mm 33 7-8M CBT-60.65 Single coil
500mm 56 12-13M CBT-60.65 Single coil
700mm 56 13-14M CBT-60.65 Single coil
960mm 56 14-15M CBT-60.65 Single coil

450mm

56

8-9M (3 CLIPS)

BTO-10.12.18.22.28.30

Cross type

500mm

56

9-10M (3 CLIPS)

BTO-10.12.18.22.28.30

Cross type

600mm

56

10-11M (3CLIPS)

BTO-10.12.18.22.28.30

Cross type

600mm

56

8-10M (5 CLIPS)

BTO-10.12.18.22.28.30

Cross type

700mm

56

10-12M (5CLIPS)

BTO-10.12.18.22.28.30

Cross type

800mm

56

11-13M (5CLIPS)

BTO-10.12.18.22.28.30

Cross type

900mm

56

12-14M (5CLIPS)

BTO-10.12.18.22.28.30

Cross type

960mm

56

13-15M (5CLIPS)

BTO-10.12.18.22.28.30

Cross type

980mm

56

14-16M (5CLIPS)

BTO-10.12.18.22.28.30

Cross type

Concertina Double Circle Stainless Steel BTO30 BTO22 BTO11 Razor Wire Barrier need two circles same loops no. like both 55loops or as ur requirements


Concertina Double Circle Stainless Steel BTO30 BTO22 BTO11 Razor Wire Barrier Material is Stainless Steel including SS304 and SS316. The best quality is SS316, but the cost also be the highest. So much clients choose SS304 material, not only the quality is good also cost be accepted by us. Its performance is better than galvanized. Suitable for high corrosive areas such as coasts, chemical and etc. Stainless steel wire’s corrosion resistance is much stronger than other materials. Like Galvanized wire can stay 1 years, but Stainless Steel Razor Wire can stay much more 10 years.


Concertina Double Circle Stainless Steel BTO30 BTO22 BTO11 Razor Wire Barrier is kind of BTO blade type

BTO

(Barbed Tape Obstacle)

11
22
30



BTO30 Razor Blade Specification
Razor Thickness 0.45±0.05mm
Barb Length 30±2mm
Barb Width 18mm
Barb Space 40mm
Core Wire Dia. 2.0-3.0mm
Package Inner waterproof paper with woven bag outside

BTO11 Razor Blade Specification
Razor Thickness 0.45±0.05mm
Barb Length 11±2mm
Barb Width 15mm
Barb Space 26mm
Core Wire Dia. 2.0-3.0mm
Package Inner waterproof paper with woven bag outside

BTO11 Razor Blade Specification
Razor Thickness 0.45±0.05mm
Barb Length 11±2mm
Barb Width 15mm
Barb Space 26mm
Core Wire Dia. 2.0-3.0mm
Package Inner waterproof paper with woven bag outside


Concertina Double Circle Stainless Steel BTO30 BTO22 BTO11 Razor Wire Barrier Application:
Concertina Double Circle BTO30 Razor Wire Mobile Security Barrier is kind of goverment purchase products and used by military and police. Make easier to secure and control some public emergency events, protect a place or location of the demonstrators or rioters who try to enter /penetrate the defense.

Concertina Double Circle Stainless Steel Razor Wire Barrier BTO30 BTO22 BTO11
