Specifications
Brand Name :
Taiye
Model Number :
401
Certification :
Test Report
Place of Origin :
Anping County Hebei China
MOQ :
1ton
Price :
Discussed
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability :
20tons per day
Delivery Time :
within 10days after receiving ur deposit
Packaging Details :
Inner waterproof paper with woven bag outside
Named :
Hot Dipped Galvanized Razor Wire BTO11 Barbed Blade Type
Razor Blade Type :
BTO11
Material :
Hot Dipped Galvanized
Roll Meters :
Based on Roll Weight
Weight of per roll :
As your requirements usually is 10kg
Coil Diameter :
450mm 500mm 600mm 700mm 800mm 900mm 1000mm
Description

Hot Dipped Galvanized Razor Wire BTO11 Barbed Blade Type

Hot Dipped Galvanized is a kind of Hot Dipped Galvanized Razor Wire BTO11 Barbed Blade Type's material
1. Material: Hot Dipped Galvanized sheet Hot Dipped Galvanized Wire / Electro Galvanized Wire Hot Dipped Galvanized Sheet
Introduce the Barbed Blade Type of Hot Dipped Galvanized Razor Wire BTO11 Barbed Blade Type
1. Core Wire Diameter: 2.7±0.1mm / 2.5±0.1mm
2. Razor Barbed sheet thickness: 0.45±0.05mm
BTO11 Razor Blade Specification
Razor Thickness 0.45±0.05mm
Barb Length 11±2mm
Barb Width 15mm
Barb Space 26mm
Core Wire Dia. 2.0-3.0mm
Package Inner waterproof paper with woven bag outside
3. Razor Loop Diameter: 600mm
Other Coil diameter for u choose: 450mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm.
450mm(3 clips), 500mm(3 clips), 600mm(3 clips)900mm(5 clips) are the usually sizes
Razor Wire Roll Diameter With Clips Choose
450mm 500mm 600mm 700mm 750mm 800mm 900mm 1000mm
3 clips 3 clips 3 clips

3 clips

5 clips

3 clips

5 clips

3 clips

5 clips

3 clips

5 clips

3 clips

5 clips
Usually clients choose roll diameter 500mm used on the top of fence or wall

4. Razor Barbed Wire per coil weight: Be produced as customers requirements. (common weight is 7KG 10KG, 12kg, 14kg)
Hot Dipped Galvanized Razor Wire BTO11 Barbed Blade Type Length so we know except the coil diameter affect the length, also need to confirm the Razor Barbed Wire Blade Type and Per Roll Weight. Razor Barbed Wire is a tensile products. The greater the stretch strength, the greater the distance between them, and the length will be more longer. For example:
1. 500mmx10kg/roll
Cover length is 30cm between each loop, then 10kg can get 10-12m
2. 500mmx10kg/roll
Cover length is 15cm between each loop, then 10kg can get 6-7m

Hot Dipped Galvanized Razor Wire BTO11 Barbed Blade Type Per Meter Direction for use
Concertina Razor Wire usually attached on "Y" or "V" support and should be mounted razor wire with wire diameter Ф=4mm/3mm/2.8mm in circles with razor wire coil diameters Ф=500mm, with distance between circles 150mm-400mm.

Hot Dipped Galvanized Razor Wire BTO11 Barbed Blade Type Paking and shipping

1. Each roll with inner waterproof paper and woven bag outside, then 50rolls or 100roll be a bundle by metal strip.

2. Be bundled razor wire put on pallet.
3. Bulk razor wire put into cartons.
4. Packaged razor wire barrier into wooden case.
5. Bulk waterproof paper inner with woven bag outside razor rolls loaded in 40'HQ/27ton

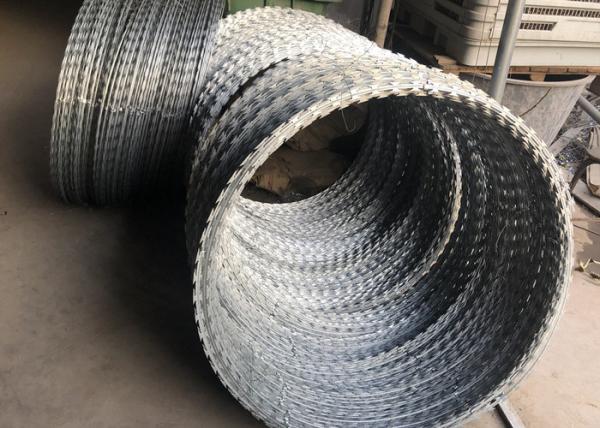

The Following pic is after cliped 950mm coil diameter Hot Dipped Galvanized BTO11 Razor Wire Blade Type which wating to packed on the workshop. And this type much popular in In Vietnam and Korea Market

Hot Dipped Galvanized Razor Wire BTO11 Barbed Blade Type For Popular
