Specifications
Brand Name :
Taiye
Model Number :
108
Certification :
ISO9001 ISO140001
Place of Origin :
ANPING CHINA
MOQ :
1tons
Price :
To be negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20tons per day
Delivery Time :
5-8 work days
Packaging Details :
25kg/roll
Material :
Galvanized/PVC/Electrophoretic/Stainless Steel
Surface Treatment :
Electro galvanized, Hot dip galvanized, Plastic sprayed
PVC PE coating thickness :
0.4mm-0.6mm
Color :
Different colors or length are available
Description

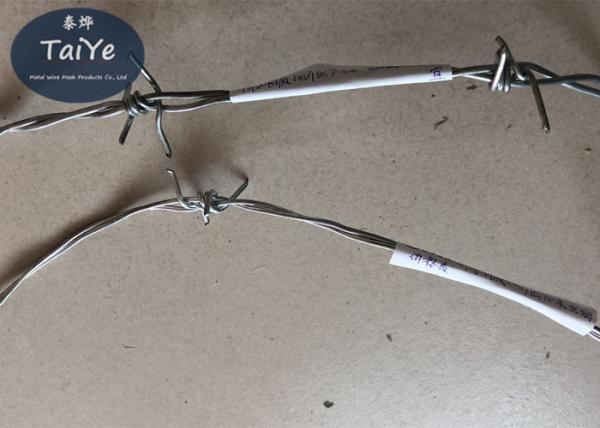

Double Twisted Hot Dipped Galvanized Barbed Wrie Used In Protecting Of Grass Boundary
Barbed wire, also known as Barb wire , less often bob wire or, in the southeastern United States, Bobbed wire, is a type of steel fencing wire constructed with sharp edges or points arranged at intervals along the strands. It is used to construct inexpensive fences and is used at top walls surrounding secured property.

Barbed wire is a kind of modern security fencing materials fabricated with high-tensile wire. It can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized or PVC coated to prevent corrosion.

Barbed Wire is easy to be installed in many ways. Straight barbed tape wire is installed quickly. It also can save cost and at the same time achieve the effect of frightening and stopping.
Material: high quality low carbon steel wire, stainless steel wire, PVC coated wire.
Surface Treatment: Electro galvanized, Hot dip galvanized, Plastic sprayed.
Usage: Barbed wire can be used as the protection net in industry, agriculture, animal husbandry, dwelling house, plantation of fencing, grass boundary, railway, highway and so on.

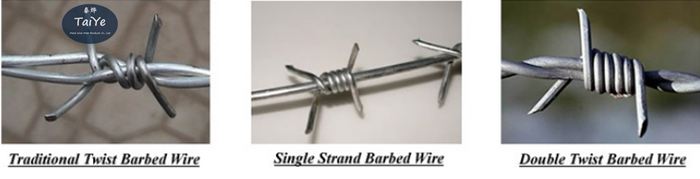

Traditional Twisted Barbed Wire

Gauge of Strand and Barb in BWG Approximate Length Per Kilo In meter
Barbs Spacing3” Barbs Spacing4” Barbs Spacing5” Barbs Spacing6”
12x12 6.0617 6.7590 7.2700 7.6376
12x14 7.3335 7.9051 8.3015 8.5741
12-1/2x12-1/2 6.9223 7.7190 8.3022 8.7221
12-1/2x14 8.1096 8.8140 9.2242 9.5620
13x13 7.9808 8.8990 9.5721 10.0553
13x14 8.8448 9.6899 10.2923 10.7146
13-1/2x14 9.6079 10.6134 11.4705 11.8553
14x14 10.4569 11.6590 12.5423 13.1752
14-1/2x14-1/2 11.9875 13.3671 14.3781 15.1034
15x15 13.8927 15.4942 16.6666 17.5070
15-1/2x15-1/2 15.3491 17.1144 18.4060 19.3386


PE PVC Coated Barbed Wire, Stoving Varnish Barbed Wire

PVC coated barbed wire; PE barbed wire Before coating After coating Barb Distance(cm) Barb Length(cm) Tensile Strength(kg)
1.0mm-3.5mm 1.4mm-4.0mm 7.5-15 1.5-3 40-50
BWG11#-20# BWG8#-17#
SWG11#-20# SWG8#-17#
PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request


Single Barbed Wire

Wire Gauge(mm) Barbs Spacing(inch)
1.8x1.8 1.96’’-5.90’’
2.0x2.0
2.2x2.0
2.2x2.2
2.5x2.2
2.6x2.2
2.7x2.2
2.8x2.2
3.0x2.2


Double Twisted Barbed Wrie
Variety: Double Twisted Barbed Wire
Wire Materials: Low Carbon Steel , Middle Carbon Steel
General Use: Barbed Wire mainly serves in protecting of grass boundary, railway, highway,etc.

Wire Gauge(mm) Barbs Spacing(inch)
1.4x1.4 4’’-5’’
1.5x1.5
1.6x1.6
1.7x1.7
1.8x1.8
1.9x1.9
2.0x2.0


Packaging
1. in bulk
2. by wood axle
3. by cardboard then on pallets
4. customer choice

our service

1. 15 days after receiving the deposit shipment
2. We will choose high quality low price of the shipping company
3. Loading the goods, we will track all the way, to ensure product safety, quick to arrive at the designated ports
4. Arrival of the goods, we will provide installation instructions and subsequent technical guidance
5. Company for products and accessories, for a long time to be able to provide various
products accessories at cost to the customer at any time

Above information just for reference, other specification we can according to your request,

if you have any questions about our razor barbed wire, pls contact us by email.


Anping TaiYe Wire Mesh Products Co.,LTD is a professional manufacturer and exporter of series wire mesh products.We mainly produce and supply the following products: Concertina razor wire, Razor wire flat wrap, Razor mesh;Wall spike, Security wall spike, Anti climb wall spike, Fence spike; Mobile security barrier, Rapid deployment barrier Concertina, Mobile razor wire security barrier; barbed wire, PVC coated barbed wire, Double twisted barbed wire; Razor mesh, Razor wire mesh fencing: Palisade fence, Welded mesh fence, Euro fence, Chain Link fence and other wire mesh products. Dozens of various kinds in about one thousand specifications. Besides supplying the domestic market, we have also established good business relationship with many countries such as European countries, the USA, Middle –east, Southeast Asia and some other countries and regions.
Any question kindly contact our sales manager Rill.
Skype is rill1990,
email is rill90@hotmail.com or rill@aptaiye.com,
mob or weichat is 86 18731838063 or RillJI.
Glad to provide professional service for u.
