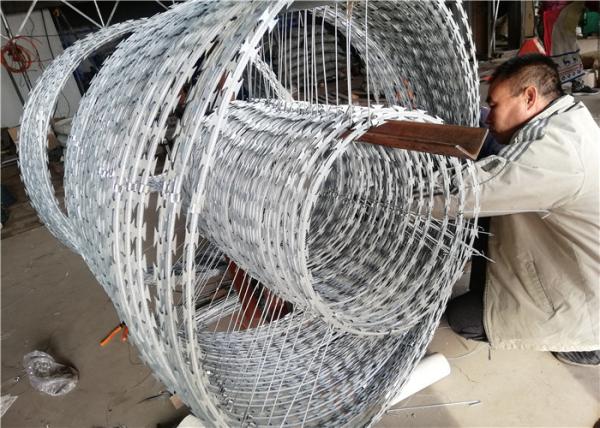

Security Conductor Razor Coil Electric Spiral Barbed Wire For Isolation Protection
Security Conductor Razor Coil Electric Spiral Barbed Wire For Isolation Protection
Security Conductor Razor Coil Electric Spiral Barbed Wire For Isolation Protection
Security Conductor Razor Coil Electric Spiral Barbed Wire For Isolation Protection
Specifications
Brand Name :
TAIYE
Model Number :
RBW - 98
Certification :
ISO9001 10001
Place of Origin :
China
MOQ :
5 tons
Price :
Factory price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
150 tons per month
Delivery Time :
8 - 22 days
Packaging Details :
waterproof paper inner, woven bag outside or with carton
Circle diameter :
380 - 980mm
Shape :
Spiral
Wire gauge :
1.4mm~2.6mm
Specimen :
Free provide
Application :
Isolation Protection
Keywords :
razor barbed wire
Description

Security conductor razor coil electric blade wire spiral barbed wire

Conductor/alarm coil

  • As intruder moves onto the outer coil (earth) they touch the inner coil (live) which activates an alarm (or if the intruder earths the inner live coil he sets-off the alarm)
  • Optional Repulse ShockIn addition to the alarm detection system, a high voltage (5-7000 Volt) current can be fed into the system which will give an intruder a non-lethal repulse shock (this is an optional feature of the energiser)

Energised wire

This “live return” cable forms a circuit which is used to detect cutting of the barrier, it is fixed to the end of the inner live wire and is considered optional as the act of cutting is also likely to cause a short circuit which will activate the alarm

Razor wire

The outer coil which is made of barbed tape concertina/razor wire provides a fierce physical deterrent (this also prevents access to the live inner coil by innocent people)

Energiser

It is connected to a 220 Volt / 12 Volt charger transformer which supplies the power. It also includes a 2-day battery

Production Step
1 Punch the steel plate to be razor sharp
2 Put the core wire into the razor plate
3 Put the clips on the razor wire
4 Package

Security Conductor Razor Coil Electric Spiral Barbed Wire For Isolation Protection
