CBT -65 Razor Concertina Barbed Wire HD Galvanized Zinc Low Carbon Steel
CBT -65 Razor Concertina Barbed Wire HD Galvanized Zinc Low Carbon Steel
CBT -65 Razor Concertina Barbed Wire HD Galvanized Zinc Low Carbon Steel
CBT -65 Razor Concertina Barbed Wire HD Galvanized Zinc Low Carbon Steel
Specifications
Model Number :
RBW-101
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Brand Name :
TAIYE
Certification :
ISO9001 10001
Place of Origin :
China
MOQ :
1000 kgs
Price :
Plz tell me ur destination port
Supply Ability :
150000 kgs per day
Delivery Time :
2.5 - 3 weeks
Packaging Details :
Wrap in waterproof paper and place on a tray or directly in a carton
Weave method :
Cross type
Razor shape :
Concertina
Coil length :
10m
Coil weight :
10kg
Acting on :
wall top, fence top, around barbed wire
Function :
Preserve
Description

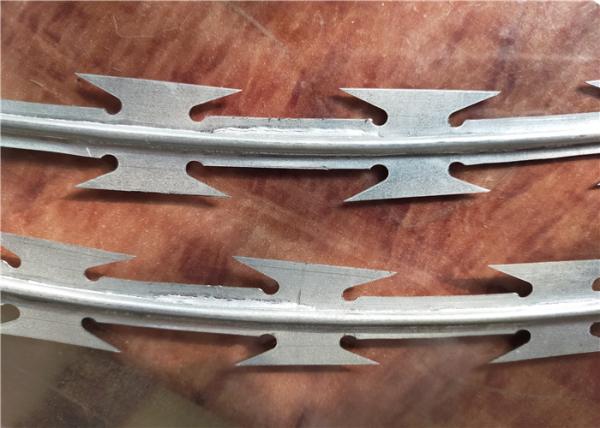

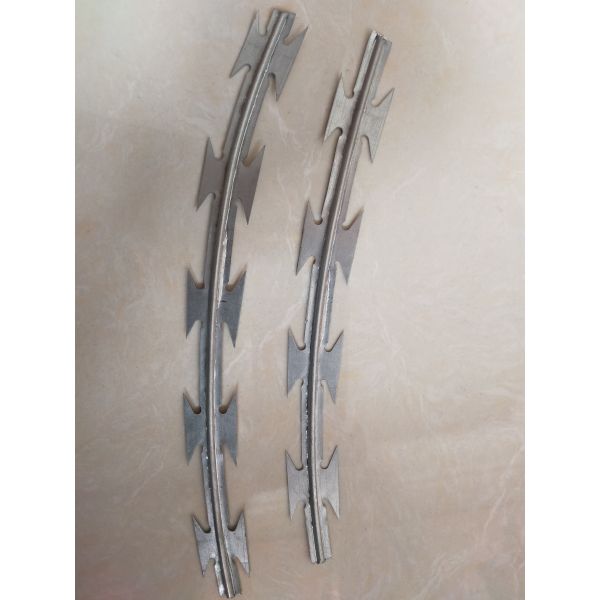

CBT-65 Razor Wire Concertina Barbed Wire HD Galvanized Zinc Low Carbon Steel

CBT-65 - Material. HD Galvanized Zinc

  • Thickness: 0.50 mm +/- 0.05 mm.
  • Wire diameter: 2.50 mm +/- 0.05 mm.
  • Bars length: 65 mm +/- 1 mm.
  • Bars spacing: 100 mm +/- 2 mm.
  • 450 mm diameter and 35 rings.
  • Straight length: 46.5 m per roll after pull open.
  • Standard covered length: 10 m.
  • Inner packing: in plastic film.
  • Outer packing: in weaving brag strip.

Razor Wire Production Processing

Razor Barbed Wire Production line must include 4 stations:

  1. Razor Blade Punching Station: Decoiler, Press, Recoiler.
  2. Concertina Razor Blade Profiling Station: Decoiler, Wire Stand, Profiler.
  3. Clipping Station.
  4. Packing Station How to make the razor wire? Here are the detailed production processing about it.

First, the raw material is the galvanized sheet, stainless steel sheet or low carbon steel sheet, then cut the bar of tapes. The width of bar can be changeable according to the razor type.


Second, the razor wire cutting machine perforates the bars, then divides the sheet to two layers. With the processing of cutting, then get into the process of blade. Flatten the blade bar.


Third, combine the blade bar and inner wire. The wire is usually using stainless steel wire or iron wire. The wire in the middle of blade bar, with the machine, then the blade bar wrappers the wire. Last form the razor barbed wire, then pack the razor barbed wire into rolls. In the surface, use the sack cloth for package.

CBT -65 Razor Concertina Barbed Wire HD Galvanized Zinc Low Carbon Steel
