500mm 15m BTO -22 Galvanized Razor Wire Concertina Wire For Wire Fence
500mm 15m BTO -22 Galvanized Razor Wire Concertina Wire For Wire Fence
500mm 15m BTO -22 Galvanized Razor Wire Concertina Wire For Wire Fence
500mm 15m BTO -22 Galvanized Razor Wire Concertina Wire For Wire Fence
500mm 15m BTO -22 Galvanized Razor Wire Concertina Wire For Wire Fence
500mm 15m BTO -22 Galvanized Razor Wire Concertina Wire For Wire Fence
500mm 15m BTO -22 Galvanized Razor Wire Concertina Wire For Wire Fence
500mm 15m BTO -22 Galvanized Razor Wire Concertina Wire For Wire Fence
500mm 15m BTO -22 Galvanized Razor Wire Concertina Wire For Wire Fence
500mm 15m BTO -22 Galvanized Razor Wire Concertina Wire For Wire Fence
Specifications
Brand Name :
Taiye
Model Number :
TD6
Certification :
ISO9000
Place of Origin :
Hebei，China
MOQ :
200 Rolls
Payment Terms :
D/A, L/C, T/T, Western Union
Supply Ability :
50 Tons per week
Delivery Time :
Within 15 days or as your need

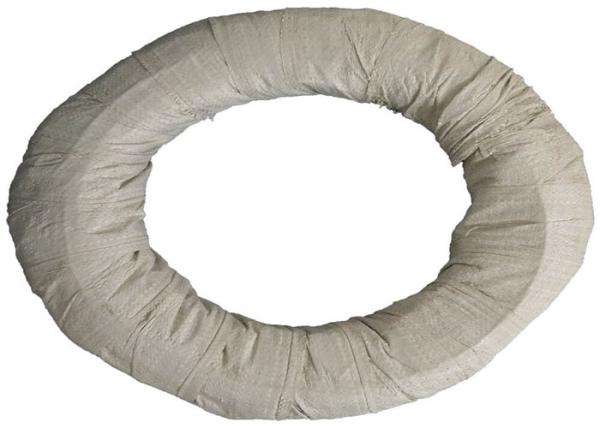

Packaging Details :
Waterproof Paper inside and woven bags outside
Product name :
500mm 15m BTO-22 Galvanized Concertina Razor Wire For Wire Fence
Wire diameter :
2.5mm
Material :
low carbon steel wire or ss wire
Type :
BTO-10,18,22,28,30. CBT-60,65
Sheet Thickness :
0.5mm
Weight :
5-25kg/roll
Packing :
waterproof paper inside and woven bags outside
Price :
To be negotiated
Description

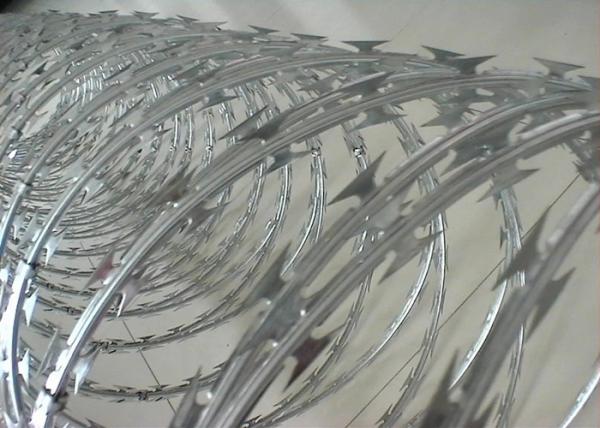

500mm 15m BTO-22 Galvanized Concertina Razor Wire For Wire Fence

Product Description

Blade barbed wire is also called blade barbed wire, blade barbed wire net, is a new type of protective net.At present, blade stabbing rope has been widely used in many countries' industrial and mining enterprises, garden apartments, border guard posts, military fields, prisons, detention houses, government buildings and other countries' security facilities.
Installation method of blade thorn rope is divided into :(snake abdomen type) spiral blade thorn rope, linear blade thorn rope, flat blade thorn rope, blade thorn wire welding net, etc., blade thorn rope can be roughly divided into three forms: spiral type, linear type, spiral cross type.

500mm 15m BTO -22 Galvanized Razor Wire Concertina Wire For Wire Fence

Specification

Model Thickness wire diameter Length Width Spacing
BTO-10 0.5±0.05mm 2.5±0.1mm 12±1mm 13mm 26mm
BTO-12 0.5±0.05mm 2.5±0.1mm 12±1mm 15mm 26mm
BTO-18 0.5±0.05mm 2.5±0.1mm 18±1mm 15mm 33mm
BTO-22 0.5±0.05mm 2.5±0.1mm 22±1mm 15mm 34mm
BTO-28 0.5±0.05mm 2.5±0.1mm 28±1mm 15mm 34mm
BTO-30 0.5±0.05mm 2.5±0.1mm 30±1mm 18mm 34mm
CBT-60 0.5±0.05mm 2.5±0.1mm 60±1mm 32mm 96mm
CBT-65 0.5±0.05mm 2.5±0.1mm 65±1mm 21mm 100mm

Barbed Tape Wire Specification
Loop Outside Diameter No. of Loops Standard Length per Coil Type Notes
450mm 33 7-8M CBT-60.65 Single coil
500mm 56 12-13M CBT-60.65 Single coil
700mm 56 13-14M CBT-60.65 Single coil
960mm 56 14-15M CBT-60.65 Single coil
450mm 56 8-9m(3 CLIPS) BTO-10.12.18.22.28.30 Cross type
500mm 56 9-10M (3 CLIPS) BTO-10.12.18.22.28.30 Cross type
600mm 56 10-11M(3 CLIPS) BTO-10.12.18.22.28.30 Cross type
600mm 56 8-10M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
700mm 56 10-12M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
800mm 56 11-13M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
900mm 56 12-14M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
960mm 56 13-15M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
980mm 56 14-16M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type

Feature

1. High protection, it is almost impossible to climb.

2. High-strength steel core very difficult to cut off.

3. Powerful security fence barriers neat appearance.

4. Extremely simple to install, needs three to four to install molding.

5. Anti-corrosion, aging, sunscreen, weather.

Applications

• Borders

• Mines

• Seaports

• Substations

• Military Bases

• Explosives storage

• Embassies

• Prisons

• Farms

• Water reservoirs

• Airports

• Residential areas

• Oil depots

 • Government agencies• Railway barrier • Garden
500mm 15m BTO -22 Galvanized Razor Wire Concertina Wire For Wire Fence
