Garden Barbed Coil Razor Barb Wire Helical Wire Roll Galvanized Steel
Garden Barbed Coil Razor Barb Wire Helical Wire Roll Galvanized Steel
Garden Barbed Coil Razor Barb Wire Helical Wire Roll Galvanized Steel
Garden Barbed Coil Razor Barb Wire Helical Wire Roll Galvanized Steel
Garden Barbed Coil Razor Barb Wire Helical Wire Roll Galvanized Steel
Garden Barbed Coil Razor Barb Wire Helical Wire Roll Galvanized Steel
Specifications
Brand Name :
Taiye
Model Number :
R-05
Certification :
ISO9001 ISO140001
Place of Origin :
ANPING CHIINA
MOQ :
1Ton
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 tons per day
Delivery Time :
3-7 days
Packaging Details :
Inner waterproof paper with woven bag outside, 50 coils be a bundle.
Material :
Galvanized,iron,stainless steel,PVC Coated
Inner wire Dia :
2.5-2.7mm
Razor Thickness :
0.6±0.05mm
Razor Barb Length :
10-65mm
Razor Barb Spacing :
26-100mm
Razor Barb Width :
13-32mm
Razor Type :
Cross Razor or Single Razor
Price :
To be negotiated
Description

Razor Wire Roll Fencing Garden Barbed Coil Razor Barb Wire Helical Wire Roll - Galvanized Steel

1.Product introduction

Razor Barbed Wire is also named concertina coils or razor type barbed wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets.

* Construct a high-security perimeter around your property with this razor wire!


* This razor wire, suitable for all types of outdoor use, will be a perfect choice for protecting your garden or commercial
property.


* The design with blades keeps unwanted guests out of your garden.


* Made of high-quality galvanized steel, our razor wire is weather- and water-resistant, and highly durable.


* It is ideal for commercial as well as residential use.

2.Common specifications

Specification
Thickness
(mm)
Wire Dia.
(mm)
Barb Length
(mm)
Barb Width
(mm)
Barb spacing
(mm)
BTO-10 0.45±0.05 2.0-3.0 10±1 13±1 26±1
BTO-12 0.45±0.05 2.0-3.0 12±1 15±1 26±1
BTO-18 0.45±0.05 2.0-3.0 18±1 15±1 33±1
BTO-22 0.45±0.05 2.0-3.0 22±1 15±1 34±1
BTO-28 0.45±0.05 2.0-3.0 28±1 15±1 45±1
BTO-30 0.45±0.05 2.0-3.0 30±1 18±1 45±1
CBT-60 0.45±0.05 2.0-3.0 60±2 32±1 100±2
CBT-65 0.45±0.05 2.0-3.0 65±2 21±1 100±2

Concertina Coil Specification
Coil Diameter 300mm 450mm 730mm 730mm 980mm 980mm 1250mm
(12inch) (18inch) (28inch) (36inch) (36inch) (36inch) (50inch)
Recommended Stretch Length 4m 10m 15-20m 10-12m 10-15m 8m 8m
Coil Diameter When Stretched 260mm 400mm 600mm 620mm 820mm 850mm 1150mm
Spiral Turns Per Coil 33 54/55 54/55 54/55 54/55 54/55 54/55
Clips Per Spiral 3 3 3 5 5 7 9

Outside Dia. No.of Loops Standard Length per Coil Typs Notes
300mm 33 4-5m CBT-60.65 Single coil
450mm 33 7-8m CBT-60.65 Single coil
500mm 56 12-13m CBT-60.65 Single coil
700mm 56 13-14m CBT-60.65 Single coil
960mm 56 14-15m CBT-60.65 Single coil
450mm 56 8-9m(3 clips) BTO-10.12.18.22.28.30 Cross type
500mm 56 9-10m(3 clips) BTO-10.12.18.22.28.30 Cross type
600mm 56 10-11m(3 clips) BTO-10.12.18.22.28.30 Cross type
600mm 56 8-10m(5 clips) BTO-10.12.18.22.28.30 Cross type
700mm 56 10-12(5 clips) BTO-10.12.18.22.28.30 Cross type
800mm 56 11-13m(5 clips) BTO-10.12.18.22.28.30 Cross type
900mm 56 12-14m(5 clips) BTO-10.12.18.22.28.30 Cross type
960mm 56 13-15m(5 clips) BTO-10.12.18.22.28.30 Cross type
980mm 56 14-16m(5 clips) BTO-10.12.18.22.28.30 Cross type

3.Popular specification

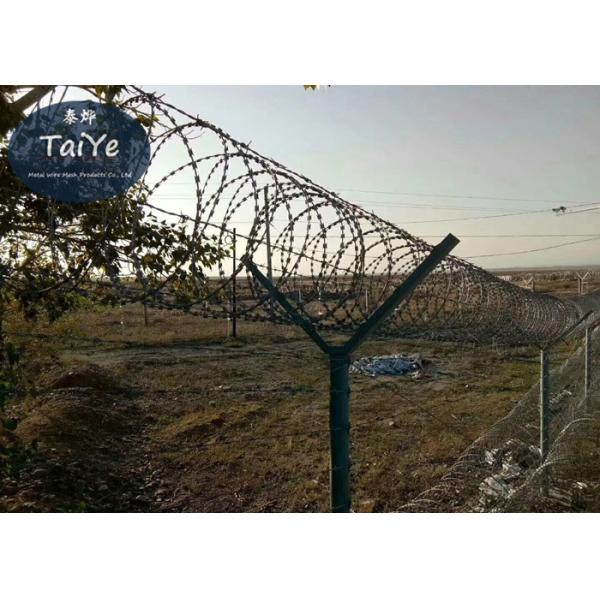

Most Population Hot Dipped Galvanized BTO22 Razor Barbed Wire for Shipping Protect is named as its Hot Dipped Galvanized Material and the Razor blade style is BTO22.

From the material it divided into Electric Galvanized Razor Barbed Wire, Hot Dipped Galvanized Razor Barbed Wire, High Galvanized Razor Barbed Wire.

Compare the three material quality:
Electric Galvanized Razor Barbed Wire<Hot Dipped Galvanized Razor Barbed Wire<High Galvanized Razor Barbed Wire.

Garden Barbed Coil Razor Barb Wire Helical Wire Roll Galvanized Steel

4.Package

Garden Barbed Coil Razor Barb Wire Helical Wire Roll Galvanized Steel

5.Application

Garden Barbed Coil Razor Barb Wire Helical Wire Roll Galvanized Steel
