Android 8.1 Handheld Data Collector Barcode Scanner With Display Screen

Specifications

Brand Name :

Barway

Model Number :

NFT10

Certification :

CE FCC RoHS, FCC, ce, RECH, RoHS, Other

Place of Origin :

JiangSu,China

MOQ :

1pcs

Price :

265-286USD

Payment Terms :

Western Union, L/C, T/T

Supply Ability :

1000box per week

Delivery Time :

7-15days

Packaging Details :

neutral packing

Item :

PDA

Operation :

Android 8.1

Dispaly :

5.65 inch,HD,IPS,2160*1080 resolution

Warranty :

1 year

Memory :

4GB+32GB

Weight :

262g

Size :

158mm*76mm*13.9mm

Description

Barway 4G Handheld Data Collector Scanner Terminal NFT10 With Display For Warehouse

Feature

NFT10 4G LTE Android rugged handheld PDA with Fingerprint ID handset IP67
NFT10 5.7' PDA handheld computer android data collector mobile terminal
Android 9 Rugged Phone,Rugged Biometric Fingerprint QR barcode scanning PDA for warehouse

Specification

System Configuration
CPU	Octa-core,2.3Ghz MTK6765
Operating system	Android 8.1
Memory	32 GB +4 GB(Support DDR4 64GB+6GB)
Extended slot	T-flash card (Up to 64GB )
Display	5.65 inch,HD ,IPS,2160*1080 resolution
Touch Panel	LG / JDI glass screen
camera: (optional)	13MP,PDAF, with flash LED rear camera, 5MP front camera
Exit Window	Corning®Gorilla®glass
Keypad	Three virtual keys: Menu key, home key, back Key;1 power key, 2 scan keys, 2 volume keys

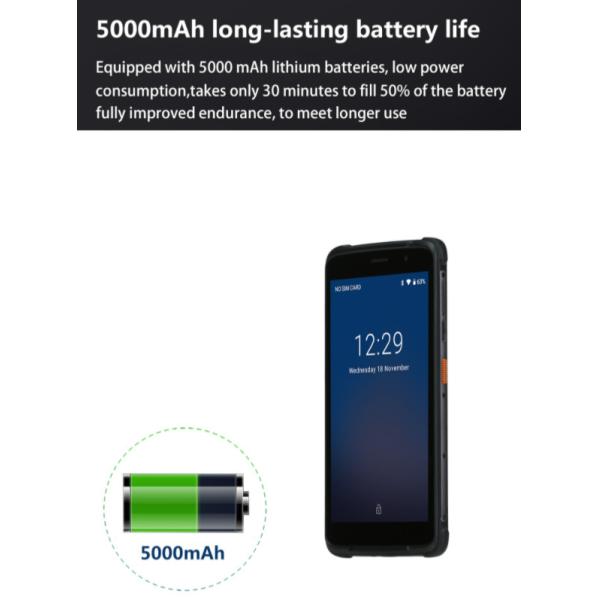

Battery	5000mAh removable lithium polymer battery
Audio	Built-in microphone /Micro USB
Notification	Vibration prompt /LED prompt/audio prompt
Vibration Motor	Built-in programmable vibration motor
Sensor	Proximity/Light Senor,Accelerometer,Gyro E-compass

Operating Environment
Working Temp	-20℃ ~ 55℃
Storage Temp	-40°C ~ 60°C
	-40 °C~ 70°C (-40°F to 158°F) battery not included
Electrostatic	Conforms to ±12 kV air discharge, ±8 kV direct discharge
Relative humidity	0 ~ 95%(non-condensing)
Protection grade	IP67 grade
Anti-dropping	1.5-meter drops to concrete ground
Development Tools	Android SDK
Programming Language	Java

Structural Parameters
Dimensions	158mm76mm13.9mm
Weight	236g (battery included)

Communication Transmission
Wireless WAN (Network frequency)	GSM: B2/3/5/8 WCDMA: B1/2/5/8 CDMA/CDMA-EVDO:BC0 TD-SCDMA:B34/39 TDD-LTE: B34/38/39/40/41 FDD-LTE: B1/3/4/5/7/8/12/17
Wireless WAN (Data service)	GSM/WCDMA/TDD-LTE/FDD-LTE
Wireless LAN	Wi-Fi 802.11ac/a/b/g/n (Dual-band:2.4G+5G).
Bluetooth	Bluetooth 5.0
GPS	1. Support GPS/AGPS/Bei Dou 2. Receive more than 12 satellites. 3. Accuracy: within 10M 4. Hot start average < 15s, open space/cold start average < 60s The drift value is the true value

1D Laser Scanner
Scan Resolution	≥5 mil
Rotate Angle	±35°
Pitch Angle	±65°
Skew Tolerance	±50°
Ambient Light	Sunlight:10,000ft.Candles(107,640Lux) Artificial Light:450ft.Candles(4844Lux)
Scan Frequency	104 ± 12/sec
Laser Safety Grade	Class II

ID/2D Area Imager
Scan Resolution	3 mil c39/128
Rotate Angle	Omnidirectional
Pitch Angle	±45°
Skew Tolerance	±65°
Scan Frequency	1 scans / 50ms
Laser Safety Grade	Class II
Image Resolution	844(H) X 640(V)
Image Frame	60fps
Light Source System	White light,laser aiming
Minimum Printing Contrast	20%

NFC(optional)
Protocol	ISO14443A/14443B
Frequency	13.56MHz
Reading Distance	2cm

Input/Output Ports
USB Port	1PCS( Type-C)
SIM Card Port	Dual micro-SIM card slots

Accessories
Standard	Charger, USB date cable, Battery, Lanyard, Steel film
Optional	Protective case,cradle 1.Bluetooth code scanning ring (with charger base) 2.Transparent TPU case 3.TOF measurement volume back clamp module / compatible with built-in TOF module 4.UHF RFID handle ( with battery)

Product&Application
