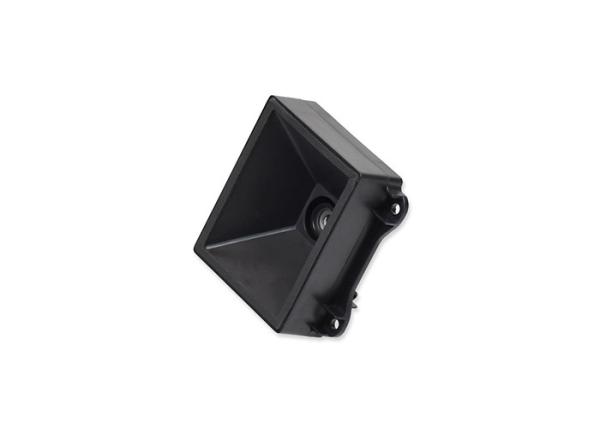

Sizable Scan Window 2d Barcode Module Low Power Consumption Turnstile Usage
Sizable Scan Window 2d Barcode Module Low Power Consumption Turnstile Usage
Sizable Scan Window 2d Barcode Module Low Power Consumption Turnstile Usage
Sizable Scan Window 2d Barcode Module Low Power Consumption Turnstile Usage
Sizable Scan Window 2d Barcode Module Low Power Consumption Turnstile Usage
Sizable Scan Window 2d Barcode Module Low Power Consumption Turnstile Usage
Sizable Scan Window 2d Barcode Module Low Power Consumption Turnstile Usage
Sizable Scan Window 2d Barcode Module Low Power Consumption Turnstile Usage
Sizable Scan Window 2d Barcode Module Low Power Consumption Turnstile Usage
Sizable Scan Window 2d Barcode Module Low Power Consumption Turnstile Usage
Specifications
Brand Name :
Rakinda
Model Number :
LV4200-PT OEM Scan Engine
Certification :
CE FCC ROHS
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Negotiation
Payment Terms :
Western Union, T/T, paypal
Supply Ability :
1000 piece for a week
Delivery Time :
3-10 working days
Packaging Details :
package in carton;
Name :
Auto Code Scanner
Image Sensor :
752×480 CMOS
MOQ :
1 piece
Usage :
Turnstile
Module :
LV4200-PT Qr Code Reader
Description

Sizable Scan Window Scanner with Good Performance in Scanning Mobile Phone Screen

Introduction:
This compact, lightweight engine fits easily into even the most space-constrained equipment such as data collectors, meter readers, ticket validators and PDAs.

The LV4200-PT OEM scan engines, armed with the Rakinda patented, a computerized image recognition system, bring about a new era of 2D barcode scan engines.

The LV4200-PT 2D barcode decoder chip ingeniously blends technology and advanced chip design & manufacturing, which significantly simplifies application design and delivers superior performance and solid reliability with low power consumption.

The LV4200-PT supports all mainstream 1D and standard 2D barcode symbologies (e.g., PDF417, QR Code

M1/M2/Micro and Data Matrix) as well as GS1-DataBarTM(RSS) (Limited/Stacked/Expanded versions).

It can read barcodes on virtually any medium - paper, plastic card, mobile phones and LCD displays.

LV4200_Datasheet_en.pdf

Features:
Application Scenarios (as an accessory) Self-service cabinets used in e-commerce, express delivery services and smart homes; ATMs; kiosks; queue machines; lottery machines; certificate makers.

1. Technology
Armed with LongView ’s fifth-generation of technology, the scan engine can decode even poor quality barcodes with ease.

2. Snappy On-Screen Barcode Capture
The LV4200-PT can capture on -screen barcodes effortlessly even when the screen is covered with protective film or set to its lowest brightness level.
3. Multi-Interface
The LV4200-PT supports USB and TTL - 232 interfaces to meet diverse customer needs.

4. Two-In-One Design
Seamless integration of image sensor and decoder board makes the scan engine small, lightweight and easy for integration.

5. Low Power Consumption
The advanced technology incorporated in the scan engine promises low power consumption and prolonged service life.

Sizable Scan Window 2d Barcode Module Low Power Consumption Turnstile Usage

Performance Image Sensor 752×480 CMOS
Light Source White LED
Symbologies 2D PDF417, QR Code (QR1/2, Micro), Data Matrix (ECC200, ECC000,
050, 080, 100, 140)
1D Code128, UCC/EAN-128, AIM-128, EAN-8, EAN-13, ISBN/ISSN,
UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of 5,
Industrial 25, Standard 25, Code 39, Codabar, Code 93, Code 11,
Plessey, MSI-Plessey, GS1-DataBarTM(RSS), (RSS-14, RSS-Limited,
RSS-Expand)
Resolution ≥5mil
Typical Depth of Field EAN-13 10mm-55mm (13mil)
PDF 417 15mm-35mm (6.67mil)
Data Matrix 15mm-40mm (10mil)
Operating 160mA
Sleep 12mA
Dimensions 65.1(D)×61.1(W)×43.6(H)mm
Weight 41.5g
EnvironmentaL Operating Temperature -20℃~+60℃ (-4°F~140°F)
Storage Temperature -40℃~+80℃(-40°F~176°F)
Humidity 5%~95% (non-condensing)
Ambient Light 0~100000lux (natural light)
Accessories USB Cable Used to connect the LV 4200 to a host device.

With over 18 years of experience in barcode scan technology industry area, Rakinda has achieved some important success by enormous effort. The scanner products are certified by CE, FCC and RoHS etc.
Rakinda sticks to "born to challenge" to deliver best products and services to our customers. Rakinda does the best to be your reliable business partner.

FAQ

Q1: Can I get some samples? Are they free?

A1: We support 1pc sample order. Samples should be paid.

Q2: Can I get extra cables for the scanners?

A2: Yes you can. We will provide according to your request.

Q3: What is your payment method?

A3: We accept online credit card, TT, Paypal, Western Union.

Q4: Can I visit your factory:

A4: Yes, you are warmly welcome.

Q5: How long is your warranty time:

A5: 1 Year.

Q6: Where can we download the user manual of the scanners?

A6: We will send by email after you get samples.

Q7: What's the lead time?

A7: For sample, it is typically within 3 days. For bulk order, it depends on quantity and model you order.

Q8: Can you provide OEM service?

A8: Yes. We need further discuss about details.
