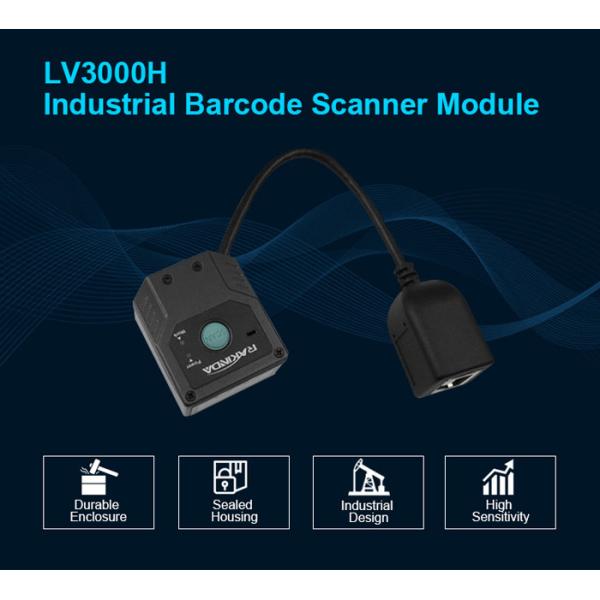

LV3000H High Precision USB Interface 1D 2D Barcode Scanner for ATM with Fast Speed to Scan Aztec
LV3000H High Precision USB Interface 1D 2D Barcode Scanner for ATM with Fast Speed to Scan Aztec
LV3000H High Precision USB Interface 1D 2D Barcode Scanner for ATM with Fast Speed to Scan Aztec
LV3000H High Precision USB Interface 1D 2D Barcode Scanner for ATM with Fast Speed to Scan Aztec
LV3000H High Precision USB Interface 1D 2D Barcode Scanner for ATM with Fast Speed to Scan Aztec
LV3000H High Precision USB Interface 1D 2D Barcode Scanner for ATM with Fast Speed to Scan Aztec
LV3000H High Precision USB Interface 1D 2D Barcode Scanner for ATM with Fast Speed to Scan Aztec
LV3000H High Precision USB Interface 1D 2D Barcode Scanner for ATM with Fast Speed to Scan Aztec
LV3000H High Precision USB Interface 1D 2D Barcode Scanner for ATM with Fast Speed to Scan Aztec
LV3000H High Precision USB Interface 1D 2D Barcode Scanner for ATM with Fast Speed to Scan Aztec
Specifications
Brand Name :
RAKINDA
Model Number :
LV3000H
Certification :
FCC, CE
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
Western Union, T/T, paypal
Supply Ability :
1000 PCS/ week
Delivery Time :
within 5 working days after receiving the balance
Packaging Details :
Normal craft paper and foam.
 Resolution :
>=3 mil
 Interface :
RS-232, USB
Dimensions :
63(W)*45(D)*28(H)
Weigh :
75g
Notification :
Beep, LED indicator
Drop :
1.5m
Description

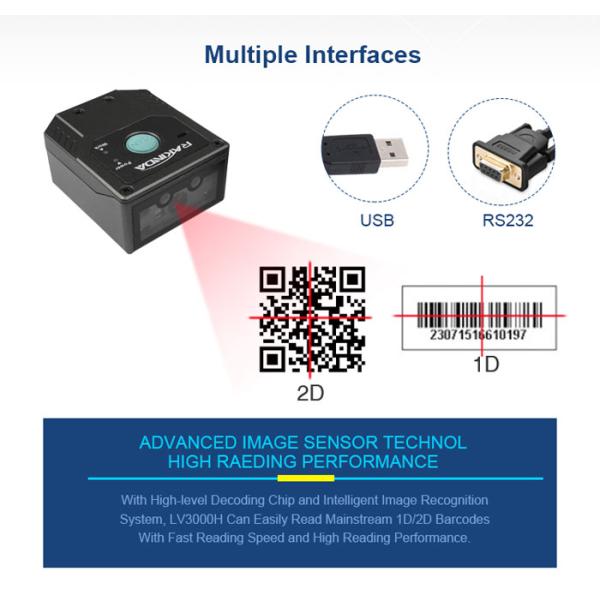

With High-level Decoding Chip and Intelligent Image Recognition System, LV3000H Can Easily Read Mainstream 1D/2D Barcodes With Fast Reading Speed and High Reading Performance.

LV3000H High Precision USB Interface 1D 2D Barcode Scanner for ATM with Fast Speed to Scan AztecLV3000H High Precision USB Interface 1D 2D Barcode Scanner for ATM with Fast Speed to Scan AztecLV3000H High Precision USB Interface 1D 2D Barcode Scanner for ATM with Fast Speed to Scan AztecLV3000H High Precision USB Interface 1D 2D Barcode Scanner for ATM with Fast Speed to Scan AztecLV3000H High Precision USB Interface 1D 2D Barcode Scanner for ATM with Fast Speed to Scan AztecLV3000H High Precision USB Interface 1D 2D Barcode Scanner for ATM with Fast Speed to Scan AztecLV3000H High Precision USB Interface 1D 2D Barcode Scanner for ATM with Fast Speed to Scan Aztec

Product Parameters

Performance Image Sensor 1280*800 CMOS
Illumination Aiming White LED Laser Diode or Gree LED
Symbologies 2D PDF417, QR Code, Data Matrix, AZTEC, CSC, Maxicode, Micro QR, Micro PDF417, GM, Code One, ect.
1D EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Codabar, UCC/EAN 128, RSS, ITF, ITF-14, ITF6, Standard 25, Matrix 25, COOP 25, Industrial 25, MSI Plessey, Code 11, Code 93, Code 49, Code 16K, etc.
Resolution >=3 mil
Typical Depth of Foeld EAN-13 55-360mm(13mil)
Code 39 70-180mm(5mil)
PDF417 55-160mm(6.7mil)
Data Matrix 50-170mm(10mil)
QR Code 40-210mm(15mil)
Scan Mode Sense mode, Continuous mode, Level mode, Pulse mode
Scan Angle Roll:360d, Pitch:±55°, Skew:±55°
Field of View Horizontal 51°, Vertical 32°
Min Symbol Contrast 25%
Mechanical Electric Interface RS-232, USB
Dimensions 63(W)*45(D)*28(H)
Weigh 75g
Notification Beep, LED indicator
Rated Power Consumption 1622mW(typical)
Operating Voltage 5VDC±-5%
Current SVDC Operating 276.8mA(typical), 322.7mA(max.)
Standby 83.3mA
Environmental Operating Temperature -20℃ to 60℃(-4℉ to140℉)
Storage Temperature -40℃ to 70℃ (-40℉ to 158℉)
Humidity 5% to 95% (non-condensing)
ESD ± 14kV (air discharge), ±8kV (direct discharge)
Drop 1.5m
Sealing IP68
Certifications FCC Part1S Class& CE EMC Class B, RoHS, IEC60825, IEC62471, KC
Environmental Cable USB Used to connect the LV3000U to a host device
RS-232 Used to connect the LV3000U to a host device
Power Adapter DC5V adapter to power the LV3000U with RS-232 cable
