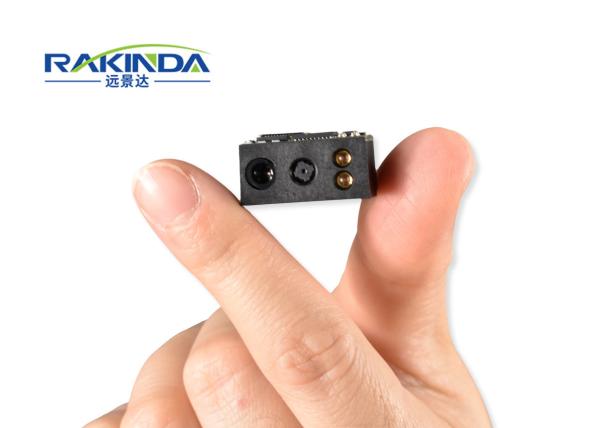

LV3296 2D QR Barcode Scanner Module Embedded TTL232 Interface In Handheld Scanner PDA
LV3296 2D QR Barcode Scanner Module Embedded TTL232 Interface In Handheld Scanner PDA
LV3296 2D QR Barcode Scanner Module Embedded TTL232 Interface In Handheld Scanner PDA
LV3296 2D QR Barcode Scanner Module Embedded TTL232 Interface In Handheld Scanner PDA
LV3296 2D QR Barcode Scanner Module Embedded TTL232 Interface In Handheld Scanner PDA
LV3296 2D QR Barcode Scanner Module Embedded TTL232 Interface In Handheld Scanner PDA
LV3296 2D QR Barcode Scanner Module Embedded TTL232 Interface In Handheld Scanner PDA
LV3296 2D QR Barcode Scanner Module Embedded TTL232 Interface In Handheld Scanner PDA
Specifications
Brand Name :
RAKINDA
Model Number :
LV3296
Certification :
FCC,CE,Rosh
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
Western Union, T/T, paypal
Supply Ability :
10000 pcs per month
Packaging Details :
17*14*7cm
Name :
Barcode scanner reader
Type :
OEM Scan Engine
Symbologies :
1D/2D
Interface :
TTL232
Wireless :
None
Category :
Compact Size, Excellent Performance
Dimensions :
21.2(W)×14(D)×11.1(H)mm
Weight :
4g
Operating Voltage :
3.3 VDC±10%
Image Sensor :
640×480 CMOS
Description

LV3296 2D QR Barcode Scanner Module Embedded in Handheld Scanner or PDA

LV3296 2D scanner module uses CMOS image decoding technology, with high performance, easy to scan 1d/2d bar code; integrated design, ideal for embedded all kinds of handheld terminal equipment, such as scanning guns, PDA, smart flat and so on.

LV3296 2D scanner module bar code reading engine, LV3096 is an upgraded version. The module uses excellent decoding technology, can quickly read all kinds of quality bar code which provide USB, TTL232 and TTL232 interface to meet the needs of more interfaces; decoder board and camera integrated design, the volume reduced to the extreme to meet the needs of all kinds of very small industrial handheld terminal applications.

LV3296 Datasheet.pdf

SPECIFICATIONS

Performance Image Sensor 640×480 CMOS
Illumination Red LED 625±10 nm
Aiming Red LED 625±10 nm
Symbologies 2D PDF417, QR Code (QR1/2, Micro), Data Matrix (ECC200, ECC000, 050, 080, 100, 140), Chinese Sensible Code
1D Code 128, UCC/EAN-128, AIM128, EAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of 5, Industrial 25, Standard 25, Code 39, Codabar, Code 93, Code 11, Plessey, MSI-Plessey, GS1-DataBarTM(RSS), (RSS-14, RSS-Limited, RSS-Expand)
Resolution* ≥4mil
Typical Depth of Field* EAN-13 50mm-365mm (13mil)
Code 39 40mm-165mm (5mil)
Data Matrix 35mm-115mm (10mil)
QR Code 35mm-145mm (15mil)
PDF 417 45mm-115mm (6.67mil)
Symbol Contrast* ≥25%
Scan Angle** Roll: 360°, Pitch: ±50°, Skew: ±50°
Field of View Horizontal 44°, Vertical 33.2°
Mechanical/ Interface TTL-232, USB (HID-KBW, COM Port Emulation, HID-POS)
Electrical Rated Power Consumption 437mW (typical)
Operating Voltage 3.3 VDC±10%
Current@3.3VDC Operating 141mA (typical), 198mA (max.)
Standby 10mA
Sleep <10uA
Dimensions 21.2(W)×14(D)×11.1(H)mm
Weight 4g
Environmental Operating Temperature -20℃ to 50℃(-4°F to 122°F)
Storage Temperature -40℃ to 70℃(-40°F to 158°F)
Humidity 5% to 95% (non-condensing)
Ambient Light 0~100,000lux
Certifications FCC Part15 Class B,CE EMC Class B
EVK Software development board, equipped with a trigger button, beeper and RS-232 & USB interfaces.
Accessories Cable USB Used to connect the EVK to a host device.
RS-232 Used to connect the EVK to a host device.
Power Adapter DC5V power adapter used to provide power for the EVK

LV3296 2D QR Barcode Scanner Module Embedded TTL232 Interface In Handheld Scanner PDA

RAKINDA is a company committed to the development up to barcode scanner technology at the core of the automatic identification system integration organizations, enjoyed several years of industry experience and excellent reputation, in Shenzhen and Hong Kong branches, and has a very skillful, experienced, innovative R & D and after-sales technical support service team.
