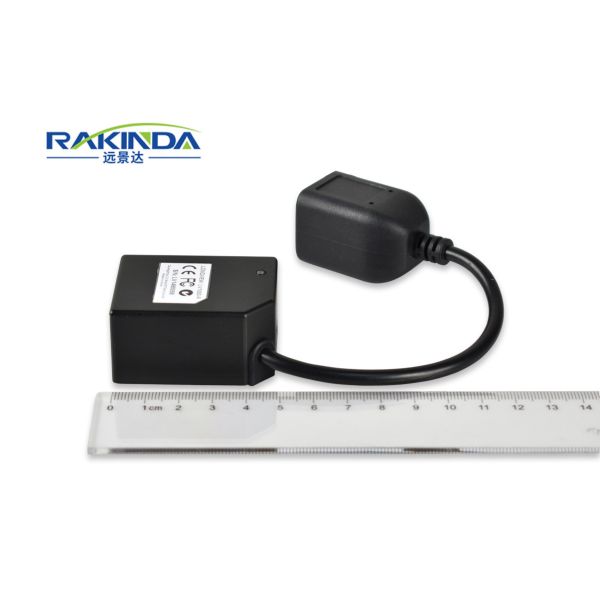

Auto Black Barcode Reader Module LV1000R Visible Red 632nm LED Light Source
Auto Black Barcode Reader Module LV1000R Visible Red 632nm LED Light Source
Auto Black Barcode Reader Module LV1000R Visible Red 632nm LED Light Source
Auto Black Barcode Reader Module LV1000R Visible Red 632nm LED Light Source
Specifications
Brand Name :
RAKINDA
Model Number :
LV1000R
Certification :
CE, RoHS
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
Western Union, T/T, paypal
Supply Ability :
1000 PCS/ week
Delivery Time :
within 5 working days after receiving the balance
Packaging Details :
barcode scanner+USB/RS232 Cable+ Power Adaptor(for RS232 only). Normal craft paper and foam.
Product name :
1D Barcode Reader Module
Type :
Barcode Scan Engine
Color :
Black
Weight :
70g
Payment :
T/T, Western Union, Paypal
Port :
Shenzhen
Delivery time :
within 5 working days after receiving the balance
Trade term :
FOB, CIF and others we can negotiate
Description

Auto Black Barcode Reader Module LV1000R Visible Red 632nm LED Light Source​

In some scanners, there's a single photoelectric cell and, as you move the scanner head past the product (or the product past the scanner head), the cell detects each part of the black-white barcode in turn. In more sophisticated scanners, there's a whole line of photoelectric cells and the entire code is detected in one go.

In reality, scanners don't detect zeros and ones and produce binary numbers as their output: they detect sequences of black and white stripes, as we've shown here, but convert them directly into decimal numbers, giving a decimal number as their output.

Features:

1. Mini Dememtion:49mm*37mm*26mm, easy to carry

2. Can Read All Standard 1D Barcodes Even on Electronic Screen

3. Support Android +Windows OS

4. Light Source: Visible Red Light 632nm LED

5. Sensor: Linear CCD Sensor

6. Scan Rate: Up to 300scans/sec

7. Widely Application in Retail, Warehouse, Store& Logistics Management

Technical Specifications of LV1000R Barcode Scan Engine

Product name Auto 1D Barcode Scanner Module
Item number LV1000R
Interface RS232/ USB
Image Sensor CCD
Symbologies Code128,EAN-13,EAN-8,Code39,UPC-A,UPC-E,Codabar, Interleaved 2 of 5,ISBN/ISSN,Code 93, UCC/EAN-128, GS1Databar, etc.
Precision ≥ 5mil (Condition: PCS=0.9, testing code: Code 39)
Light Source LED(622 nm - 628 nm)
Light Intensity 265 LUX (130 mm )
Depth of Field* 40mm-430mm
Print Contrast Signal ≥ 30%
Sensitivity

Pitch: ±65°@ 0°Roll and 0° Skew

Roll: ±30°@ 0°Pitch and 0° Skew

Skew: ±60°@ 0°Roll and 0° Pitch
Illumination 0 ~ 100,000 LUX
Power Consumption 1.25W
Voltage DC5V
Current

Working: 170mA

Idle: 65mA

Max: 250mA
Weight 70g
Dimensions 49(W)*37(D)*26(H)mm
Operating Temperature -5 ℃ to + 45 ℃
Storage Temperature -40 ℃ to + 60 ℃
Humidity 5% - 95% ( non-condensing )

Auto Black Barcode Reader Module LV1000R Visible Red 632nm LED Light Source

Barcode Scanner FAQ

Q1: Can I get some samples? are they free?

A1: Of course, but samples are not free.

Q2: What's the delivery time?

A2: Depend on product and quantity of your order,sample could be sent to you in 3 work days after receiving balance.

Q3: What about payment?

A3: Payment terms: T/T,West Union and L/C etc.

Q4: Can you list the product of your company?

A4: Barcode Scanner Module, Desktop Barcode Scanner, Handheld Barcode Scanner, Portable Barcode Scanner Module, Bluetooth RFID Scanner, POS Terminal, Android Mainboard etc.

Q5: What's the OS of the POS?

A5: Android and Windows,details please refer to the technical data of the Product.

Q6: Where can we download the SDK/user manual for some of your products?

A6: SDK/User manual will be sent to you by email after the sample order.

Q7: Warranty time?

A7: 1 year

Q8: Do you provide Evaluation Kit for testing barcode scanner module?

A8: Yes, but you need to pay for EVK separately.

Q9: Product OEM?

A9: Yes, but it requiries the certain MOQ and the cost need to be added separately.

Q10: Customer service?

A10: Any questions of product after your receipt, please contact us,we'll reply you in 24 hours.
