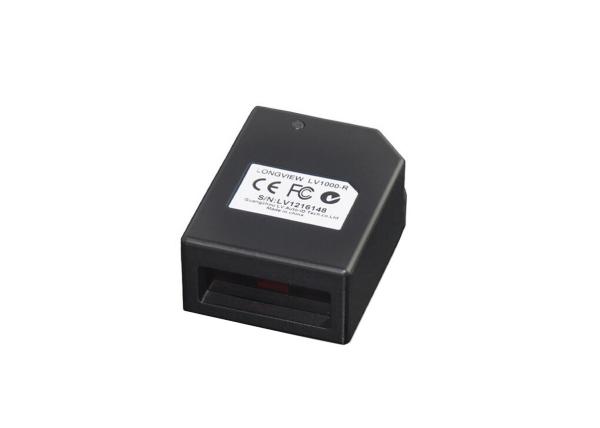

Rugged High Speed Arduino Barcode Scanner Module For Medical Devices
Rugged High Speed Arduino Barcode Scanner Module For Medical Devices
Rugged High Speed Arduino Barcode Scanner Module For Medical Devices
Rugged High Speed Arduino Barcode Scanner Module For Medical Devices
Specifications
Brand Name :
RAKINDA
Model Number :
LV1000R
Certification :
CE, RoHS
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
Western Union, T/T, paypal
Supply Ability :
1000 PCS/ week
Delivery Time :
within 5 working days after receiving the balance
Packaging Details :
barcode scanner+USB/RS232 Cable+ Power Adaptor(for RS232 only). Normal craft paper and foam.
Product name :
Rugged 1D Barcode Scanner Module
Image Sensor :
CCD
Resolution :
2500
Interface :
RS232, USB 1.1
Payment :
T/T, Western Union, Paypal
Port :
Shenzhen
Dimensions :
49.0 *37.0 * 26.0 mm
Trade term :
FOB, CIF and others we can negotiate
Description

Rugged High Speed Arduino Barcode Scanner Module For Medical Devices

LV1000R 1D barcode scanner module is IP54 with industrial encapsulates and strong light resistance, it can use in outdoors and industrial like assembly line, gas station etc. LV1000R 1D barcode scanner module is a compact long-range CCD bar code scanner with high sensitive linear image sensor. Its decode board is powered by a fast processor and to decode a wide array of 1D bar codes. The decode board is compatible with Utility, a PC-based software for easy Configuration.

How does the barcode scanner work?

Barcode scanners have to be able to read the black-and-white zebra lines on products extremely quickly and deliver that information to a computer or checkout terminal, which can identify them immediately using a product database.

For the sake of this simple example, let's assume that barcodes are simple on-off, binary patterns with each black line corresponding to a one and each white line a zero. (We've already seen that real barcodes are more sophisticated than this, but let's keep things simple.)

Scanning head shines LED or laser light onto barcode.

Light reflects back off barcode into a light-detecting electronic component called a photoelectric cell. White areas of the barcode reflect most light; black areas reflect least.

Technical Specifications of LV1000R Rugged 1D Barcode Scanner Module

Performance
Image Sensor Linear imager
Resolution 2500
Interface RS232, USB 1.1
Symbologies Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1Databar,etc.
Precision ≥ 5mil( Condition: PCS=0.9, testing code: Code 39)
Depth of Scan Field 40mm-430mm
Print Contrast Signal ≥ 30%
Sensitivity** Pitch ±65°@ 0°Roll and 0° Skew
Roll ±30°@ 0°Pitch and 0° Skew
Skew ±60°@ 0°Roll and 0° Pitch
Illumination 0 ~ 100,000 LUX
Light Source LED(622 nm - 628 nm)
Light Intensity 265 LUX (130 mm )
Mechanical/ Electrical
Power Consumption 1.25W
Voltage DC 5 V
Current Max 250 mA
Working 170mA
Idle 65mA
Dimensions 49.0 *37.0 * 26.0 mm
Weight 70 g
Environment
Operate Temperature -5°C - +45°C
Storage Temperature -40°C - +60°C
Humidity 5% - 95% (non-condensing)

Rugged High Speed Arduino Barcode Scanner Module For Medical Devices

Barcode Scanner FAQ

Q1: Can I get some samples? are they free?

A1: Of course, but samples are not free.

Q2: What's the delivery time?

A2: Depend on product and quantity of your order,sample could be sent to you in 3 work days after receiving balance.

Q3: What about payment?

A3: Payment terms: T/T,West Union and L/C etc.

Q4: Can you list the product of your company?

A4: Barcode Scanner Module, Desktop Barcode Scanner, Handheld Barcode Scanner, Portable Barcode Scanner Module, Bluetooth RFID Scanner, POS Terminal, Android Mainboard etc.

Q5: What's the OS of the POS?

A5: Android and Windows,details please refer to the technical data of the Product.

Q6: Where can we download the SDK/user manual for some of your products?

A6: SDK/User manual will be sent to you by email after the sample order.

Q7: Warranty time?

A7: 1 year

Q8: Do you provide Evaluation Kit for testing barcode scanner module?

A8: Yes, but you need to pay for EVK separately.

Q9: Product OEM?

A9: Yes, but it requiries the certain MOQ and the cost need to be added separately.

Q10: Customer service?

A10: Any questions of product after your receipt, please contact us,we'll reply you in 24 hours.
