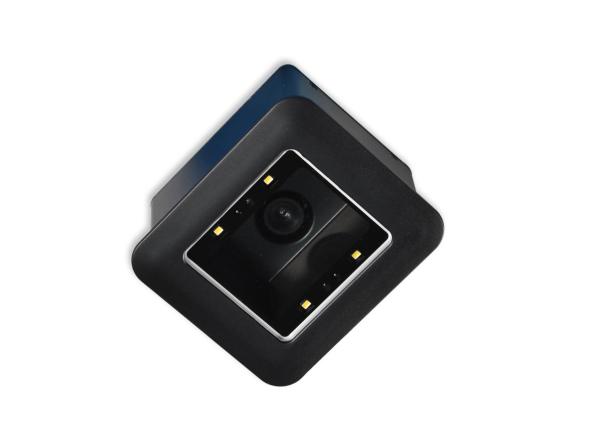

High Sensitive Small 1D 2D Barcode Engine 10Mil Resolution RS-232 Interface
High Sensitive Small 1D 2D Barcode Engine 10Mil Resolution RS-232 Interface
High Sensitive Small 1D 2D Barcode Engine 10Mil Resolution RS-232 Interface
High Sensitive Small 1D 2D Barcode Engine 10Mil Resolution RS-232 Interface
Specifications
Brand Name :
RAKINDA
Model Number :
RD4500R-02
Certification :
FCC,CE,Rosh
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
Western Union, T/T, paypal
Supply Ability :
10000 per month
Packaging Details :
17*14*7cm
Name :
kiosk barcode scanner
Processor :
IOTC 0370 CHIP
Image Sensor :
752*480 CMOS
Symbologies :
1D,2D[QR code,PDF41T,DM]
Resolution :
10mil
Scan Mode :
Sense mode
Light Source :
White LED
Scan Window :
31.5mm×46.5mm
Symbol Contrast :
30%
Interface :
RS-232, USB
Description

High Sensitive Small 1D 2D Barcode Engine 10Mil Resolution RS-232 Interface

Snappy On-screen Barcode Capture


1. Armed with Newland’s fifth-generation of UIMG technology, the scanner excels at reading on-screen barcodes even when the screen is covered with protective film or set to its lowest brightness level..


Durable Metal Housing


2. The scanner uses a durable metal housing, making it ideal for self-service applications.

Outstanding Power Efficiency
The advanced NLDC technology incorporated in the scanner helps reduce the power consumption and prolong the service life of the device.

IR Trigger

3. The IR sensor in the scanner exhibits an improved sensibility in activating the scanner to scan barcodes as they are presented. markedly increasing throughput and productivity.


High-capacity Barcode Reading Capability

4. Equipped with a sizable scan window, the scanner has the ability to scan barcodes containing large amounts of data.

Application Scenarios

5. Self-service cabinets used in e-commerce, express delivery services and smart homes; ATMs; kiosks; queue machines; lottery machines; certificate makers.

4500R 2d scanner-Specification.pdf

High Sensitive Small 1D 2D Barcode Engine 10Mil Resolution RS-232 InterfaceHigh Sensitive Small 1D 2D Barcode Engine 10Mil Resolution RS-232 Interface

LV4500 LV4500I
Performance Processor IOTC 0370 CHIP
Image Sensor 752*480 CMOS
Symbologies 2D: PDF417, Data Matrix, QR Code
1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128(FNC1, FNC2, FNC3), Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey
Resolution ≥10mil
Scan Mode Sense mode
Light Source White LED
Scan Window 31.5mm×46.5mm 38.3mm×60.4mm
Symbol Contrast ≥30%
Interface RS-232, USB
FOV Diagonal: 85°, Horizontal: 63.7°, Vertical: 70°
Physical/ Dimensions (L×W×H) 78.2*67.2*52.3mm 71*61*50mm
Electric Weight 300g 280g
Notification Beep
Max. Power Consumption 1.75W
Environmental Operating Temperature -10℃~50℃
Storage Temperature -20℃~60℃
Humidity 5%~95% (non-condensing)
Ambient Light 0 ~ 100,000 LUX
Certifications FCC Part15 Class B,CE EMC Class B
Accessories Cable USB cable: Used to connect the 4500 to a host device.
RS-232 cable: Equipped with a power connector; used to connect the 4500 to a host device.
Power Adapter Used to provide power for the 4500
Output: DC5V, 1.5A; Input: AC100~240V, 50~60Hz

Package

High Sensitive Small 1D 2D Barcode Engine 10Mil Resolution RS-232 Interface

Can barcode scanners read barcodes displayed on an iPhone or other smartphone? Why or why not?

Yes, except laser barcode scanner. Lots of barcode scanners could read barcodes displayed on an Iphone or others smartphone.
2D code is to identify the image to identify the 2D, the laser paper on the 2D is not recognized, If it is a 1D, the principle of laser recognition is through the light source and then reflect the screen itself is the light source so can not identify. also laser barcode scanner could npt read the 2D on paper.Scanner on the market to identify the screen is also identified by a linear CCD.

FAQ:

Q: What is your payment method?
A: We accept online credit card, TT, Paypal, Western Union.
Q: Can I visit your factory:
A: Yes, you are warmly welcome.
Q: How long is your warranty time:
A: 1 Year.
Q: Where can we download the user manual of the scanners?
A: We will send by email after you get samples.
Q: What's the lead time?
A: For sample, it is typically within 3 days. For bulk order, it depends on quantity and model you order.
