Embedded 1D Barcode Scanner 1500mm Cable Length for Lottery Terminal
Embedded 1D Barcode Scanner 1500mm Cable Length for Lottery Terminal
Specifications
Brand Name :
Rakinda
Model Number :
LV12
Certification :
CE FCC ROHS
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Negotiation
Payment Terms :
Western Union, T/T, paypal
Supply Ability :
1000 piece for a week
Delivery Time :
3-10 working days
Packaging Details :
package in carton;
Name :
1D Bar Code Scanner
Advantage :
CCD bar code decoding
Device Weight :
16g
MOQ :
1 piece
Package :
10 pieces to a carton
Description

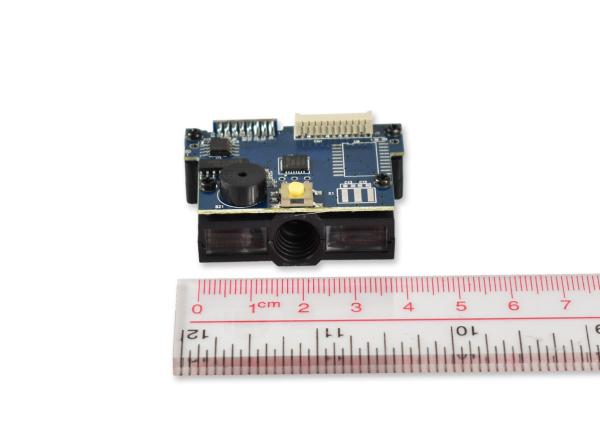

Embedded 1D Barcode Scanner 1500mm Cable Length for Lottery Terminal

Device Weight <16g
Device Dimension 32.2mm L * 44.15mm W * 20mm H
Cable Length 1500mm(optional)
Interface USB
Connector 11pin pitch 1.25
Performance parameters
Light source 632nm visible red light
Image Sensor Linear CCD Sensor
Processor ARM32-bit
Depth of field 3-70CM
Resolution ≥3mil/0.1mm@PCS90%
Print Contrast 30%PCS
Work Voltage DC 3.3-5V
Electriccurrent 110mA(work)；30mA(stand by)
Image Resolution 2500dpi
Ambient illumination 100,000Lux Max
EAN-8, EAN-13, Codabar, CODE11, CODE 39, CODE 93, CODE128,China
Post, GS1-128, GS1 Limited, GS1 Omnidirectional, UPC-A, UPC-E,
Decode Capability ISBN/ISSN, ISBT , Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, MSI,
Plessey, ITF14.
Environmental parameters
Operating Temperature -20℃ to 50℃
Storage Temperature -40℃ to 70℃
Relative humidity 5% to 95%(Non-condensing)
Drop test 1.2meter,100times
Shock resistance 10H@125RPM

The LV12 series brings the benefits of bar code scanning to a variety of OEM devices. Now Kiosks, medical instruments, diagnostic equipment, lottery terminal, vending machine and countless other applications can all be equipped with the leading-edge scanning technology and reliability. LV12 is a compact long-range CCD bar code scanning module with high sensitive liner image sensor and build in Auto-sense function. This LV12 is your best choice of CCD bar code scanning module to be suitable for your application where needs high performance, small foot-print and reliable operation. LV12 is a CCD bar code decoding capabilities.

Embedded 1D Barcode Scanner 1500mm Cable Length for Lottery Terminal


Question 1: Can I get some samples? are they free?
Answer 1: Of course, but samples are not free.
Question 2: What's the delivery time?
Answer 2: Depend on product and quantity of your order,sample sent to you in 3 work days after you payment
Question 3: What about payment?
Answer 3: Payment terms: T/T,West Union and L/C etc.
Question 4: Can you list the product of your company?
Answer 4: Barcode Scanner Module, Bluetooth RFID Scanner, POS Terminal, Android Mainboard.
Question 5: Warranty time?
Answer 5: 1 year
Question 6: Do you provide EVK for barcode scanner module?
Answer 6: Yes,but not free.
Question 7: Product OEM?
Answer 7: Yes, the cost need to be added separately.
Question 8: Customer service?
Answer 8: Any questions of product after you receipt,please contact us,we'll reply you in 24 hours.
