Lockers CCD Barcode Scanner OEM Scan Engine Wirh 11 Pin Pitch 1.25 Connector
Lockers CCD Barcode Scanner OEM Scan Engine Wirh 11 Pin Pitch 1.25 Connector
Specifications
Brand Name :
Rakinda
Model Number :
LV12
Certification :
CE FCC ROHS
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Negotiation
Payment Terms :
Western Union, T/T, paypal
Supply Ability :
1000 piece for a week
Delivery Time :
3-10 working days
Packaging Details :
package in carton;
Name :
1D Bar Code Scanner
Device Weight :
16g
Package :
10 pieces to a carton
Usage :
lockers, MCU development
Connector :
11pin pitch 1.25
Depth of field :
3-70CM
Description

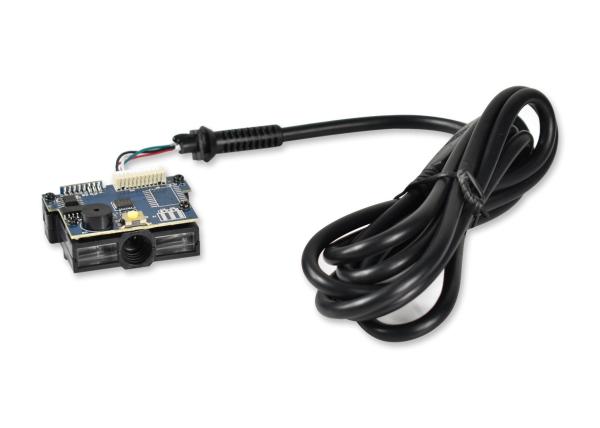

Lockers CCD Barcode Scanner OEM Scan Engine Wirh 11 Pin Pitch 1.25 Connector

1. LV12 is a sort of utilitarian embedded barcode reading engine. Applying to computerized CCD Image Recognition System, it ensures the fast scanning and decoding accuracy on popular 1D barcodes;

2. This module is specialized to be integrated into OEM equipment to provide solutions for all kinds of lockers, and medical facilities. Integrated core components guarantee the reliability and stability of the product, and decrease the rate of failure of the scanner;

3. Wide application area: apply to all kinds of lockers, MCU development and for medical and scientific research.

Device Weight <16g
Device Dimension 32.2mm L * 44.15mm W * 20mm H
Cable Length 1500mm(optional)
Interface RS232
Connector 11pin pitch 1.25
Performance parameters
Light source 632nm visible red light
Image Sensor Linear CCD Sensor
Processor ARM32-bit
Depth of field 3-70CM
Resolution ≥3mil/0.1mm@PCS90%
Print Contrast 30%PCS
Work Voltage DC 3.3-5V
Electriccurrent 110mA(work)；30mA(stand by)
Image Resolution 2500dpi
Ambient illumination 100,000Lux Max
EAN-8, EAN-13, Codabar, CODE11, CODE 39, CODE 93, CODE128,China
Post, GS1-128, GS1 Limited, GS1 Omnidirectional, UPC-A, UPC-E,
Decode Capability ISBN/ISSN, ISBT , Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, MSI,
Plessey, ITF14.
Environmental parameters
Operating Temperature -20℃ to 50℃
Storage Temperature -40℃ to 70℃
Relative humidity 5% to 95%(Non-condensing)
Drop test 1.2meter,100times
Shock resistance 10H@125RPM

Lockers CCD Barcode Scanner OEM Scan Engine Wirh 11 Pin Pitch 1.25 Connector


Question 1: Can I get some samples? are they free?
Answer 1: Of course, but samples are not free.
Question 2: What's the delivery time?
Answer 2: Depend on product and quantity of your order,sample sent to you in 3 work days after you payment
Question 3: What about payment?
Answer 3: Payment terms: T/T,West Union and L/C etc.
Question 4: Can you list the product of your company?
Answer 4: Barcode Scanner Module, Bluetooth RFID Scanner, POS Terminal, Android Mainboard.
Question 5: Warranty time?
Answer 5: 1 year
Question 6: Do you provide EVK for barcode scanner module?
Answer 6: Yes,but not free.
Question 7: Product OEM?
Answer 7: Yes, the cost need to be added separately.
Question 8: Customer service?
Answer 8: Any questions of product after you receipt,please contact us,we'll reply you in 24 hours.
