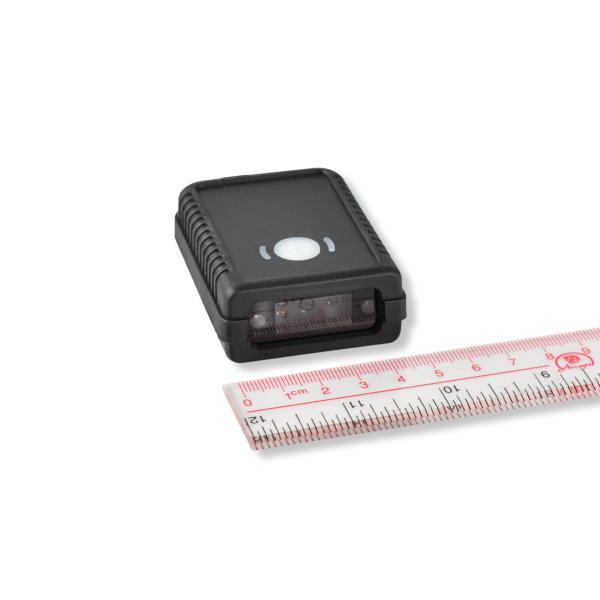

1D/2D Code Decoding Fixed Mount Barcode Reader Engine with interface USB
1D/2D Code Decoding Fixed Mount Barcode Reader Engine with interface USB
Specifications
Brand Name :
Rakinda
Model Number :
OEM Scan Engine
Certification :
CE FCC ROHS
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Negotiation
Payment Terms :
Western Union, T/T, paypal
Supply Ability :
1000 piece for a week
Delivery Time :
3-10 working days
Packaging Details :
package in carton;
Name :
Barcode Reader Engine
Light :
Red LED Light
Feature :
Fixed mount
Resolution :
≥ 5mil
Module :
LV3296R fixed mount barcode reader
Advantege :
Read the small and Intensive bar code
Description

1D/2D Code Decoding Fixed Mount Barcode Reader Engine with interface USB

Do you want to get a OEM barcode scan engine but worry about the complicated integration program which necessary if work with the TTL232 interface of a common barcode scan engine? Then here its a good news for you: we developed this new OEM 2d barcode scan engine LV3296R which output via USB or RS232 interface directly, with fixed mount, connect it with your system via USB/RS232 and just simply setting via setting codes, then its there ready to work!

1. Compact, easy to be embedded / integrated

2. USB or RS232 interface directly, no need to pay much time on system integration program

3. Support most of 1D/2D code decoding

4. With high performance processing chip inside, it is outstanding in high speed decode excellent performance in code reading from printed barcode

5. Flexible with customization

Performance Image Sensor 640×480 CMOS
Light Source Red LED 625±10 nm
Symbologies 2D PDF417, QR Code (QR1/2, Micro), Data Matrix (ECC200, ECC000,
050, 080, 100, 140), Chinese Sensible Code
1D Code128, UCC/EAN-128, AIM128, EAN-8, EAN-13, ISBN/ISSN,
UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of 5,
Industrial 25, Standard 25, Code 39, Codabar, Code 93, Code 11,
Plessey, MSI-Plessey, GS1-DataBarTM(RSS), (RSS-14, RSS-Limited,
RSS-Expand)
Resolution ≥ 5mil
Typical Depth of Field EAN-13 45mm-380mm (13mil)
Code 39 30mm-180mm (5mil)
Data Matrix 20mm-115mm (10mil)
QR Code 25mm-165mm (15mil)
PDF 417 30mm-125mm (6.67mil)
Symbol Contrast ≥ 30% reflectance difference
Scan Angle** Roll: 360°, Pitch: ±50°, Skew: ±50°
°
Field of View Horizontal 44 , Vertical 33.2 °
Mechanical/ Interface TTL-232, USB (HID-KBW, COM Port Emulation)
Electrical Operating Voltage 3.0~3.6VDC
Current@3.3VDC Operating 210mA
Standby 7mA
Dimensions 21.2(W)×14(D)×11.1(H)mm
Weight 4g
Environmenta Operating Temperature -20℃~+50℃ ( -4°F~122°F )
l Storage Temperature -40℃~+70℃ ( -4°F~158°F )
Humidity 5%~95% (non-condensing)
Ambient Light 0~100000lux (natural light)

1D/2D Code Decoding Fixed Mount Barcode Reader Engine with interface USB

Service:
Before ordering, we will provide technology consulting, operation and demonstration services and other suggention according to your application requirements.
We offer technical support to you by phone or online communication and help you solve problems such as testing, installation.
Response to your quesetion will be given within 24 working hours and your problem will be solved as soon as possible.


Q1: Warranty time?
A7: 1 year
Q2: Do you provide EVK for barcode scanner module?
A8: Yes,but not free.
Q3: Product OEM?
A9: Yes, the cost need to be added separately.
Q4: Customer service?
A10: Any questions of product after you receipt,please contact us,we'll reply you in 24 hours.

Action Now!!!

Wood Zhang
Shenzhen Longview Technology Development Co., Ltd.
Address: 5F bldg. A2, Lilang Software Park, No., 31 Bulan Rd, Longgang Dist., Shenzhen City, China
SKYPE: Wood Rakinda
