Specifications
Brand Name :
Rakinda
Model Number :
LV3096
Certification :
CE FCC Rohs
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiation
Payment Terms :
Western Union, T/T, paypal
Supply Ability :
10000 pcs/month
Delivery Time :
5-8 Working days
Packaging Details :
carton package
Image Sensor :
752×480 CMOS
Illumination :
Red LED 625±10 nm
Symbologies :
PDF 417, Data Matrix（ECC200,ECC000,050,080,100,140）, QR Code; Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5,
Reading Precision :
>=5 mil
Interface :
TTL-232, USB (optional)
Description

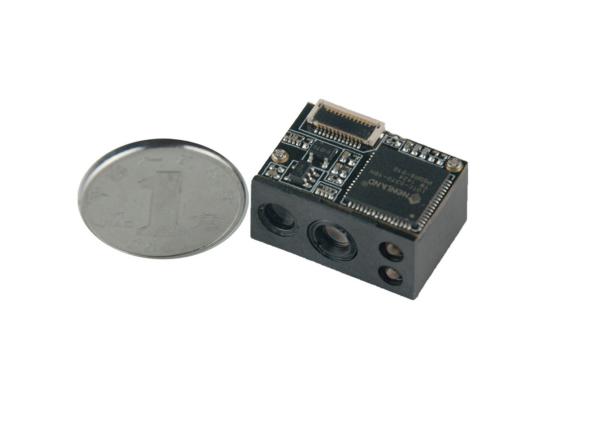

Mini 752×480 CMOS Barcode Reader Module Embedded into Handheld Device ​

Features:

This compact engine weighs only 5 grams and fits easily into even the most space-constrained equipments such as data collectors, meter readers, ticket validators and PDAs.

2D Barcode Decoder Chip: The engine armed with the state-of-the-art 2D barcode decoder chip invented by Rakinda demonstrates unprecedented reading performance.

Two-In-One Design: Seamless integration of CMOS image sensor and decoder board makes the engine small, lightweight and easy for integration.

High Performance & Ultra-Low Power Consumption: The engine can read 1D and 2D barcodes with a power consumption only one third that of a traditional engine.


All-Round Scanning Capability: It can read barcodes on virtually any medium - paper, plastic cards, mobile phones and LCD displays.

LV3096-Datasheet.pdf

Mini 752×480 CMOS Barcode Reader Module Embedded into Handheld Device

Specifications

Performance
Image Sensor 752×480 CMOS
Processor IOTC 2D decoder chip 48MHz
Illumination Red LED 625±10 nm
Symbologies 2D PDF 417, Data Matrix(ECC200,ECC000,050,080,100,140), QR Code
Symbologies 1D Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc.
Reading Precision >=5mil
Depth of Field EAN13 (13mil) 55mm - 185mm
Code 39 (5mil) 55mm - 100mm
PDF 417 (6.67mil) 40mm - 130mm
Data Matrix (10mil) 40mm - 135mm
QR Code (15mil) 40mm - 160mm
Symbol Contrast >=30% reflectance difference
Scan Angle** Roll: 360°, Pitch: ±55°, Skew: ±55°
Field of View Horizontal 36°; Vertical 23°
Mechanical/Electrical
Interface TTL-232, USB (optional)
Rated Power Consumption 0.76 W
Operating Voltage 3.3±10% VDC

Current @ 3.3 VDC

Operating Current

 230 mA
Standby Current 4mA (USB communication not supported); 7mA (USB communication supported)
Sleep Current <5 uA
Dimensions 21.17(W)×14.6(D)×11.52(H)mm
Weight 5.0g
Environmental
Operating Temperature -20℃~ +60℃
Storage Temperature -40℃~ +80℃
Humidity 5% ~ 95% (non-condensing)
Ambient Light 0 ~ 100000 lux (natural light)
Certifications CE FCC, Rohs
Accessories
EVK Software development board, equipped with a trigger button, beeper and RS-232 & USB interfaces.
Cable
RS-232 Cable Used to connect the EVK to a host device; equipped with a power connector.
USB Cable Used to connect the EVK to a host device.
Power Adaptor
Power Adaptor Used to provide power for the NLS-EVK3000.
Output: DC5V, 2A; Input: AC100~240V, 50~60Hz
* Test conditions: T=23℃, Illumination=300 LUX
** Test conditions:
Code 39, 3 Bytes; Resolution=10mil; W:N=3:1; PCS=0.8; Barcode Height=11mm; Scan Distance=120mm, T=23℃, Illumination=300 LUX
