Specifications
Brand Name :
Rakinda
Model Number :
LV3000R 2D Scan Engine
Certification :
CE FCC ROHS
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Negotiation
Payment Terms :
Western Union, T/T, paypal
Supply Ability :
1000 piece for a week
Delivery Time :
3-10 working days
Packaging Details :
package in carton;
Name :
Embedded 1D / 2D Barcode Scanner
Inerface :
RS232
Dimensions :
49.0 *37.0 * 26.0 mm
Weight :
70 g
Operating Temperature :
-20°C - +80°C
Main Payment :
T/T
Description

Fixed Mount 1D / 2D Barcode Scanner Module With High Performance Processing Chip


With high performance processing chip inside, outstanding for reading QR code and others 1D/2D bar codes from phone screen, such as Iphone, ipad, laptop and others devices, readable from paper, too

Note:
1. The scan window must be kept clean. Improper maintenance will breach the limited warranty;
2. Avoid rough objects not to damage or scratch the window;
3. Use brush to remove the stain;
4. Use soft cloth (Cloth for grass) to clean;
5. Prohibit spraying towards the window;
6. Only use clean water as a cleanser.


ModelLV3000R fixed bar code reader

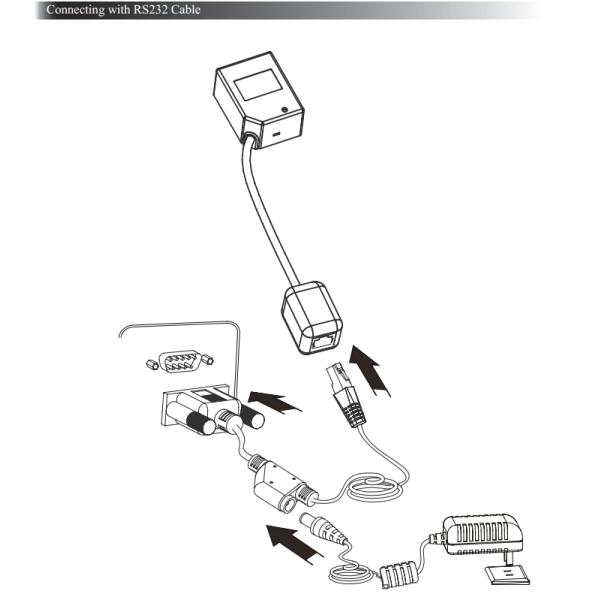

Interface RS232
Scan RateUp to 200 scans/sec
Image SensorCMOS
Decode Rate200 scans/sec
Resolution5mil
Light Source LED(617.5 nm – 633.5 nm)
CMOS Acquisition60 fps
Depth of scan field40mm-430mm
Print Contrast Signal ≥30%
Power Consumption1.75W(max)
Notification Beep
Dimensions 49.0 *37.0 * 26.0 mm
Weight 70 g
Operating Temperature-20°C - +80°C
Humidity5% - 95% (non-condensing)
CertificatesFCC Part15 Class B, CE EMC Class B


Fixed Mount 1D / 2D Barcode Scanner Module With High Performance Processing Chip


OUR CORPORATE
shenzhen LongView Technology Co.Ltd is committed to developing barc ode products and its
technology as the core of the automatic recognition system integration. We are a professional and high-tech enterprise specializing in the R&D, production, sale and service of automatic identification products,with many years of experience in handling projects and an excellent reputation.We have branches in Guangzhou Hong Kong , Shenzhen , Beijing,Shanghai,Suzhou,and skillful, experienced and innovative R&D team and reliable after sales technical support service team.

Question 1: Can I get some samples? are they free?
Answer 1: Of course, but samples are not free.
Question 2: What's the delivery time?
Answer 2: Depend on product and quantity of your order,sample sent to you in 3 work days after you payment
Question 3: What about payment?
Answer 3: Payment terms: T/T,West Union and L/C etc.
Question 4: Can you list the product of your company?
Answer 4: B arcode Scanner Module, Bluetooth RFID Scanner, POS Terminal, Android Mainboard.
Question 5: What's the OS of the POS?
Answer 5: Android and Windows,details please refer to the technical data of the Product.
Question 6: Where can we download the SDK/user manual for some of your products?
Answer 6: SDK/User manual will be sent to you by email after the sample order.
Question 7: Warranty time?
Answer 7: 1 year
Question 8: Do you provide EVK for barcode scanner module?
Answer 8: Yes,but not free.
Question 9: Product OEM?
Answer 9: Yes, the cost need to be added separately.
Question 10: Customer service?
Answer 10: Any questions of product after you receipt,please contact us,we'll reply you in 24 hours.
