Handheld Industrial DPM Barcode Scanner
Handheld Industrial DPM Barcode Scanner
Handheld Industrial DPM Barcode Scanner
Handheld Industrial DPM Barcode Scanner
Handheld Industrial DPM Barcode Scanner
Handheld Industrial DPM Barcode Scanner
Specifications
Brand Name :
Rakinda
Model Number :
S2-2
Certification :
CE FCC ROHS
Place of Origin :
China
MOQ :
1pcs
Supply Ability :
100pcs per week
Packaging Details :
1pcs/box
Resolution :
1280 Pixels(H) x 1024 Pixels(V)
Reading accuracy :
1D : ≥3 mil ; 2D : ≥5 mil
Field of view :
Level 41° (H)，Plumb 35° (V);
Weight :
150g
Storage temperature :
-40℃~+70℃
Description

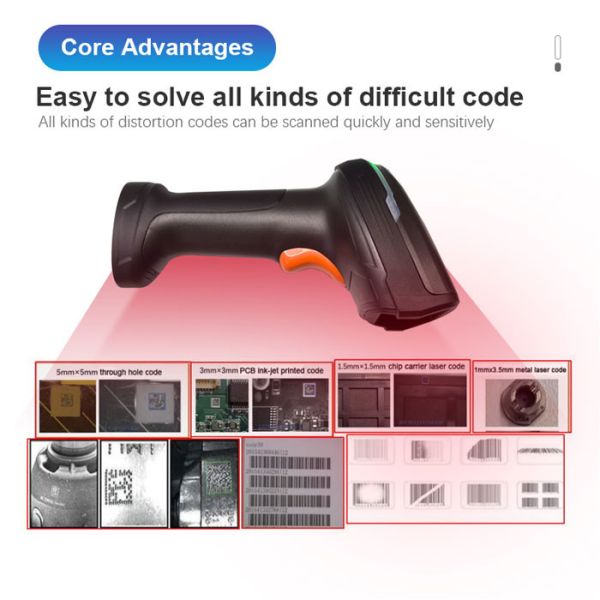

A handheld industrial Direct Part Marking (DPM) barcode scanner is a specialized device designed to read and decode barcodes that are marked directly on an item. DPM barcodes are often used in industrial settings where traditional paper or label-based barcodes may not be suitable due to factors like durability requirements, harsh environments, or small item sizes.

There are two series of 1.3 million pixels:

S2-1: High-performance barcode reading equipment with 130-pixel global shutter, specially designed for reading printed barcodes. It is good at reading high-density barcodes, dirty, defective, low contrast barcodes, etc. The scanning distance is long, the code scanning fluency is high, and it can be compatible with small barcodes at close range at the same time, and has good versatility.

S2-2: Designed for higher density or smaller DPM codes, and can adapt to more complex object surface environments, and can also recognize various types of DPMs with less than ideal recording quality. S2-2 loads the company's most powerful industrial decoding algorithm, with deep AI algorithm learning, to ensure that all kinds of DPM barcodes can be read smoothly.

Product Parameters

Parameters
Scanning performance Resolution 1280 Pixels(H) x 1024 Pixels(V)
Illumination White light
Focus S2-1 Green strip； S2-2 Red strip
Reading mode Key scanning, Automatic induction scanning
Decode Capabilities 1D

UPC A , UPC E , EAN 8 , EAN 13 , Code 128 , Code 39 , Code 93

Code 32 , Code11 , Codabar ,Plessey , MSI , Interleaved 2 of 5 ,

IATA 2 of 5 , Matrix 2 of 5 , Straight 2 of 5 , Pharmacode , RSS-14 ,

RSS-14 Expanded , RSS-14 Limited Composite Code-A ,

Composite Code-B , Composite Code-C
2D Data Matrix , QR Code , Micro QR , PDF 417 , Micro PDF 417,Aztec, Maxicode
Reading accuracy 1D : ≥3 mil ; 2D : ≥5 mil
Typical Depth of Field Model S2-1 S2-2
Code 39 (3mil) 55mm~150mm 40mm~70mm
Code 39 (5mil) 45mm~250mm 30mm~100mm
Data Matrix (5mil) 40mm~60mm 40mm~70mm
100%UPCA (13mil) 40mm~500mm 30mm~100mm
Field of view Level 41° (H),Plumb 35° (V);
Print contrast ≥20%(UPC/EAN 100% , PCS 90%)
Dimension Physical dimension 181x 102 x 77 mm
Electrical parameters Weight 150g (cable not included)
Communication interface USB ,RS-232,Virtual COM Port
Data cable length Straighten 2 meters
Prompt way Buzzer,LED Indicator light, Vibration motor
Operating Voltage DC 5V±5%
Working current 300 mA ±5%(Typical value), 400 mA ±5%(Maximum value)
Stand-by current 100 mA ±5%
Environmental parameters Operating temperature -20℃~+50℃
Storage temperature -40℃~+70℃
Relative humidity 5%~95%(no condensation)
Static Protection ±12 kV(Air discharge),±8 kV (Direct discharge)
Drop height 1.8m
Degree of protection IP65
Regulatory FCC Part15 Class B,CE,EMC Class B

Handheld Industrial DPM Barcode ScannerHandheld Industrial DPM Barcode ScannerHandheld Industrial DPM Barcode ScannerHandheld Industrial DPM Barcode Scanner
